16″/20″/24″/26″/27.5″/28″/29″/700C Rear Wheel E Bike Cassette Motor Conversion Kit 48V 1000W/1500W Electric Bicycle Motor Kit Electric Motor Bike Kit for Bicycle Rear Wheel

Price: $415.92
(as of Mar 17, 2025 08:38:45 UTC – Details)

✘ Tired of pedaling for hours every day and feeling exhausted?

✔ We provide you with the right equipment. Easily convert your bike to an e-bike with our conversion kit. An integrated fuse always protects the motor.

♦ About this product:

If you don’t know how to install the kit, please ask your bike shop for help, or if the kit doesn’t work, please feel free to contact us and we will try our best to solve the problem within 24 hours.

♦ Features:

1. The Assist Sensor (PAS) allows you to drive without throttle response. You can operate your e-bike however you want. Avoid uncomfortable wrist position during long-distance riding and pedal smoothly anytime and anywhere.
2. Using brushless reduction motor, it is light weight, low noise, stable operation and long service life. You can easily cross any difficult terrain while enjoying the journey to your destination.for daily use, commuting to work and long distance travel.
3. The maximum driving load capacity is 150-250 kg. Double-walled alloy wheels feature reinforced stainless steel spokes for added tension. The maximum speed can reach 32-38km/h, and the efficiency is ≥80%. Once the brakes are applied, effective braking force is produced.

♦ Frequently Asked Questions:

(1) Make sure the motor and controller are firmly connected.
(2) The installation distance of the pedal assist device is approximately 5mm.
(3) Make sure the inner core of each connector is not damaged/broken/bent.
(4) The wiring between the controller end and the motor end must be firmly connected.

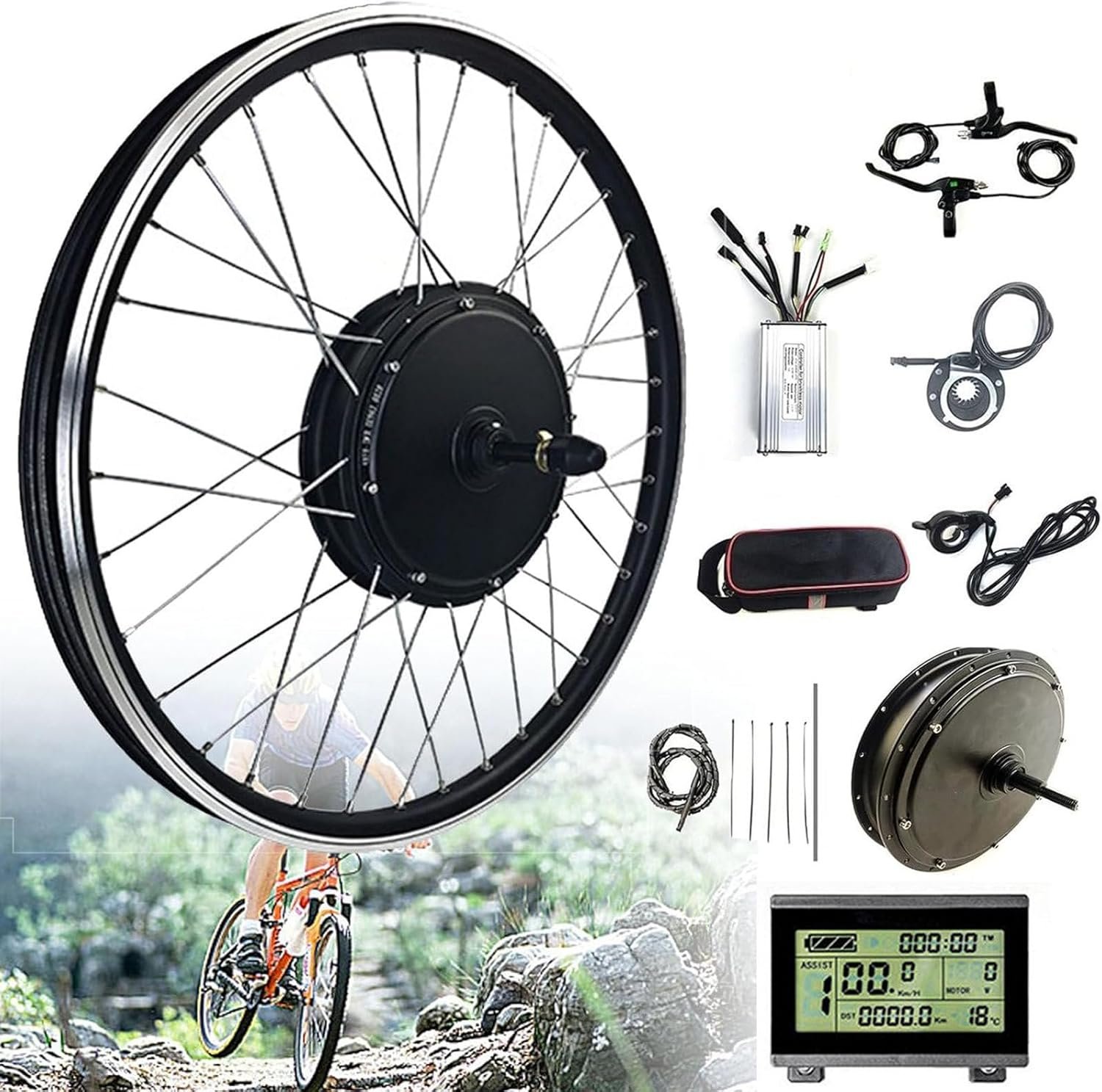

✔Package included (excluding lithium battery):

1. Motor rim x1
2.Controller x1
3.Monitor x1
4. Throttle x1
5. Electronic brake x1
6.PAS sensor x1
7. Brake sensor x1
8. Motor adapter cable
9.Controller package x1
♦【Electric Bike Conversion Kit】: Convert your bike to an electric bike easily. The conversion kit comes ready to install, with the aluminum double-wall rims and hub motor already connected. All you have to do is transfer the original tires to the e-bike conversion kit.
♦【Powerful Motor】: 1000W powerful brushless reduction motor, maximum speed 35-45km/h, 48V1500W powerful brushless reduction motor, maximum speed 44-55km/h, low noise during operation, front fork opening size is 100mm, which will Provide you with strong forward momentum. The maximum load capacity of electric bicycles is 150-250 kg.

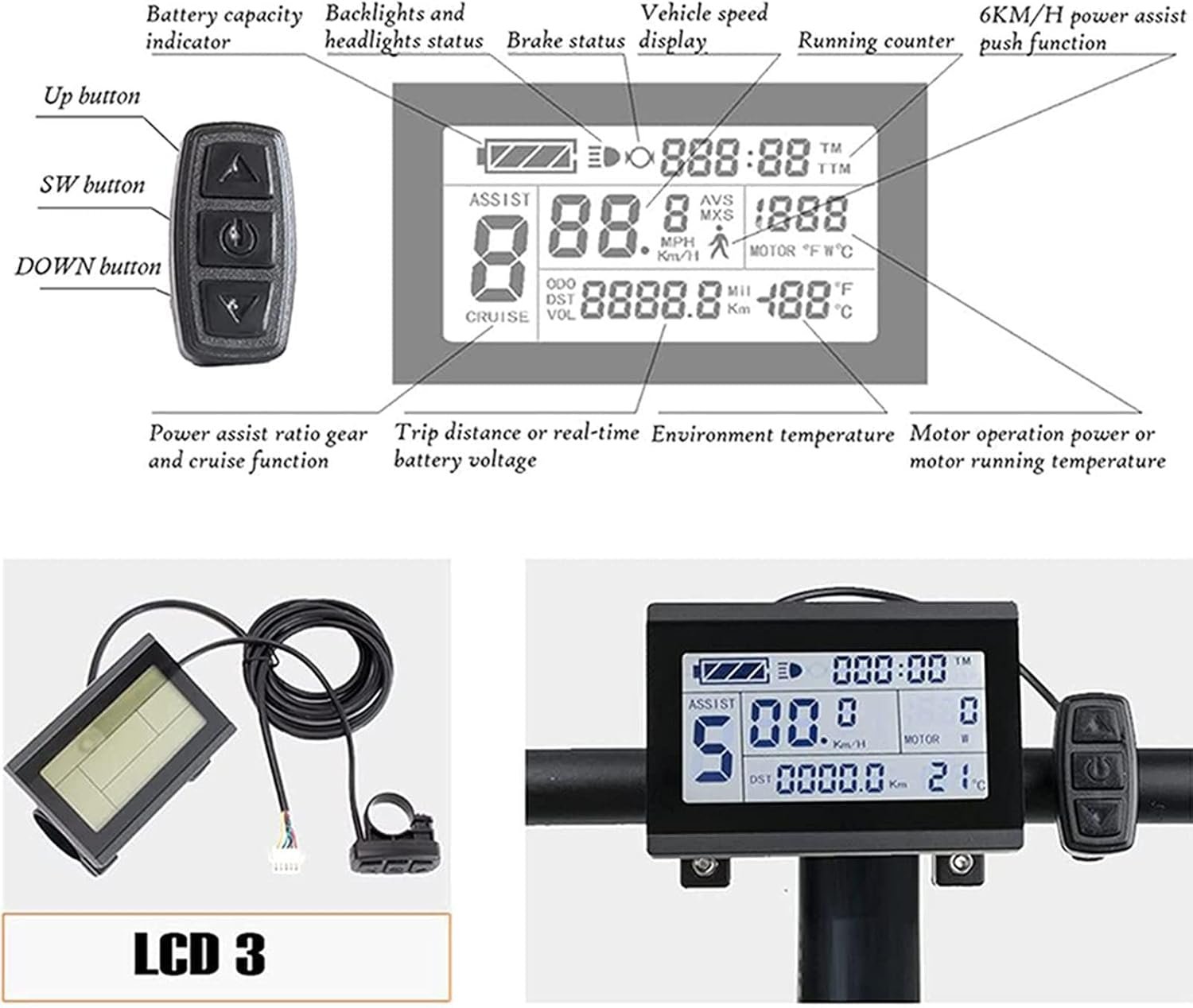

♦【LCD Display】: Upgrade your electric bike conversion kit to an LCD display. It displays all the basic information such as battery percentage, speed, total trip distance, power, PAS level and error codes for easy troubleshooting.
♦【Installation Notes】: Our products do not contain lithium batteries, and the power and voltage of the battery you purchase must correspond to our settings. Conversion kit fits 16/20/24/26/27.5/28/29/700c inch wheels, suitable for most bicycles, city bikes, mountain bikes, touring bikes and commuter bikes.

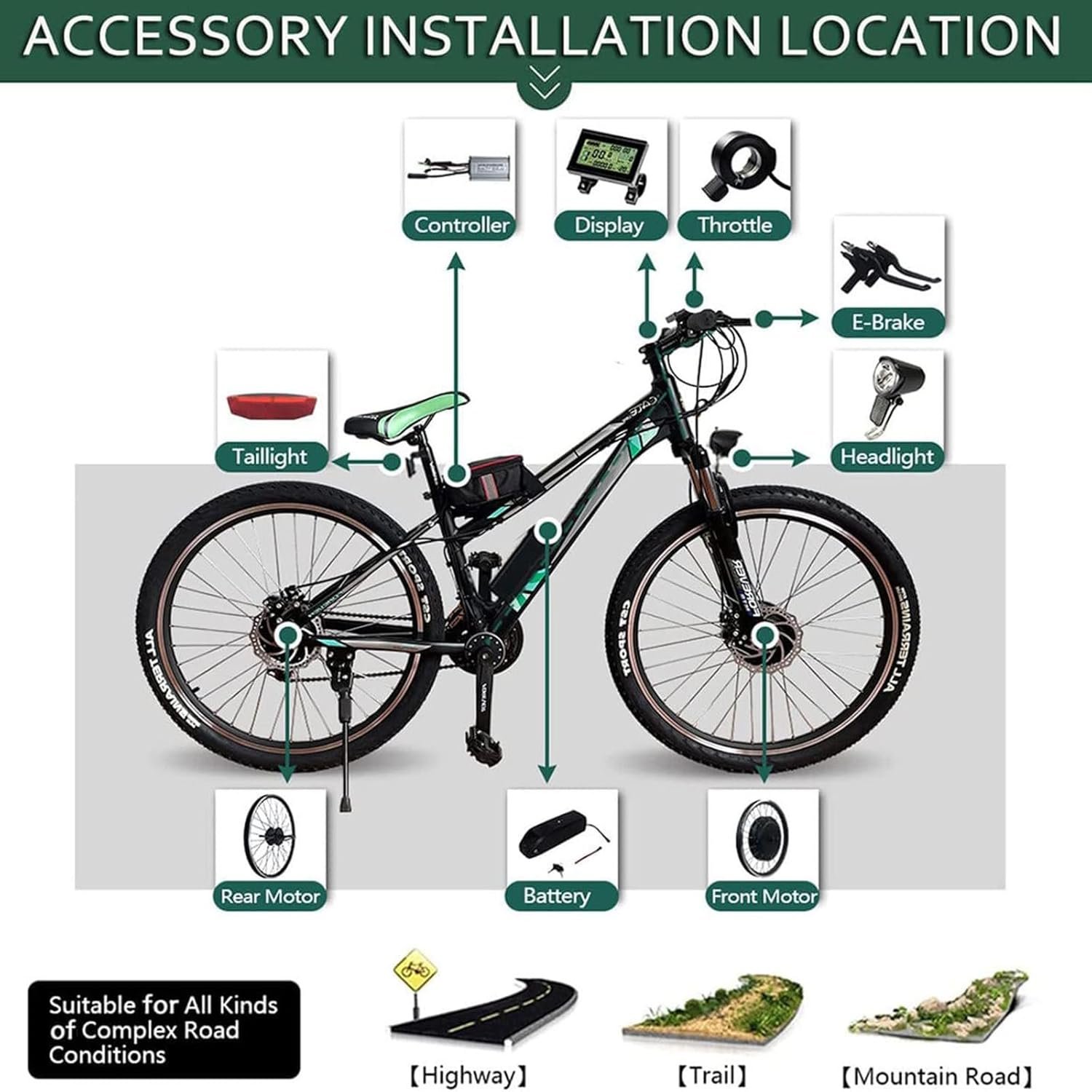

♦【Package Contents】: The electric bicycle conversion kit includes all components needed for installation: hub motor, controller, display, throttle, brake lever, pedal assist system, torque arm and cable ties, etc. We will provide you with the controller package for free! We put installation instructions inside the package.
