24V 350W DC Brush Speed Motor Controller and Throttle Grip for Electric Scooter Bicycle E-Bike Tricycle

Price: $27.69
(as of Jun 18, 2025 07:31:03 UTC – Details)

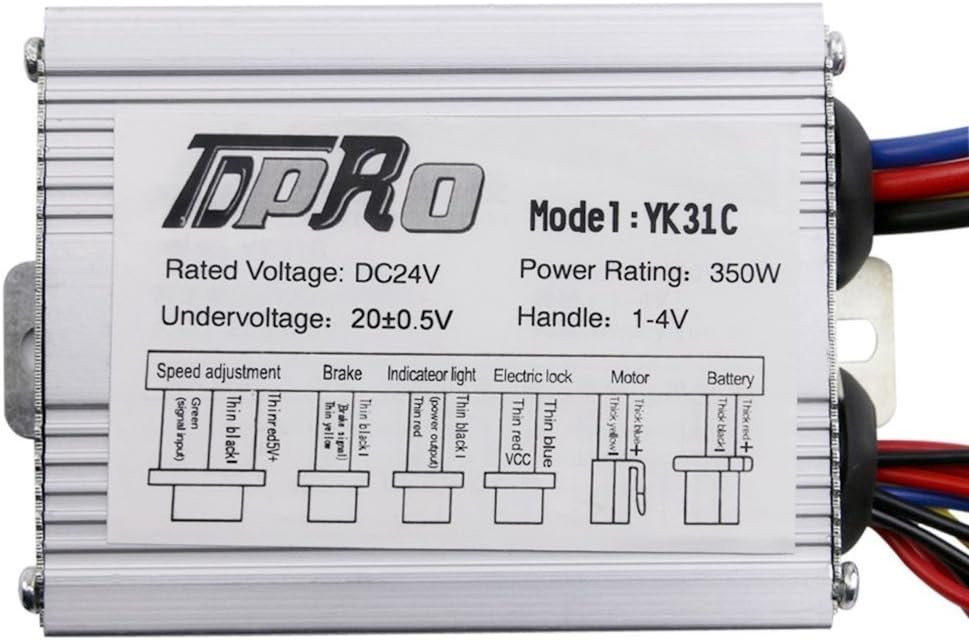

Controller:
Rated voltage: 24V DC
Match motor: 24V 350W
Conversion efficency: 95%
Under Voltage Protection: 20±0.5V
Speed regulator (throttle): 1-4 V

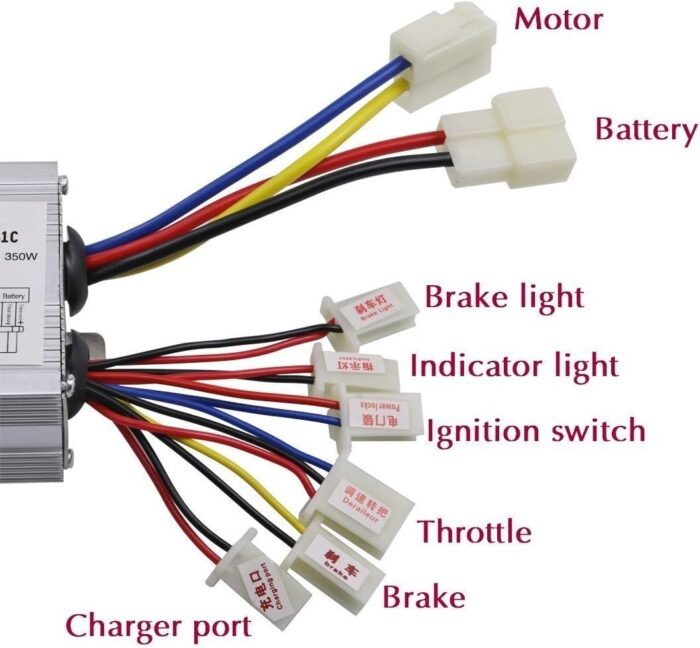

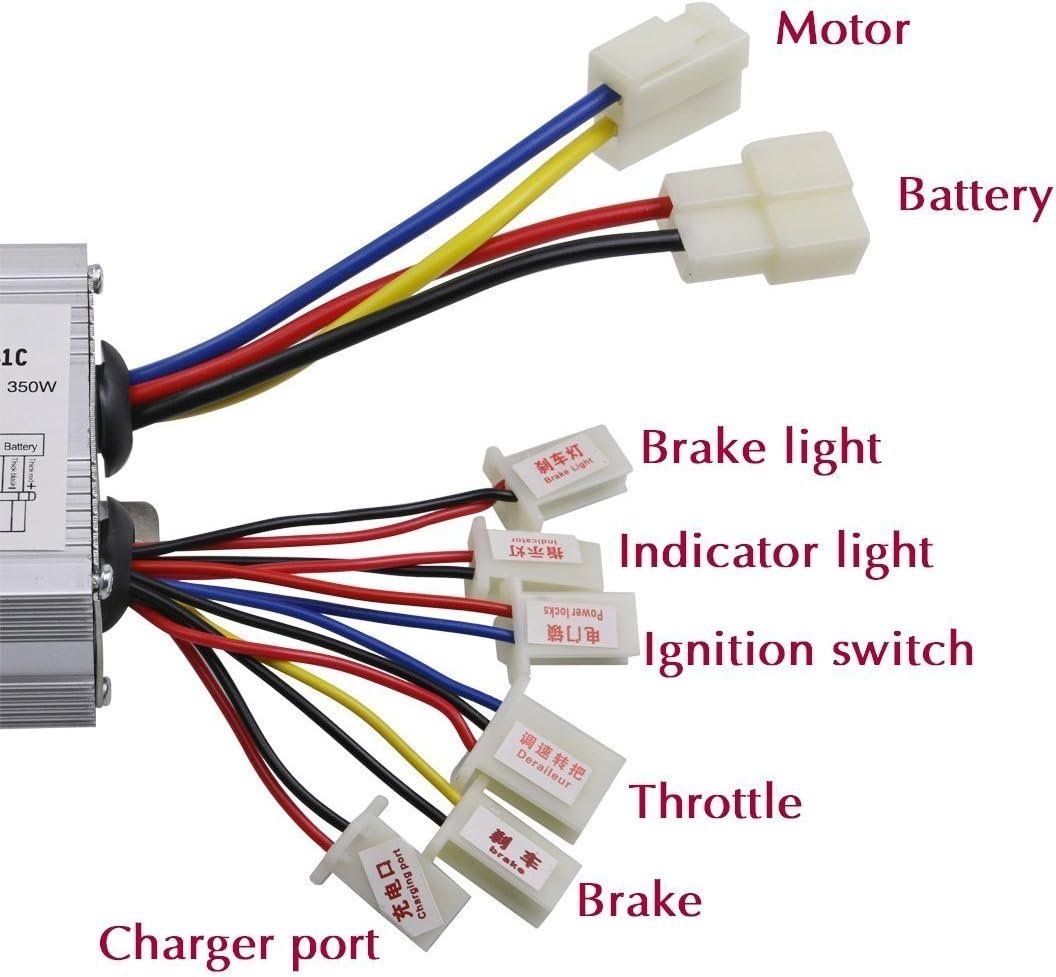

Wiring:
This controller has 8 connectors, compatible with many 24V bikes with up to 350W motors
1. Battery / 2. Motor / 3. Brake / 4. Brake light / 5. Indicator light / 6. Ignition lock / 7. Charger port / 8. Derailleur (throttle)
These controllers have 4 groups neccessary cables: Battery, Motor, Ignition lock, Derailleur (throttle), when hook up these 4 groups cables, the E-bike can run normally.
Besides, this controller have other optional functions, you can hook them up according to your applications.


Available Model (SPEC):
24v 250w / 24v 350w / 24v 500w / 36v 350w / 36v 500w / 36v 800w / 48v 100w

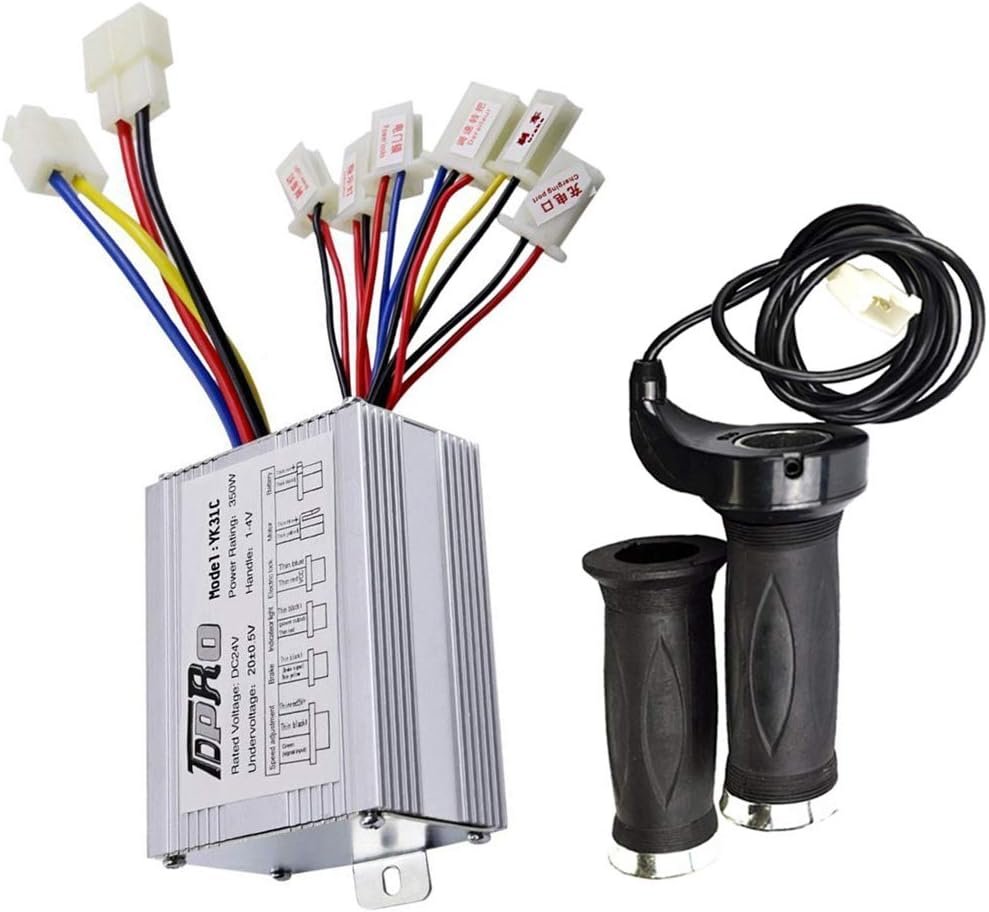

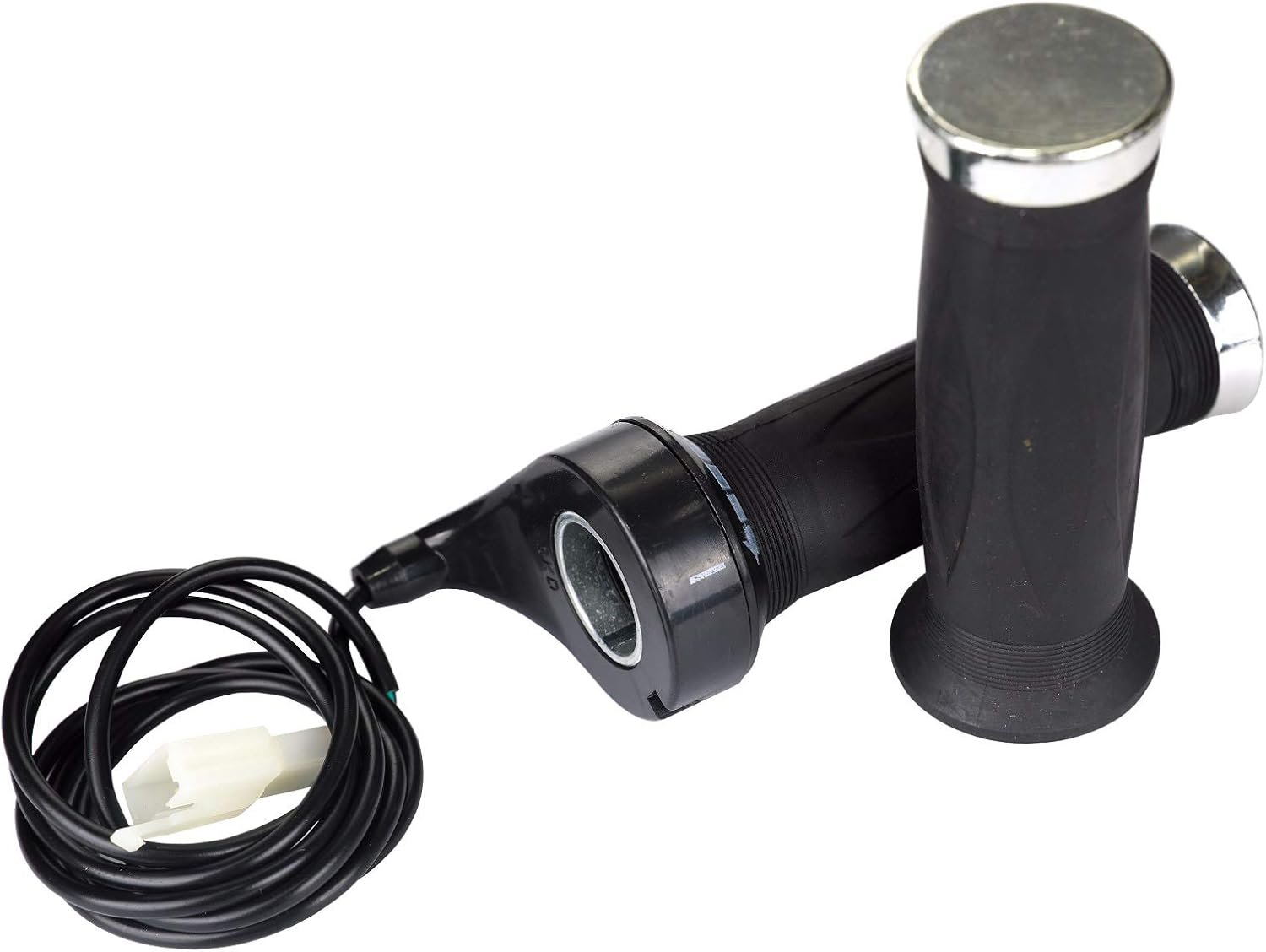

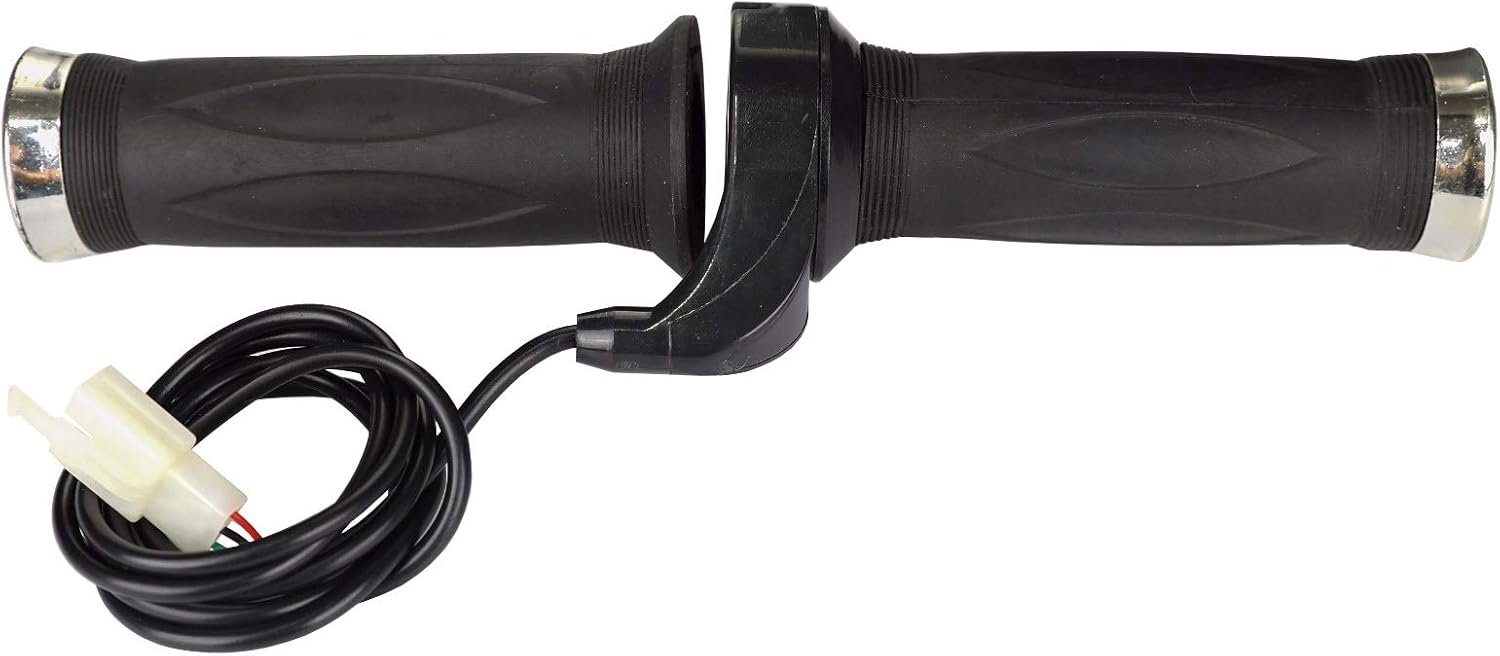

Package includes: 1x Controller + 1x Throttle Grip
Fit for 24V 350W brushed motor
Controller adaptors waterproof design
Suitable for electric scooter, e-bike, tricycle, mini bike, pocket bike, go kart, atv, moped
Refer to picture and below “Product Description” for wiring instruction and specifications
