26 inch Ebike Conversion kit 48V500W Rear Front Motor Wheel with 48V13Ah Battery Fit for 6S 7S 8S 9S 10S Cassette Screwed Brushless Motor Kit

Price: $399.89
(as of Apr 07, 2025 09:21:25 UTC – Details)

Product Description

Yose Power,Yours Power

YOSE POWER,a professional manufacturer for ebike lithium battery also supplier for ebikes’ whole set of power system since 2011.Our goal is to provide professional ebike power system with low factory price and conveniently local service,make customer all in love with riding an e-bike.All USA customer order will be shipped out from local USA warehouse within 2 working days,also provide service center in USA too.

YOSE POWER Rear Motor Wheel 26 inch 48V500W ebike conversation kit (Screwed style) with 48V13Ah Battery

48V500W Rear Motor, Installation Width=138mm, Diameter=166mm.

Gearshift: Screwed Freewheel(6S/7S/8S/9S)

12G black spokes with double wall 26″ rim

Max Speed: 40km/h

Max Torque:67N.m

Color:Black

Brake:Disc/V

Motor Cable:70cm W/O connector,Julet brand(quick release waterproof connector)

Integrated Controller:Sine wave controller,JYT brand,Low voltage protection: 39V, Rated current: 10A, Max. current: 20A. Waterproof connecters: motor, PAS sensor, and 4 in 1 cable. 48V13Ah Hailong battery: controller inside,with 30A BMS,Charging Fuse 10A and Discharging Fuse 50A,Long Life 1000+cycles,High Power cells With Power Switch,USB port,Safety lock,LED Battery Level Light LED display:LED display with speed/PAS/battery indicator; Cable: 30cm W/O connector. 5 Assist levels, and 6km/h traction with holding Down Button; IP65; Size: L58mm*W28mm*H44mm PAS Sensor(Left installation):Cable:53cm W/O connector 8 signals output Model: BZ-4(8) Brake Lever:Wuxing Brand, with immediate interruption of the power. Cable:30cm W/O connector. Throttle:Wuxing Brand,Thumb throttle. Cable:30cm W/O connector. Waterproof Connection cable (4 in 1):4 in 1 waterproof connectors(quick release) Cable:150cm W/O connectors.

Specifications

1. Rear motor with 26″wheel for Screwed Freewheel(6S/7S/8S/9S)

48V 500W, installation width: 138mm, diameter: 166mm

12G black spokes with double wall 26″ rim

Top speed (on gas): 40km/h

Max. torque: 67N.m

Color: black

Brake:Disc/V

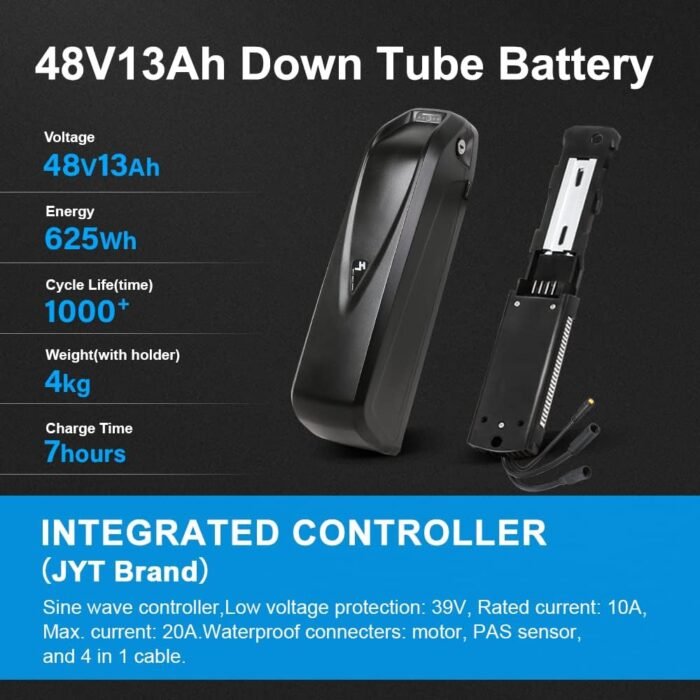

2. 48V 13Ah battery : down tube battery, high power Cell(13S5P), with 54.6V2A charger

3. Integrated controller x 1:Sine wave controller,JYT brand,Low voltage protection: 39V, Rated current: 10A, Max. current: 20A.

Waterproof connectors: motor, PAS sensor, and 4 in 1 cableLED Display

4. 3.5″ LED display: LED display with speed/PAS/battery indicator; Cable: 30cm W/O connector.5 Assist levels, and 6km/h traction with holding Down Button; IP65; Size:L58mm*W28mm*H44mm

5.PAS Sensor(Left installation):Cable:53cm W/O connector 8 signals output,Model: BZ-4(8)

6.Brake lever (Wuxing brand) : with immediate interruption of the power.Cable:30cm W/O connector.

7.Thumb Throttle (Wuxing Brand): Cable:30cm W/O connector.

8.Waterproof Connection cable (4 in 1): 4 in 1 waterproof connectors(quick release)

Cable:150cm W/O connectors.

Warm Tips:

1.The Motor Kit does not fit for “HOLLOWTECH II” and Hydraulic Brake. (You can purchase the HOLLOWTECH II sensor and the oil brake sensor separately.)

2.The package cannot be delivered to the island.

3.Before you send the goods back, please feel free let us know,so that we can handle your problem in time.

UL standard2271

Add to Cart

Add to Cart

Add to Cart

Customer Reviews

4.7 out of 5 stars 3

4.2 out of 5 stars 4

4.2 out of 5 stars 17

—

4.0 out of 5 stars 6

Price

— no data $225.99$225.99 $379.79$379.79
— no data $339.30$339.30

Voltage
48V 36V 48V 48V 48V

Capacity
14Ah 13Ah 14Ah 17Ah 20.8Ah

Energy
672Wh 481Wh 672Wh 816Wh 998Wh

Charger
Without charger 42V2A Withour charger 54.6V2A 54.6V3A

BMS
20A 20A 20A 30A 40A

Cassette Style 48V500W AKM Brushless gear motor for 26inch rear wheel ,maximum torque 67 N.m, maximum speed 40 km per hour (LED display can set the maximum speed).It’s ok for Disc and V brake bike and suit for 8S 9S 10S freewheel.Easily DIY your bicycle to an powerful electric bike 48V500W. Ebike Conversion Kit is ready to install with an aluminum double-walled rim and hub motor already attached.The wheel suit for 1.75in-1.95in tire.

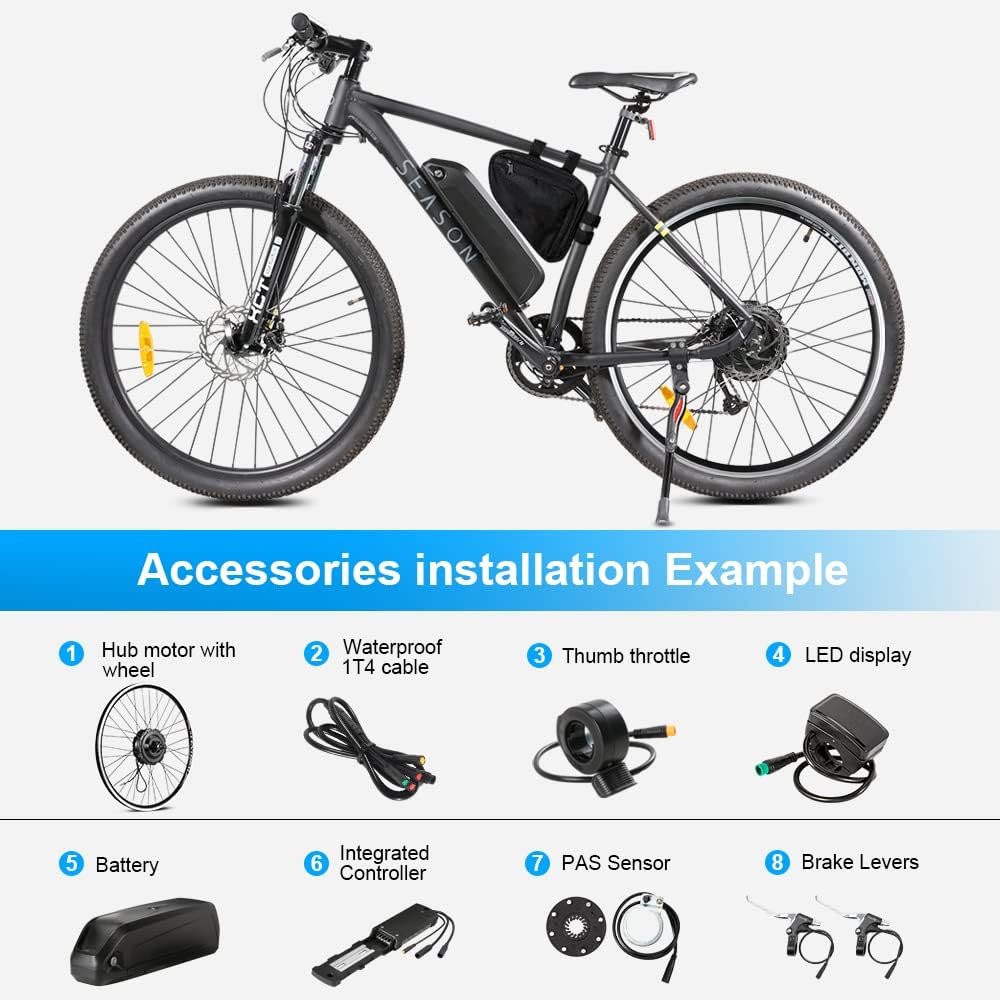

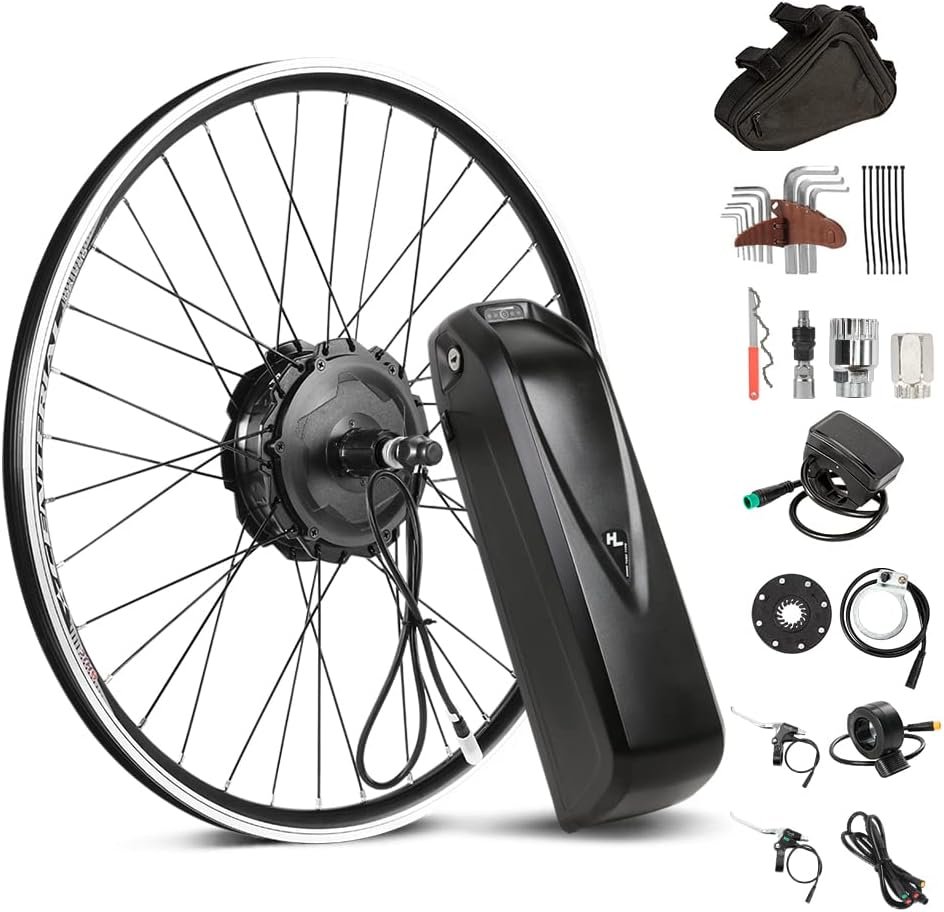

Ebike Conversion Kit include all necessary components for installation; the wheel hub motor,ebike battery, integrated controller which inside the battery holder base, display, throttle, brake levers, pedal-assist system, and cables. Please note that in this Electric Bike Kit, THE TIRE ARE NOT INCLUDED!
Upgrade your ebike with the LED Display in the conversion kit. It shows all the essential information such as left battery capacity, speed, trip distance, PAS levels, and error codes for easier troubleshooting.
Continue to pedal: Pedal Assist Sensor (PAS) allows you to ride your electric bike kit without a throttle response. You may operate your electric bicycle either way.
Battery deta:48V13Ah Capacity with 30A BMS protect,parcel include 1pc battery,1pc battery integrated controller holder base,2pcs keys,1pc charger,1pc extra charging fuse 10A,1pc extra discharging fuse 50A.
18Months warranty time for battery cells and motor. All other components are under 12months warranty.All our batteries and kits accept return back and refund within 30 working days if you have any product problems.If you want to return back,please contact our service firstly before shipping out.We will handle in time.All messages can be replied within 8 hours
Detail deta:48V500W Rear Motor, Installation Width=138mm, Diameter=166mm.Gearshift: Fit for Cassette Freewheel(8S/9S/10S),12G black spokes with double wall 26″ rim,Max Speed: 40km/h,Max Torque:67N.m,Color:Black,Brake:Disc/V,Motor Cable:70cm W/O connector,Julet brand(quick release waterproof connector);
Controller:Sine wave controller,JYT brand,Low voltage protection: 39V, Rated current: 10A, Max. current: 20A.Waterproof connecters: motor, PAS sensor, and 4 in 1 cable.LED display with speed/PAS/battery indicator; Cable: 30cm W/O connector.5 Assist levels, and 6km/h traction with holding Down Button; IP65; Size: L58mm*W28mm*H44mm,Model: DZ40;PAS Sensor(Left installation),Cable:53cm W/O connector,8 signals outputModel: BZ-4(8)
