36V/48V 1200W E-Bike Brushless Controller Kit, E- Dual Drive Motor Brushless Controller with LCD Colour On-Screen Display, Thumb Speed Throttle for E-Bike Scooter

Price: $53.00
(as of Feb 19, 2025 02:07:32 UTC – Details)

Details
Pedal Assistant Sensor: It senses the rhythm of the pedal and adjusts the speed of the motor accordingly. This helps on long trips and avoids wrist pain caused by constant pressure.
Meter Bracket: You can put the LCD meter on the bracket for easy storage and viewing the display on the meter. It is suitable for 31.8mm handlebars, and can be applied to 21mm/22mm/23mm/24mm handlebars with a rubber ring.
Specification
Model: NC3630
Color: Black
Material: Aluminium Alloy
Style: Modern
Voltage: DC 36/48V
Matchable Motor Power: 750-1200W
Current: 30±1A
Meter Type: LCD
Instrument Display: Real-time Speed, Maximum Speed, Average Speed, Total Mileage, Single Mileage, Battery Power Display, Assist Gear/Speed Grading, Cruise Control
Net Weight: 0.9kg/1.9lbs
Gross Weight: 1kg/2.2lbs
Package Size: 20*20*5cm/7*7*2inch
Controller Size: 212*115*55mm/8.3*4.5*2inch
LCD Meter Size (L*W): 68*96mm/2.6*3.7inch
Suitable Handbar Size: 21mm/0.83in, 22mm/0.87in, 23mm/0.9in, 24mm/0.94in, 31.8mm/1.25in
Different Cable For Different Uses
Red: Power Input
Yellow: Power Output
Blue: Signal Transmission
Green: Signal Reception
Black: Power Negative

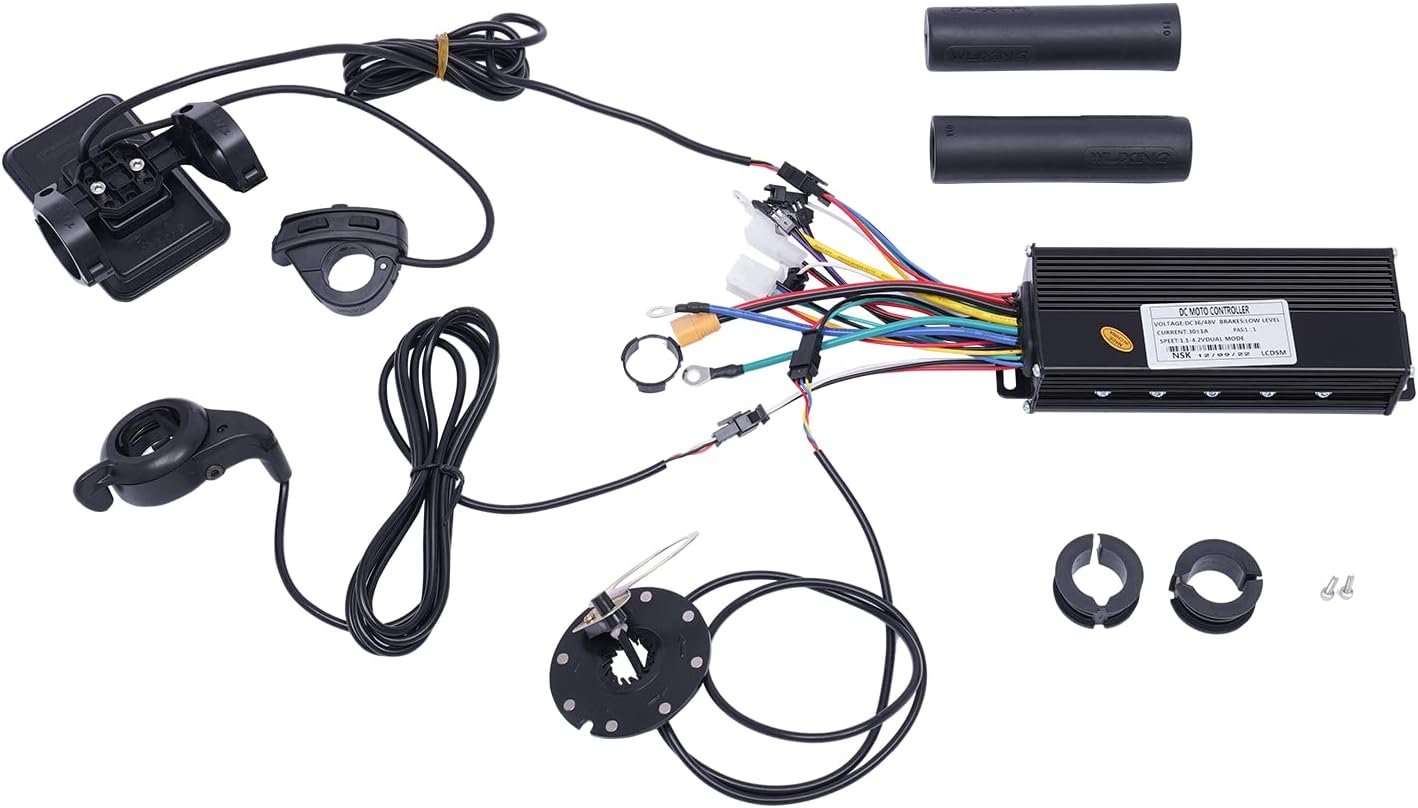

Package Included
1* Color Screen LCD Meter Bracket

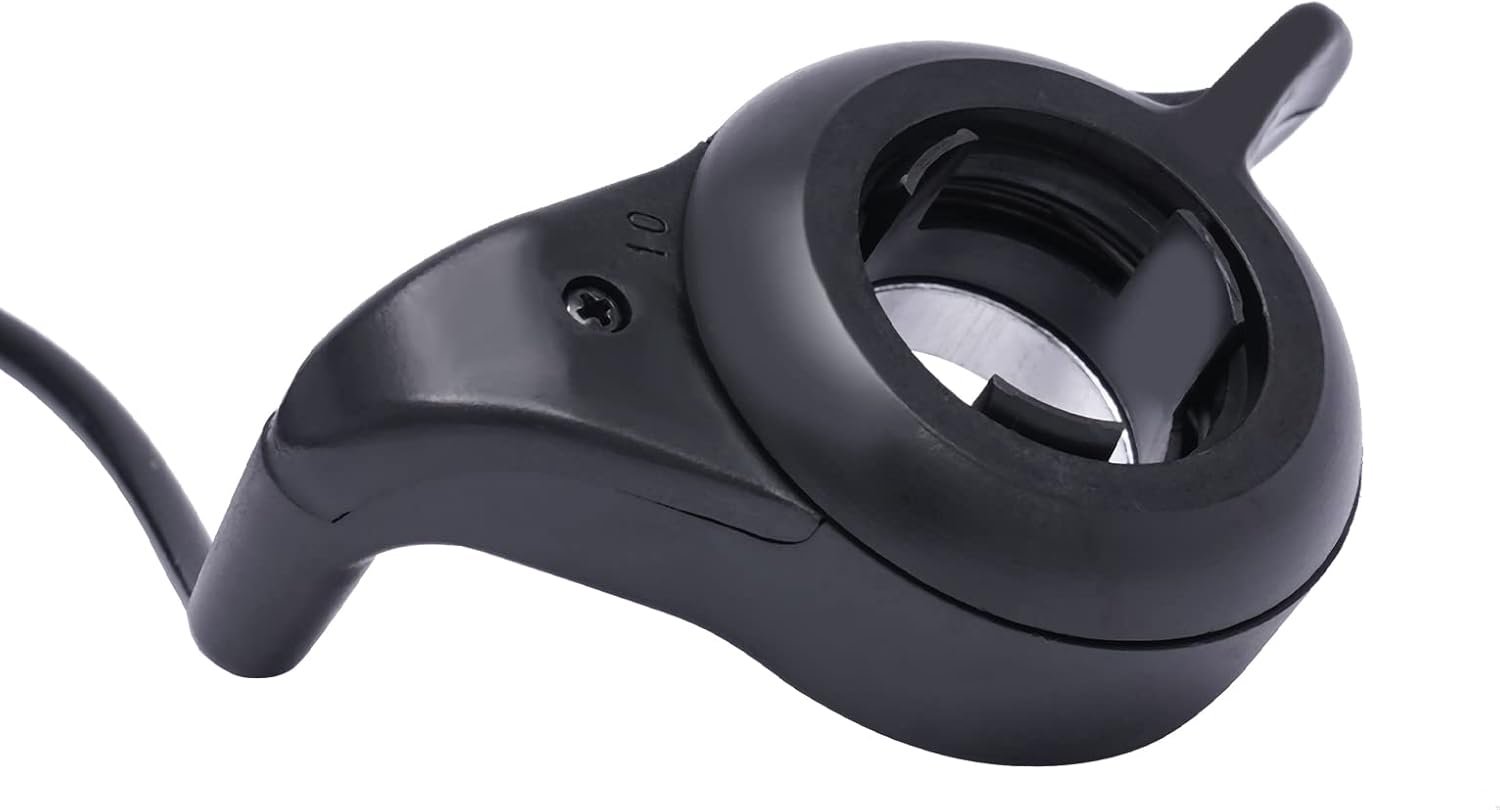

1* Thumb Turner
1* Turnbuckle Cover
1* Controller
1* Pedal Assistant Sensor
Other Accessories for Assembly
Notes
1. The speed is related to wheel size, road condition, battery condition, guest load, wind speed, and other factors.
2. Please make sure a solid connection between the motor and the controller.
3. Please make sure that the inner core of each plug is not damaged, broken, or bent.
🚴【Sensitive Control】: The brushless controller can be sensitive to the state of electric bike, providing steady speed and sensitive control of braking and direction changes.
🚴【Comforatble Riding】: The FOC sine wave controller makes the motor produce low noise and rotate smoothly with high efficiency.

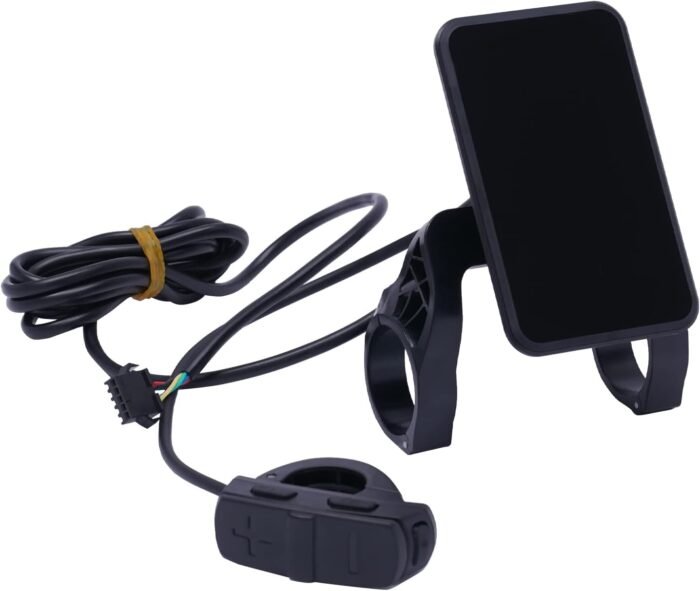

🚴【LCD Display】: The LCD meter with color screen can clearly display the real-time speed, maximum speed, average speed, total mileage, single mileage, battery power, assist gear/speed grading, cruise control, allowing you to grasp the usage statues of the product.
🚴【Labor-Saving】: You don’t have to pedal your bike laboriously anymore with this product and only need to gently rotate the turner to control the speed flexibly, which is very labor-saving and convenient.
🚴【Easy to Install】: The structure of the product is simple and the accessories are complete. You only need a few simple steps to install it, which is very simple and convenient.
