36V 800W Brushed DC Motor, Electric Brush DC Motor Kit, High Speed Motor DC Brush Controller for Dirt Bike e-Bike ATV Go Kart Moped Mini Bikes Motorized Bicycle Quad Trike

Price: $96.00
(as of Jan 23, 2025 23:06:34 UTC – Details)

Model: MY1020
Electric: EVO scooter parts
Fits: Tricycle, electric scooter, extreme scooter and similar bikes
36V800W Brushed motor Unite Brand Motor
Motor sprocket 11 teeth
Diameter: 10.5cm/4.13inch
Bracket foot width: 12cm/4.72inch
Motor length: 13.5cm/5.31inch
Fit: T8F/25H Chain
Rating power: 800W 36V
Rating speed rate/rpm: 2800rpm
Rating torque /N.m: 2.8 N.m
Efficiency: ≥78
Use: tricycle, bicycle, E-scooter, EVO scooter, Extreme scooter

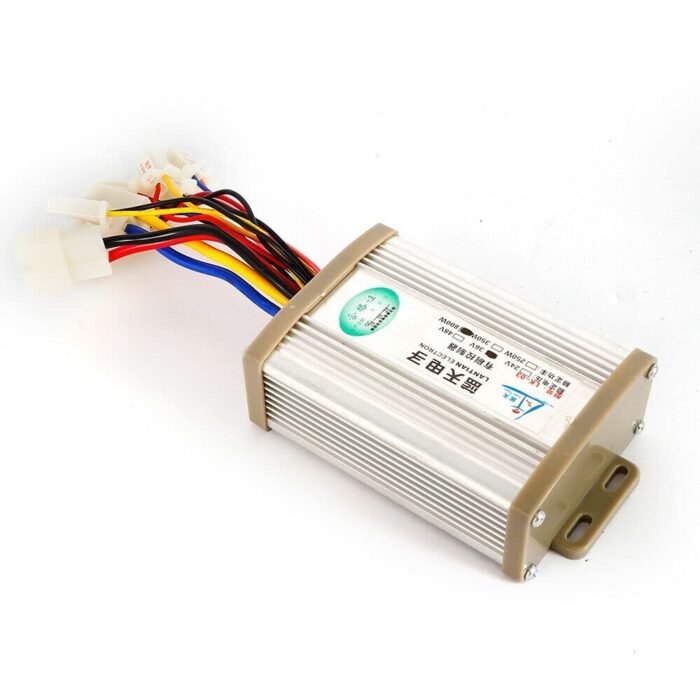

Speed Controller:
Works on 36V, 800W scooters and electric bikes
Type: brush speed controller
Voltage: 36V
Wattage: 800W
Casing material: aluminium
Colour: silver
Dimensions: 105 x 69 x 32mm/4.13 x 2.72 x 1.26inch

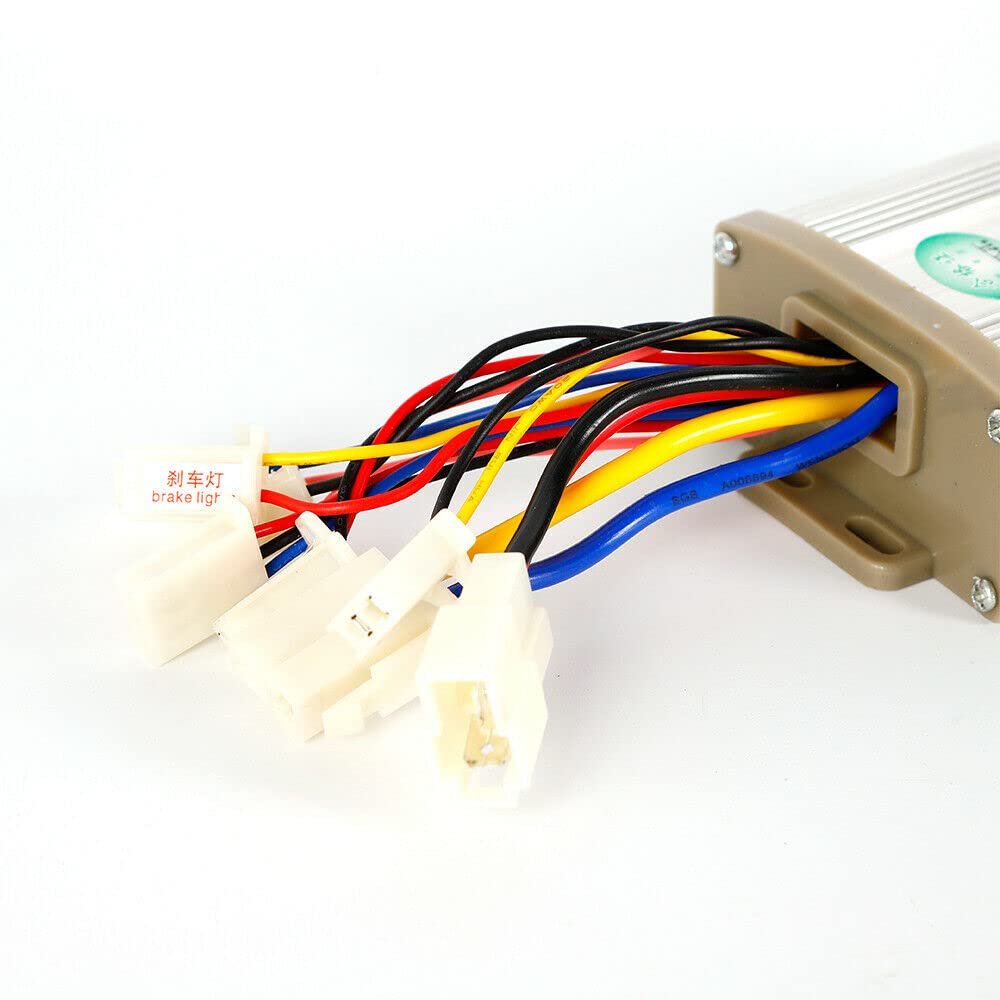

Plug :
1.Red & Black (large cable): Battery connections
2.Yellow & Blue: Motor connections
3.Red & Blue: Key Switch (power lock)
(If there is no power door locks, red connection to blue)
4.Yellow & black: brake
5.Red & Yellow: Brake light
6.Red&Black(small cable): indicator light
7.Red, Black & Blue: Speed Regulator 1-4 V(Throttle )
(Red: +5v, Black: – , Blue: Signal Wire)
8.Red & Black (small cable): Charger

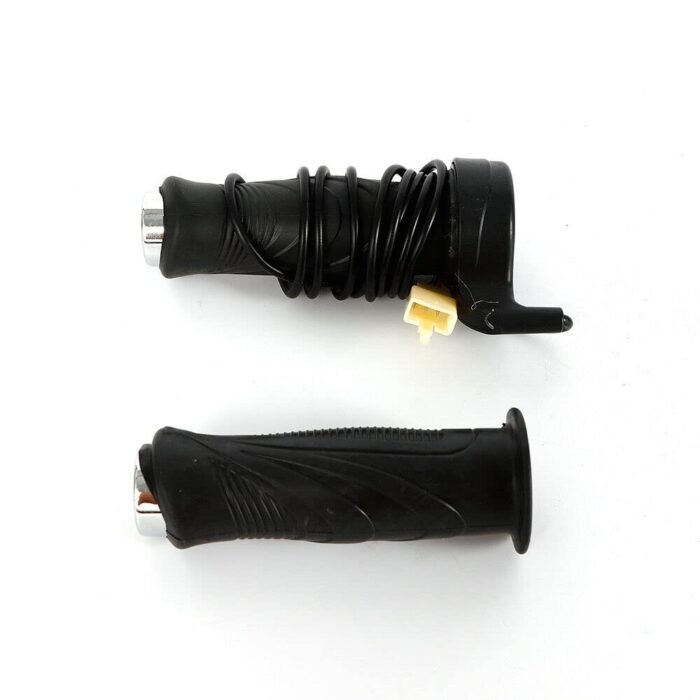

Throttle:
Universal 12v 24v 36v 48v Black Electric Scooter Bike Throttle Grip
Beautiful outlook and modern design.
Throttle Control Set Three Pin
Suit for Electric Throttle, Motorcycle, Scooter.


Specification:
Style: striae & Round
Operating voltage: 5V
Adjustment range: Minimum 1.0V; highest 4.0V
Function: high, medium and low grades governor

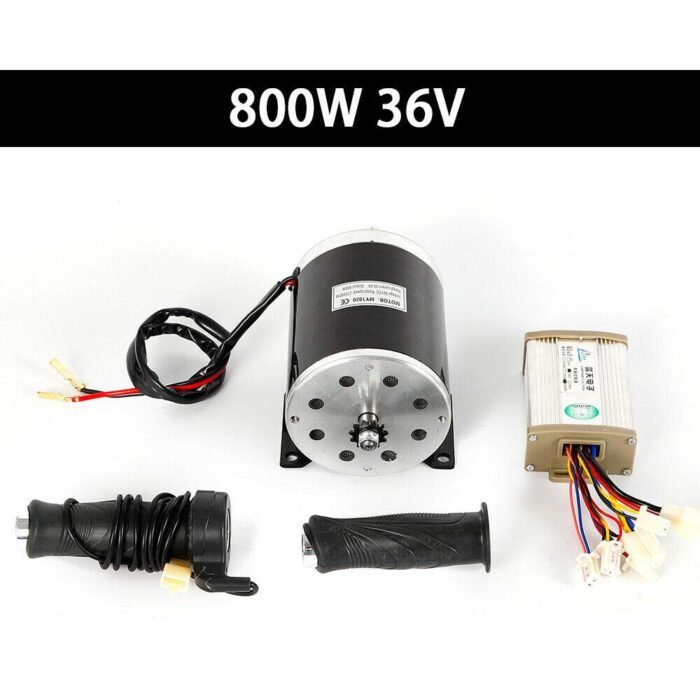

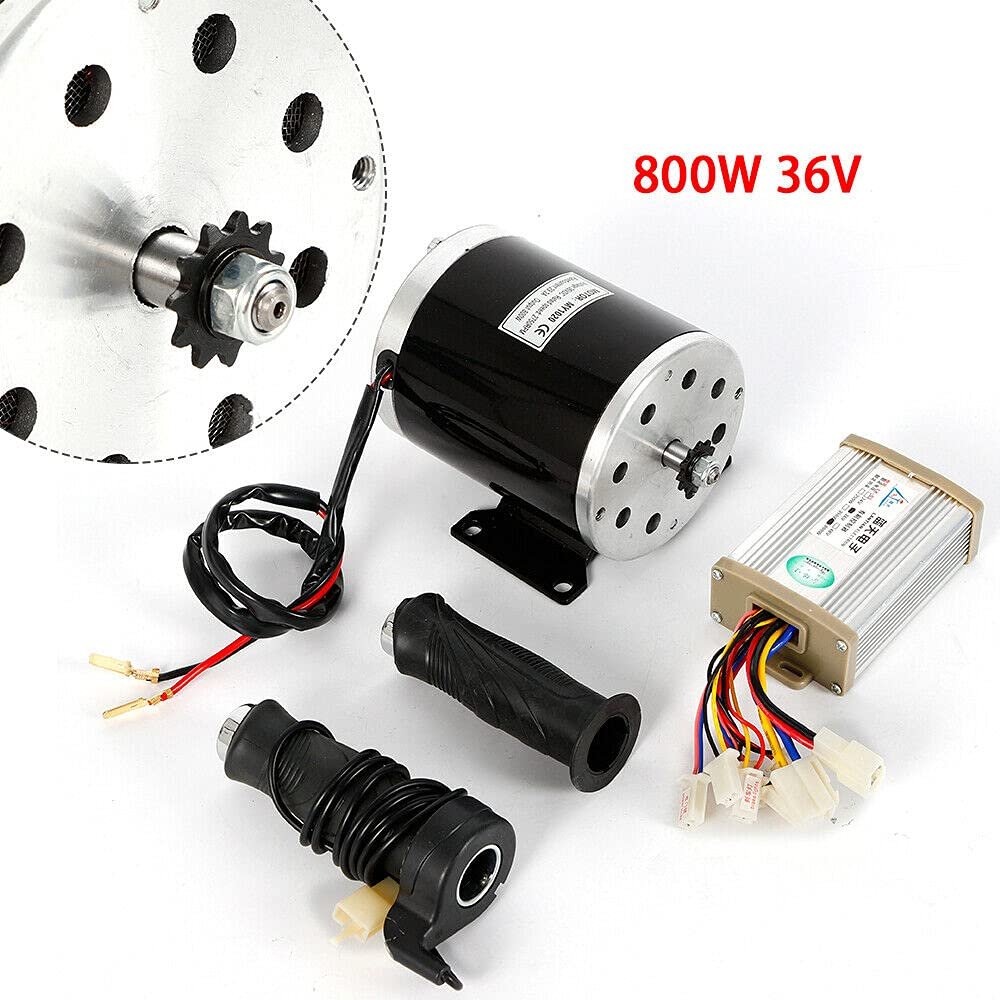

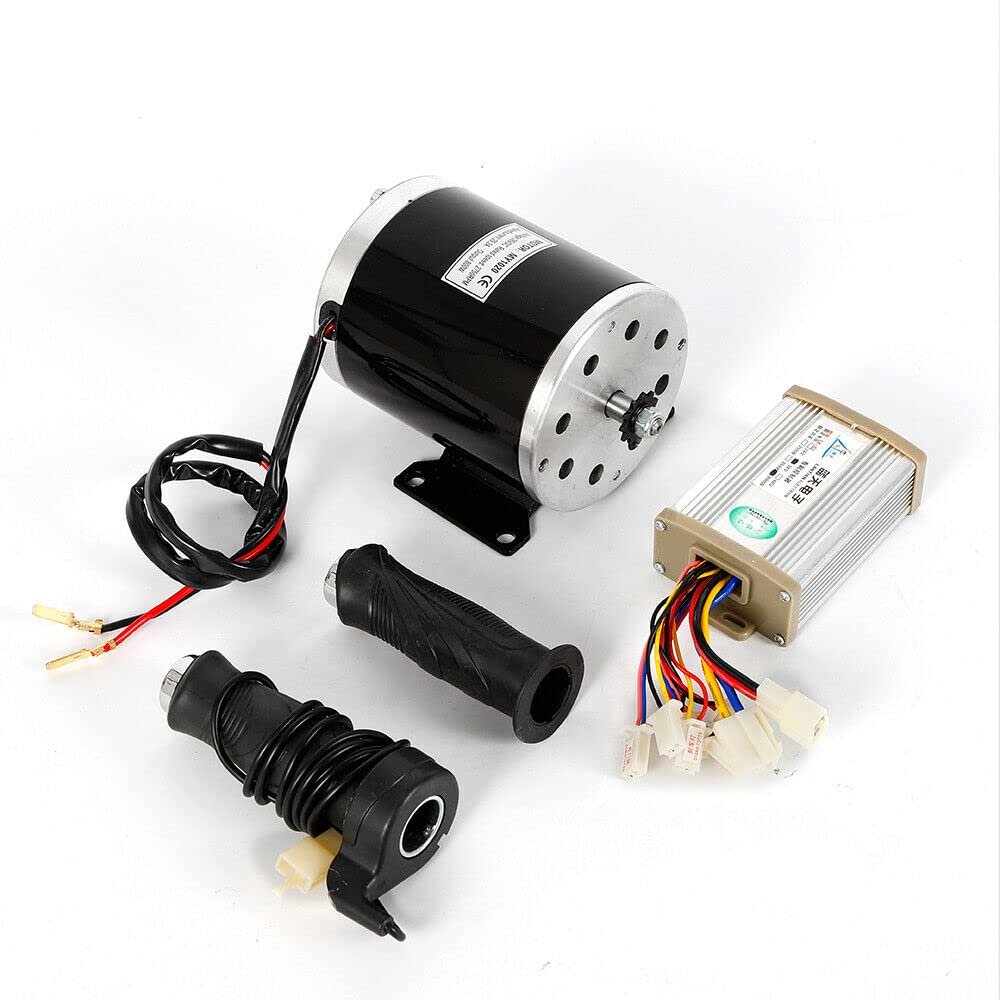

Package includes : 1x controller + a set of x throttle+ 1x Motor
Item model number ‏ : ‎ 36V 800W Brushed DC Motor
Date First Available ‏ : ‎ November 27, 2023
Manufacturer ‏ : ‎ LIKARVA
ASIN ‏ : ‎ B0CP1TYWF3
Country of Origin ‏ : ‎ China

🚗 Electric Motor Controller Brush DC Motor, Rated 36V 800W, DC Mid Drive Motor For Mini electric motorcycle, e-scooter go kart cart quad, e-bike electric scooter motor kit conversion.
🚗 Universal 12v 24v 36v 48v Black Electric Scooter Bike Throttle Grip. Beautiful outlook and modern design.
🚗 Compact and small sized electric brushed motor featuring voltage 36V DC, output 800W. Sprocket: For T8F/25H Chain. Robust and reliable metal material shell protect the inner circuit from thermal overloading.
🚗 Diameter: 10.5cm/4.13inch. Bracket foot width: 12cm/4.72inch. Motor length: 13.5cm/5.31inch. Package includes 1x controller + a set of x throttle+ 1x Motor.
🚗 Perfect for razor dirt bike, ATV, motorized bicycle, moped, mini bikes, pocket bikes and electric dirt bikes, Electric scooter, E-Bike, electric bicycle, e-Scooter, e-moto, motorcycle, small electric Moto, etc.
