48V E-Bike Rear/Front Wheel Conversion Kit, Fat Snow Tire Motor Kit Electric Snow Bike Wide Rear Wheel Hub Motor with LCD Display for Snow Bikes Motorbikes

Price: $189.99
(as of Jan 15, 2025 07:11:31 UTC – Details)

Product Description

Specification

Material Aluminium + Iron + Magnetic Steel Color Black Voltage 48V Power 1000w Rated Speed 500 rpm Rated Torque 45 N.M Motor Type Brushless Gearless Motor Brake 6 Screws Fixed Model Disc Brake Corresponding Controller 48v1000w Controller Efficiency ≥82% Travel Speed 48km/h Unladen(29.82mile/h) Suspension Type Front

Motor Diameter 420mm/16.54in Motor Shaft Length 200mm/7.87in Motor Cable Length 100cm/3.93in Wheel Diameter 445mm/17.25in Motor Width 82mm/3.263in Number of Hall Sensors 3 Body Size of Magnet 13.65*3*30mm/0.53*0.11*1.18in Flat Fork Width Requirement Min.135mm/Min.5.31in Suitable Wheel Size 50*10cm/20*4in Packing Size 50*50*28cm/19.68*19.68*11.02in Gross Weight 11.5kg/25.35lbs Net Weight 10kg/22lbs

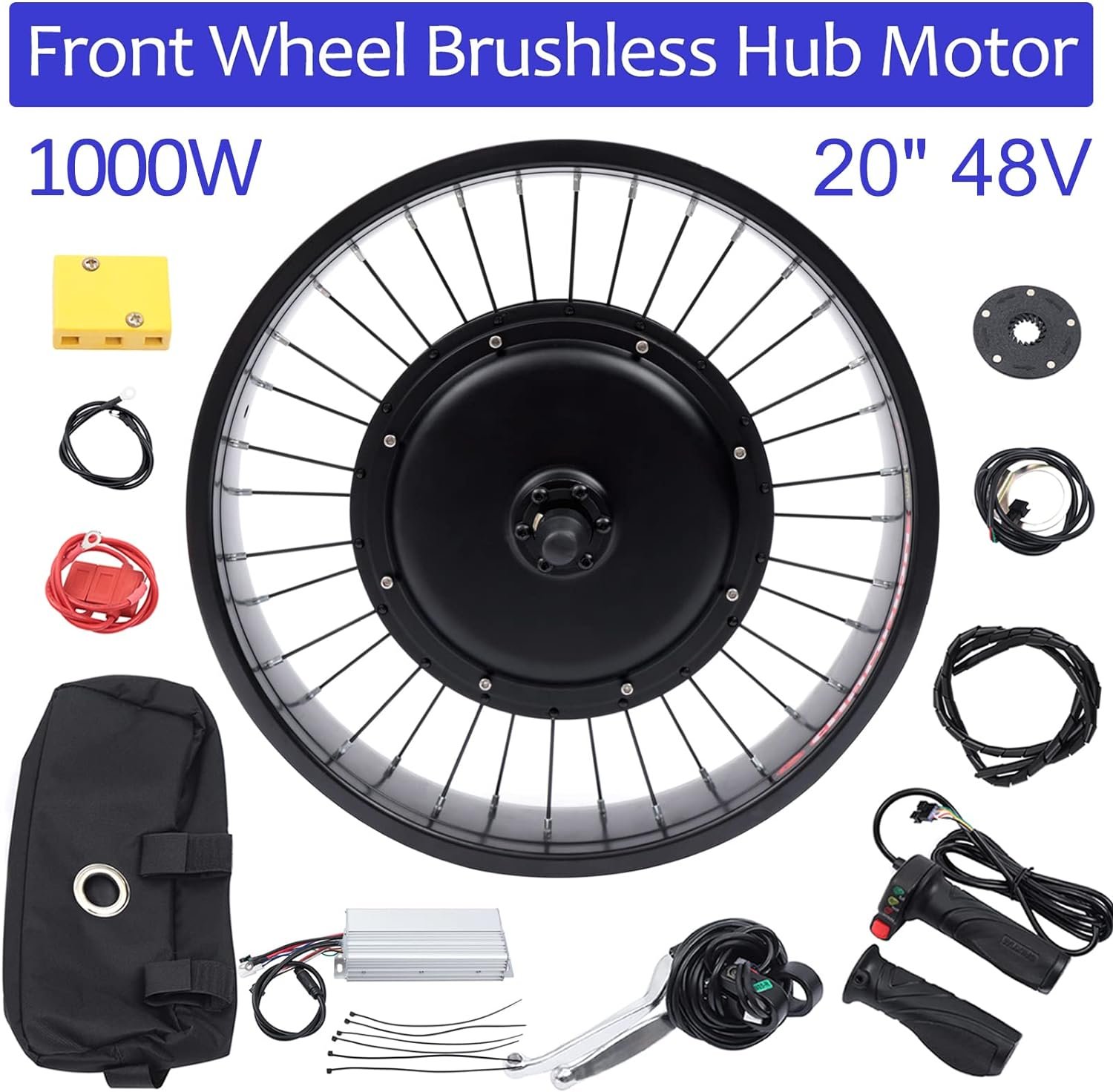

Package Included

1* Wheel Motor

1* Controller

1* Turnbuckle

2* Brake Handles

2* Handles

1* Assist Sensor

1* Controller Bag

1* English Manual

All Accessories for Installation

Details

Application

It is suitable for the modification of 20 “x4” size wheels, such as snow bikes, electric bikes, and electric motorbikes.It is equipped with 3 Hall sensors, which detect the magnetic field of the motor and the motor’s movement speed to facilitate the driving of the motor for a more powerful start and a smoother ride.

Brushless Gearless Motors

As brushless gearless motors do not have carbon brushes, frictional resistance and heat are greatly reduced, resulting in extremely high transmission efficiency and speed. It allows for more efficient operation.

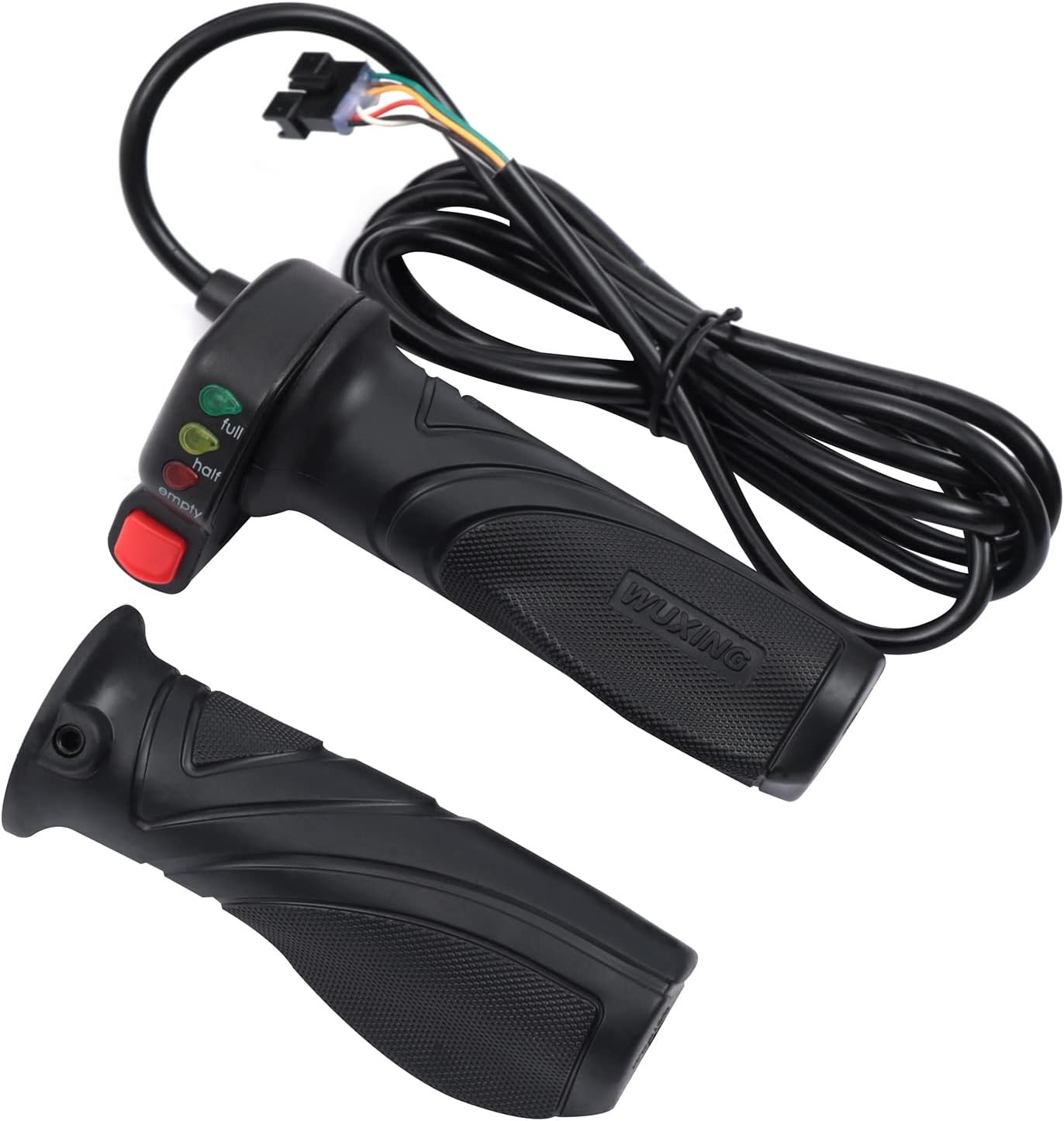

Power Indicator Light

With three power indicators on the handle. The green light will be on when the power is sufficient, while the yellow or red light will remind you that it is time to recharge.

Notes

1.This set does not include tires and needs to be purchased by the customer. The suitable tire size is 20*4in.

2. Please make sure to use lead-acid or lithium batteries of the appropriate voltage (48V).

3. It is suitable for two-wheeled bicycles, not for three-wheeled or multi-wheeled vehicles.

4. Please allow the slight color difference caused by the shooting light and 1-3cm error due to manual measurement, and make sure you do not mind before you order.

VERY DURABLE: Thanks to its aluminum casing and iron wheels, it is more durable and sturdy. It is also less likely to be damaged or rusted under proper use. LOW MAINTENANCE COST: This front wheel motor has no brushes, low maintenance cost, no need to replace brushes, reduce financial stress.
HIGH SPEED: This motor can rotate up to 500rpm and no-load speed up to 29.82 mph, which makes your ride easier. So you can fully enjoy the ride. The brushless and gearless motor is more efficient with up to 1000W of power and more than 82% usable efficiency, thus making the ride more efficient.
SMOOTH RUNNING: This front wheel motor runs with much less friction because it has no brushes and gears, so it runs smoother even on irregular roads and runs with less noise.

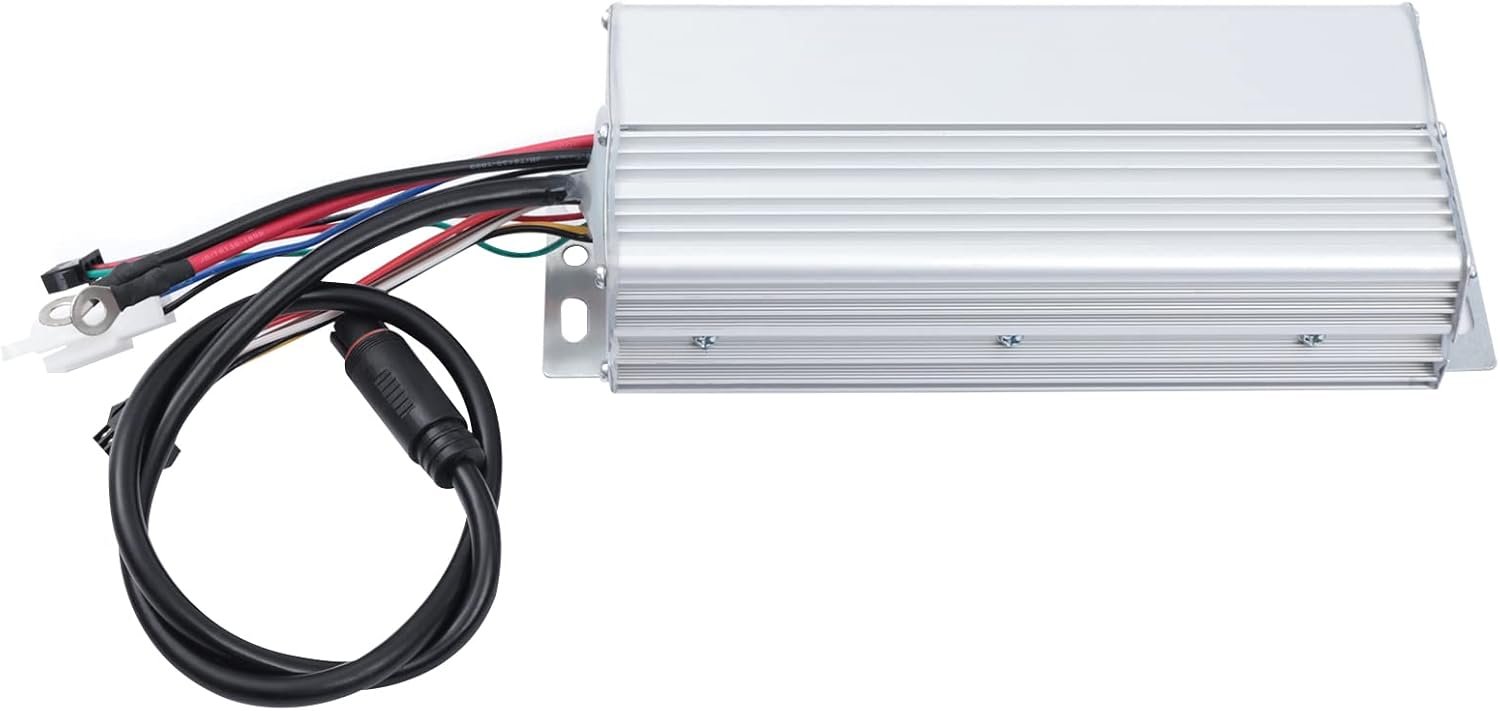

POWERFUL CONTROLLER: This product is equipped with a powerful controller to ensure high current supply. It can help you ride, double the distance and make the riding process easier! It can automatically cut off the power supply to the motor when braking, which saves energy and increases safety, making the ride safer.
COMPLETE KIT: This is a complete wheeled motor kit, so the parts are more adaptable and perform better. At the same time, it is very convenient as there is no need to buy parts separately.
