Product Description
PRODUCT DESCRIPTION
BICYCLE FRONT FRAME FEATURES

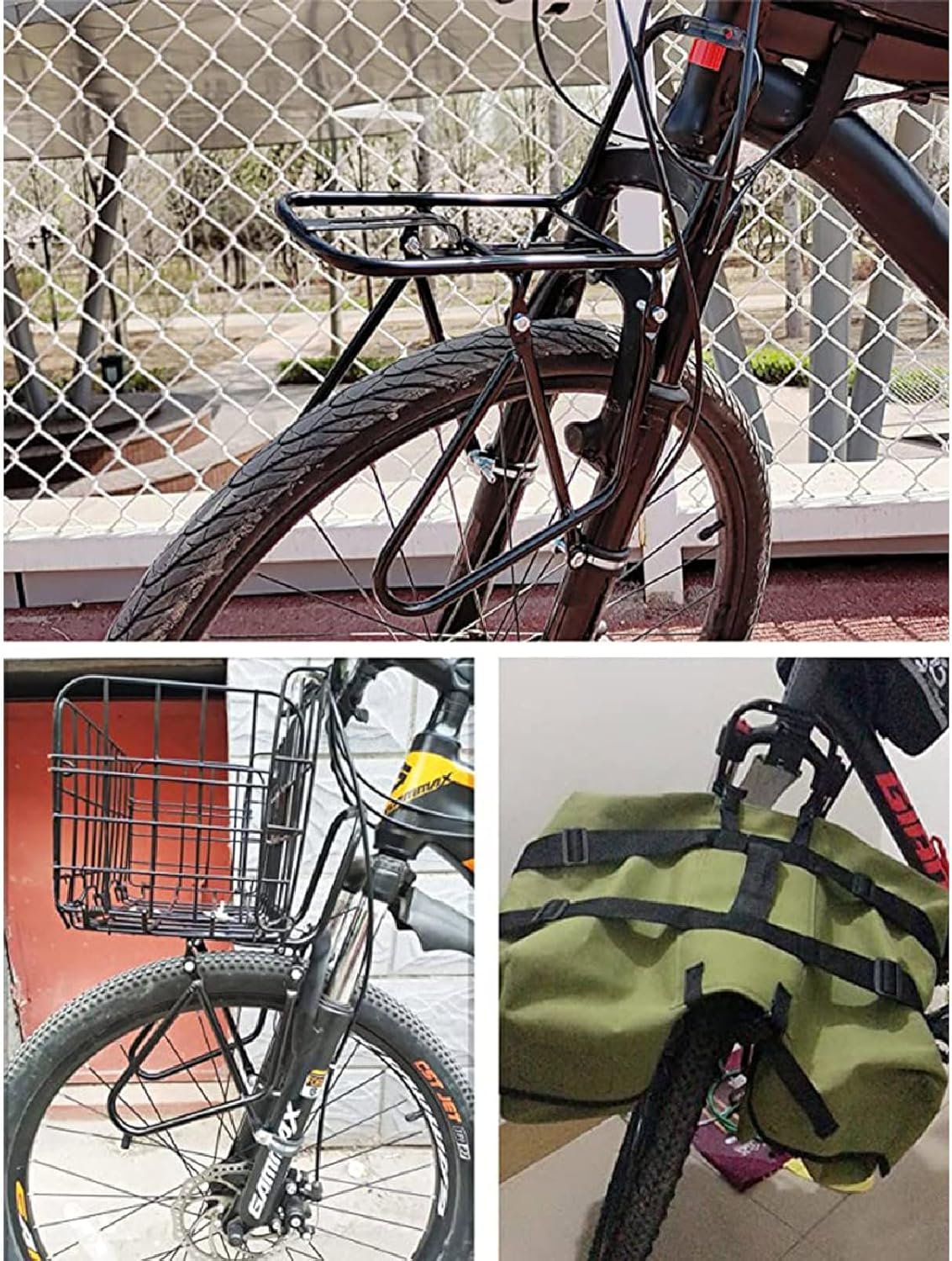

1. The Sturdy Bike Frame Is Made Of High-Quality Steel And Is Suitable For Long Journeys.2. Detachable Design, Sturdy And Durable, Capable Of Loading More Than 15 Kg Of Items.3. Can install bicycle baskets, bags, bundled clothes, sleeping bags, tents and other items4. Side Protection Bracket Design, Compatible With V-Brake And Disc Brake Systems.5. Easy installtion, with stainless steel screws and bracket6. Easy Installation & Replacement, can be used as a bike front fender7. Suitable for mounting on front of the bike, fits to 24” to 28” wheel bike
Front
Side
Back
PRODUCT SPECIFICATIONS
Product Name Bicycle Front Rack Product Material High Quality Steel Tire Width No More Than 8cm/3.14 Inch Applicable Mountain Bikes, Battery Bikes, Road Bikes, Folding Bikes Product Size about 23*14*23*12.5cm/9*5.51*9*4.92inch Weight About 1.2kg Included installation Hose Clamp
INSTALLATION REQUIREMENTS
1. The front fork of the bicycle must have the mounting hole for the fender position
2. The fixing ring is suitable for cylindrical bicycle front fork, the diameter of the front fork is 28-34mm. Not suitable for non-cylindrical forks
3. If your bicycle front fork has special mounting holes for racks, you can directly fix it on the reserved holes with screws without using a fixing ring.

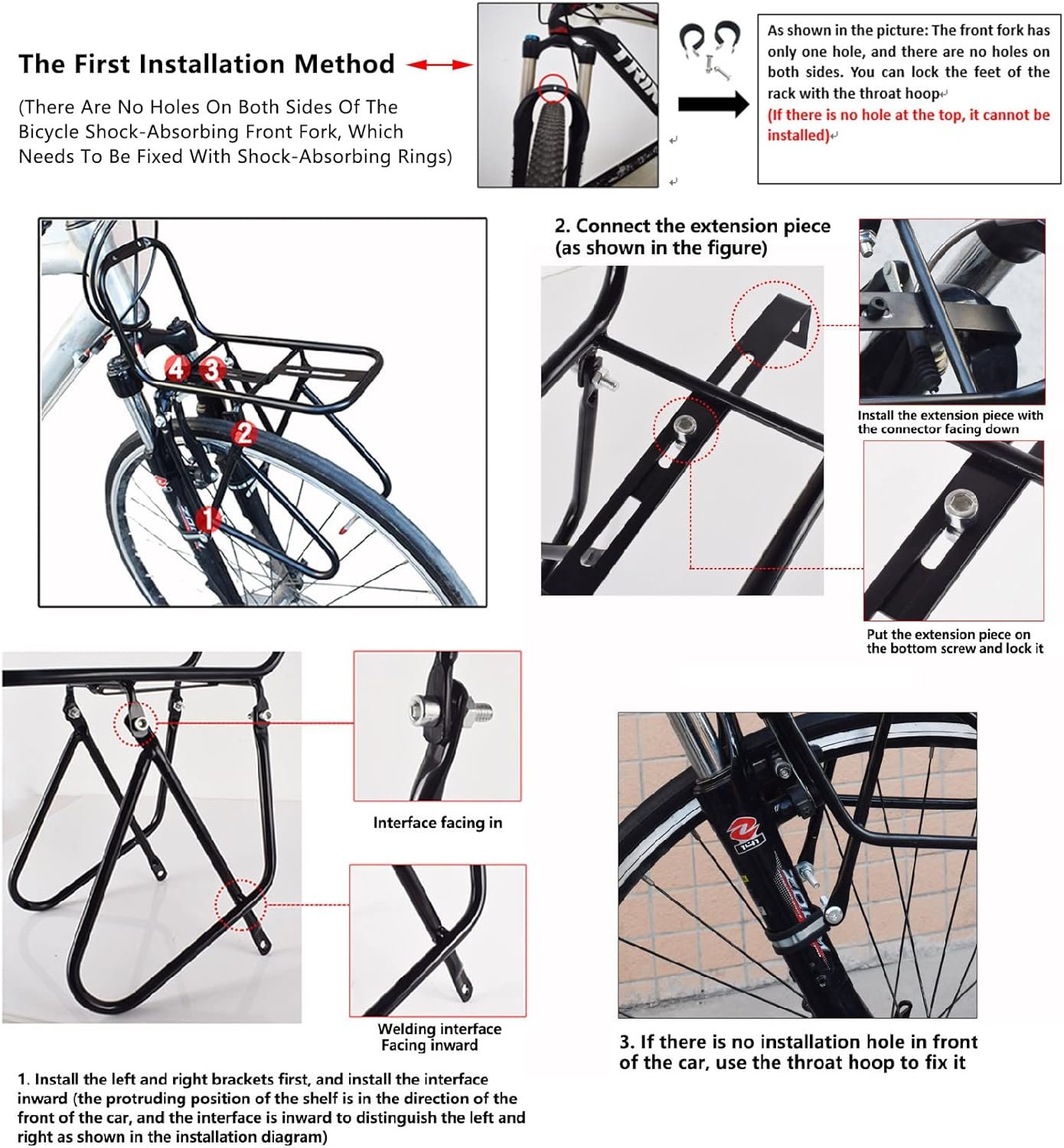

BICYCLE FRONT FRAME ASSEMBLY STEPS
Exploded View
Installation Steps Distribution Diagram
First Step
1. First Install The Left And Right Brackets With The Interface Facing Inward.(The Protruding Position Of The Shelf Is Toward The Front Of The Car, And The Interface Faces Inward To Distinguish The Left And Right As Shown In The Installation Diagram)
Step 2
2. Connect The Extension Piece (As Shown In The Picture)
Third Step
3. If The Front Fork Has No Mounting Holes, Just Use A Hose Clamp To Fix It.
PACKING LIST
bike rack × 1side brackets × 2Fixing bracket × 1cable ties × 2wrenches × 21 set of screwsFixing ring × 2
Add to Cart
Add to Cart
Add to Cart
Add to Cart
Add to Cart
Customer Reviews
3.0 out of 5 stars 5
4.0 out of 5 stars 117
—
—
—
Price
$36.99$36.99 $26.99$26.99 $78.99$78.99 $52.99$52.99 $58.99$58.99
Material
Aluminium Alloy Steel Aluminium Alloy Steel Steel
Snap Ring Type
Upgrade Clamp Ring PP Clamp Ring
✓
✓
✓
Applicable Models
Most Mountain Bikes;Road Bikes, Folding Bikes,Commuter Bikes Most Mountain Bikes;Road Bikes, Folding Bikes,Commuter Bikes Most Mountain Bikes;Road Bikes, Folding Bikes,Commuter Bikes Most Mountain Bikes;Road Bikes, Folding Bikes,Commuter Bikes Most Mountain Bikes;Road Bikes, Folding Bikes,Commuter Bikes
Features
Durable Sturdy,Load 15kg Durable Sturdy,Load 15kg Durable Sturdy,Waterproof Durable Sturdy,Waterproof Durable Sturdy,Waterproof
HIGH QUALITY STEEL:Sturdy bicycle frame, mainly made of high quality steel, black coating, durable, very suitable for long-distance outdoor riding, Objects up to 33lb are allowed (it is recommended not to carry too many objects to avoid accidents).
LUGGAGE BAG PROTECTION: There are protective supports on both sides of the front parcel shelf. When riding with a backpack, it can avoid collisions or friction between the bag and the wheel, thus ensuring the safety of riding.Compatible with V-brake and disc brake system.Suitable for mountain bikes, road bikes, folding bikes, etc.
MULTIFUNCTIONAL DETACHABLE: Our bike basket Front upgrade your Ride to the next level and can meet most needs for daily travel. Detachable design Front Rack Brasket for go to school, shopping, pet baskets, grocery shopping, picnic, and outdoor baskets.Whether you’re popping over to the shops or are on a short-distance tour, this bike rack will be your best choice. It is your perfect companion on the bicycle.
2 KINDS OF FIXING METHODS: 1. Front fork hole installation: It can be fixed on the reserved hole of the bicycle front fork fender (see the picture). 2. If the front fork does not have a reserved hole, use the supplied cable tie to fix it. Then install 2 circlips. Bicycle front fork diameter requirements are (28.6-31.8mm).
EASY TO INSTALL: Even a novice can easily install it! Comes complete with accessories and screws. You can install it directly after you receive the package.Just tighten the screws and you can attach the front bike rack to the seat tube without drilling holes.(Note:Before you purchase,please make sure there are mounting holes on your bike to bolt the rack in,or the bike cargo rack will not fit)
