Price: $89.99 - $79.99
(as of Dec 16, 2024 20:23:28 UTC – Details)
Details

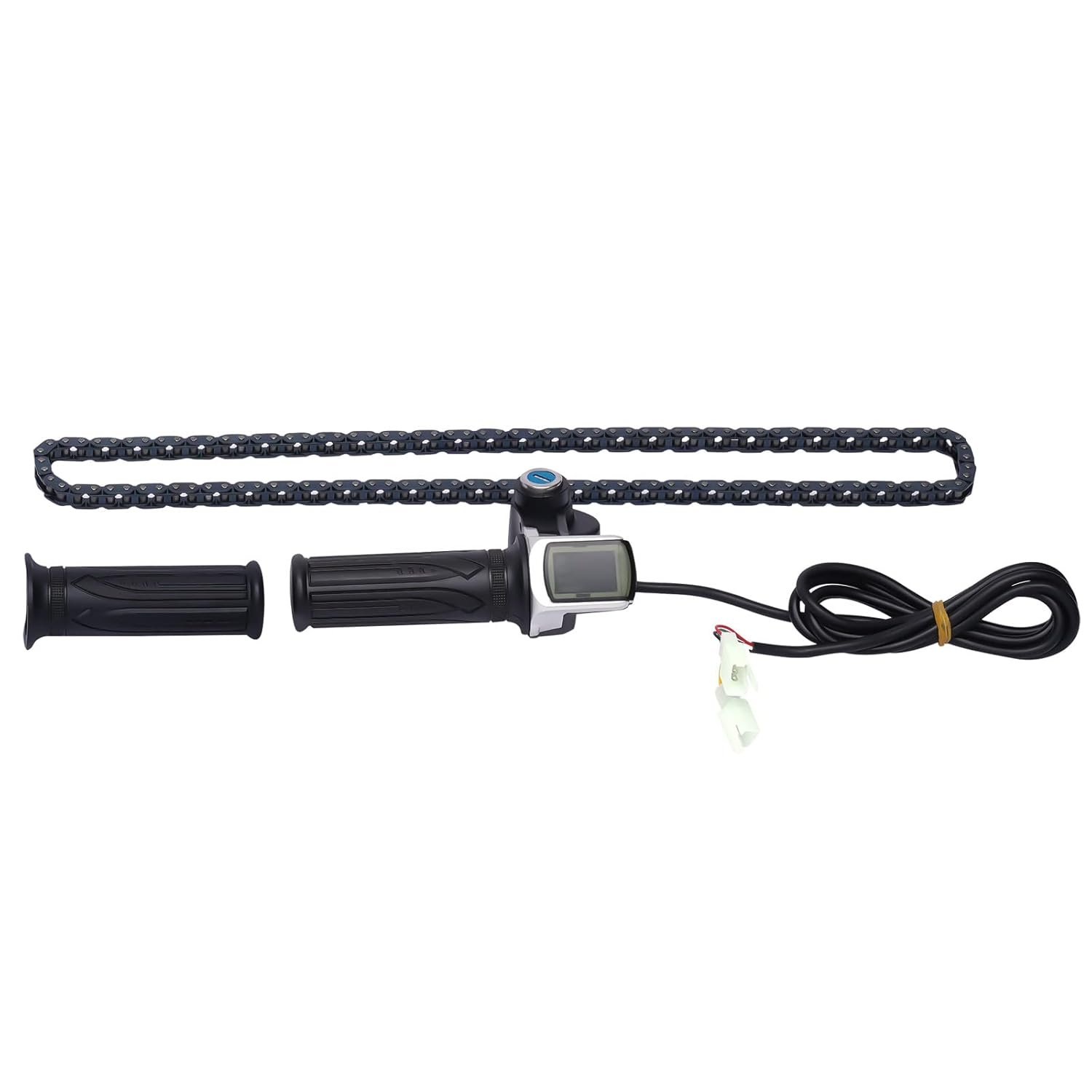

🚴Non-slip Handles: This set comes with two very comfortable non-slip handles. One of them is the drive handle. Twist it and then the electric bike will move forward. And the driving speed can be controlled by turning the handle.
🚵LCD: This drive handle has an LCD that shows the power of the e-bike clearly. So you will be able to recharge your batteries in time with it.
🚲Chain: We provide a T8F chain for you to convert. The thickened chain is not only strong and durable but also smooth to drive.
Application
🚀This conversion kit is suitable for small karts, beach bikes, EVO scooters, small electric motorcycles, etc.
Specification
Color: Black, Silver
Material: Copper, Iron and Aluminum
Chain Model: T8F
🚤Motor Model: MY1020

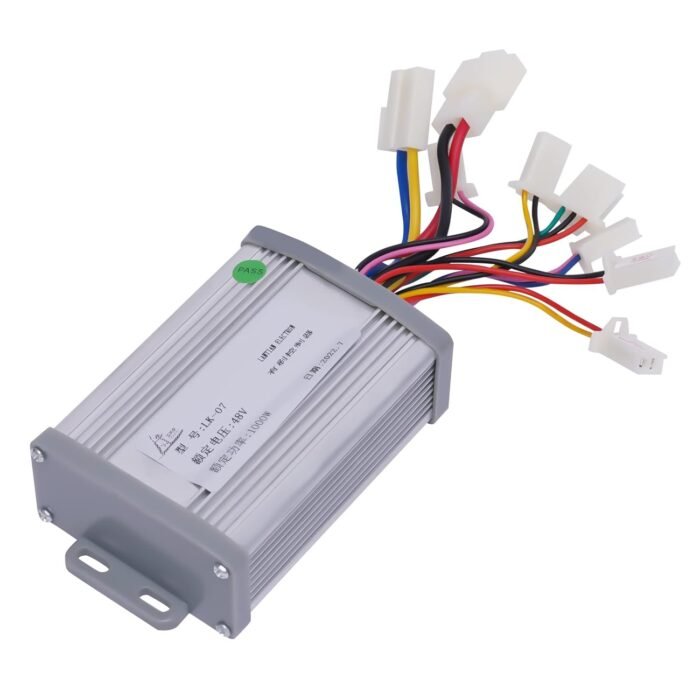

🚤Controller Model: LK-07
🔥Voltage:48V
🔥Power:1000W
Motor Type: Brush Motor
Unload Current: 2.2A
Rated Current: 26.7A
🔥Unload Speed: 3700 rpm
🔥Rated Speed: 3000 rpm
Rated Torque: 3.2N·m
Motor Efficiency: ≥78%

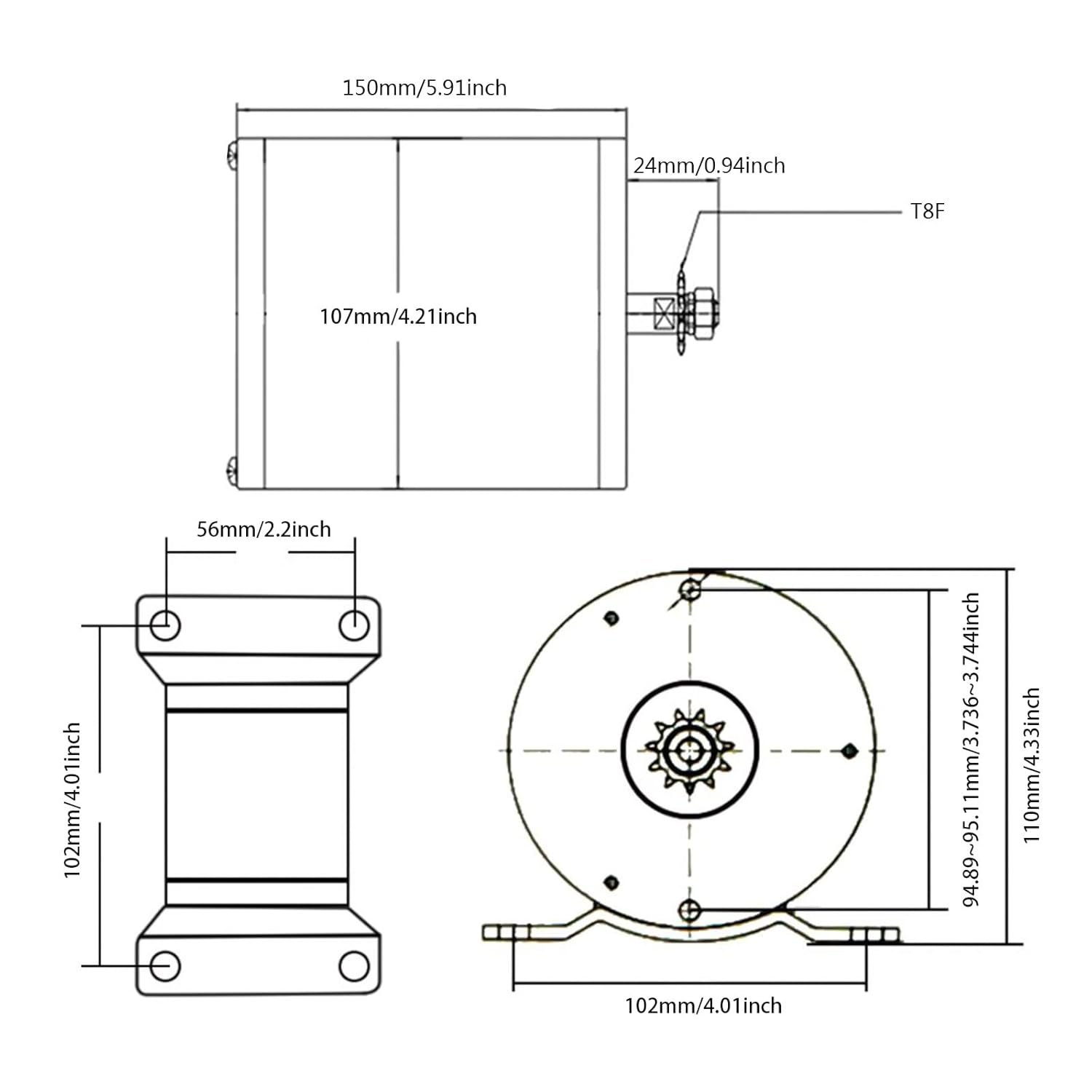

Motor Length: 15cm/5.91inch
Motor Shaft Length: 2.4cm/0.94inch
Motor Diameter: 10.2cm/4.01inch
Motor Screw Holes Distance: 9.489-9.511cm/3.736-3.744inch
Motor Height: 11cm/4.33inch
Motor Stand Screw Holes Distance (Horizontal): 5.6cm/2.2inch
Motor Stand Screw Holes Distance (Vertical): 10.2cm/4.01inch
Package Size: 29*17*19cm/11.4*6.7*7.5inch
Gross Weight: 6.2kg/13.7lbs
Package Included
1* Brush Motor
1* Controller
1* Drive Handle
1* Regular Handle Cover
1* Chain
2* Keys
Notes
🚨Please allow the slight color difference caused by the shooting light and 1-3 cm error due to manual measurement, and make sure you do not mind before ordering.
Item Weight : 13.67 Pounds
Item model number : MY1020
Date First Available : August 7, 2024
Manufacturer : QUSKLISU
ASIN : B0DCFYTVHM
Country of Origin : China
【Powerful Motor】: This motor is a 48V 1000W brush motor for efficient operation. The powerful motor has a rated speed of 3000rpm so that it can help you drive faster
【3 Speed Gears】: The controller has three speed gears to adjust the speed of the motor. You can adjust the appropriate speed to ensure safe driving
【High-quality Motor】: This electric motor equipped with reliable metal housing protects the internal circuit and has good heat dissipation performance with the holes to avoid thermal overload. So it has a long service life
【Lockable】: After being attached, this kit can be locked with the complimentary key to prevent others from stealing your bike. The handle is pre-loaded with a keyhole for smooth opening and locking
【Energy-saving】: With this conversion kit, your bike or EVO scooter will become an electric one. So you don’t have to struggle to ride. Electric drives will replace human drives. You will feel relaxed when riding
