IMAYCC Bike Motor Kit 80cc Motorized Bike Kit 2 Stroke Bicycle Engine Kit with Wired Digital Computer Fit for 26-28″ Bikes

Price: $169.99 - $131.99
(as of Dec 21, 2024 03:04:25 UTC – Details)

IMAYCC Bike Engine Kit Installation Steps:

1. Attach the sprocket assembly to the rear wheel of the bike. All parts are installed on the side without the original bike chain. Please keep the original bike chain and do not make any changes. Install on the clamping rubber on the rear wheel axle first (no cut), then on the sprocket, keeping the concave side of the sprocket tight against the outside of the clamping rubber. Install the other outer clamping rubber (with cut) on the rear axle (inside of the steel wheel spokes). Keep both rubbers tightly clamped to each side of the steel spokes. Then attach the large and small cleats tightly to the cleats (inside of the steel wheel spokes) and screw the sprocket assembly tightly to the rear wheel. Please take care to keep the pulsation between the radial and axial lines of the sprocket and the rear axle no more than 1 mm.
2. Secure the motor to the bike frame. Align the crankcase circle with the bike frame and secure it. The centerline of the cylinder is usually tilted forward about 20 degrees.
3. Fix the chain and adjust the slackness with idler wheel.
4. Fix the protective case.
5. Fix the vent pipe.

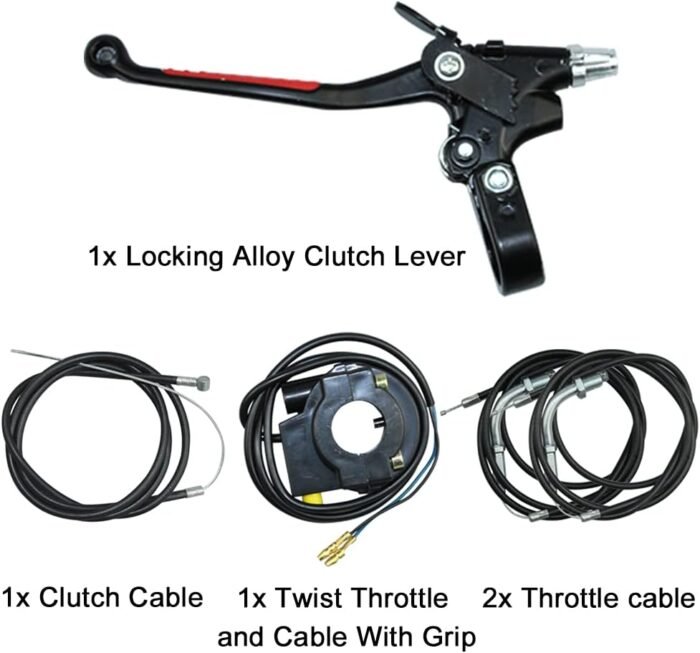

6. Fix the gas pedal control on the right side of the bike. Fix the clutch control on the left hand side of the bike.
7. Fix the fuel tank on the cross member of the bike and connect the fuel pipe to the carburetor inlet.

【Installation Notes】The rider will need basic hardware skills and tools, and about 2-4 hours of installation and fine tuning. If you are inexperienced or installing engine kit for the first time, please read our instructions and search “IMAYCC 80cc bicycle engine kit” on Youtube before installation, it will give you a great help and solve a lot of problems during installation

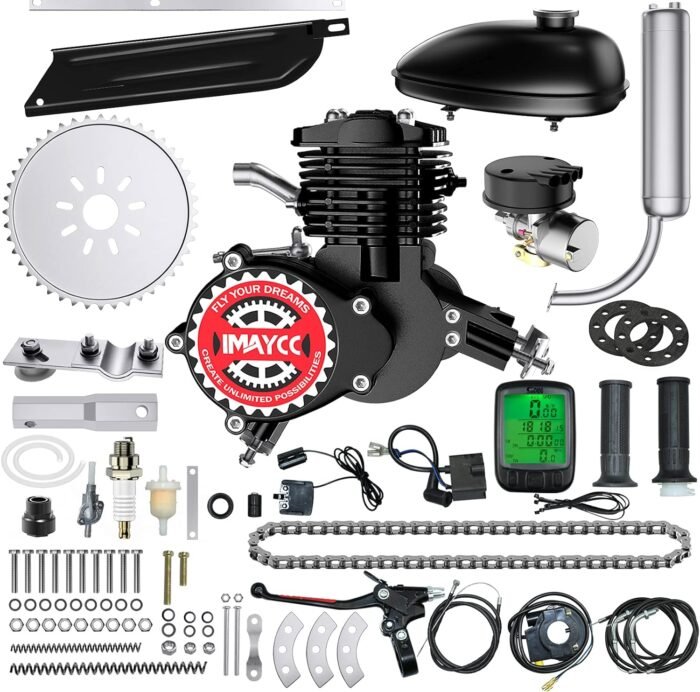

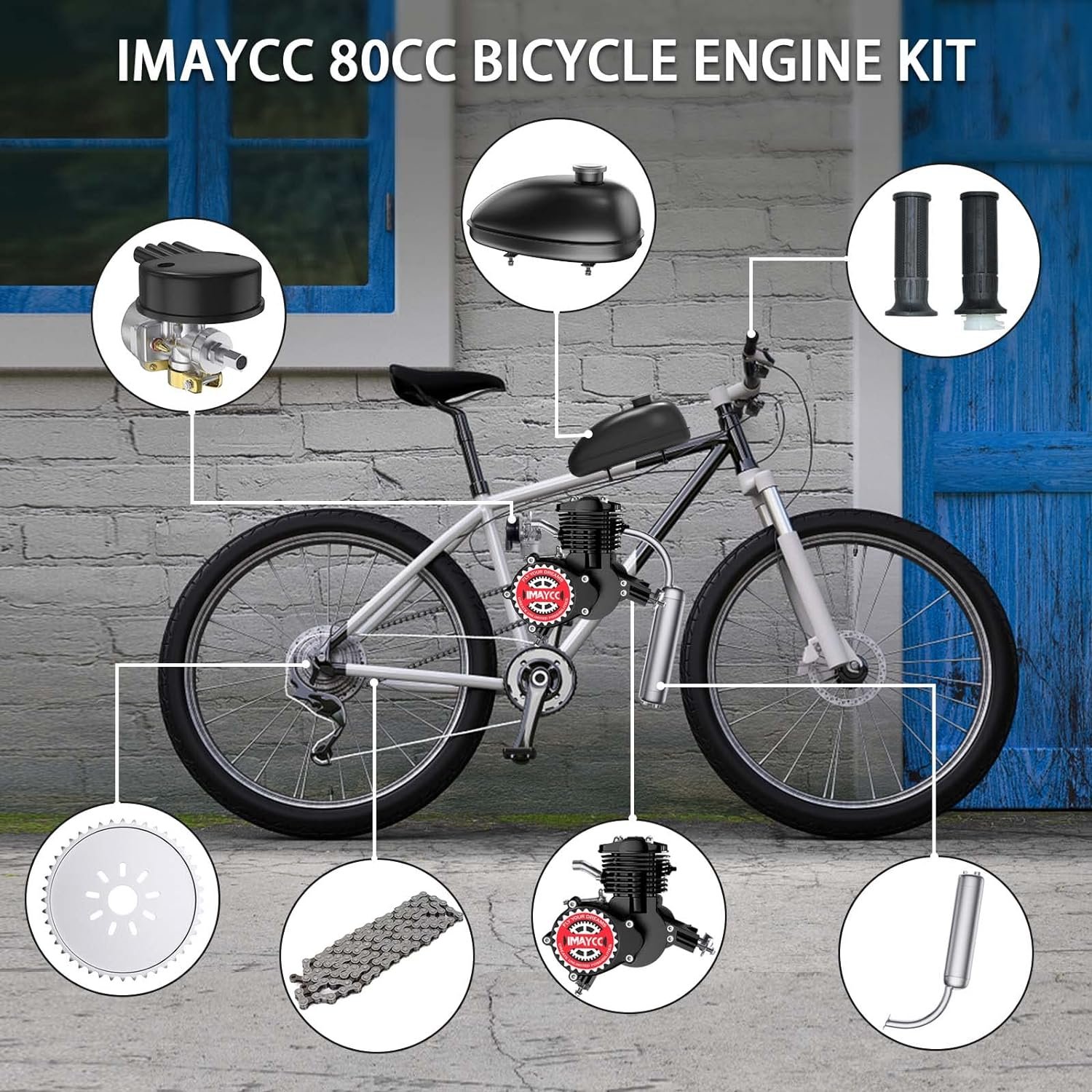

【80cc Bicycle Engine Kit】Come with a complete engine kit, 2-stroke 80cc single cylinder gasoline engine, wired digital computer, the engine power/speed is 2.1Kw/5000rpm, so you can enjoy a faster riding speed, the upgraded bicycle has better durability and supports long-distance riding, make it easier to use outdoors

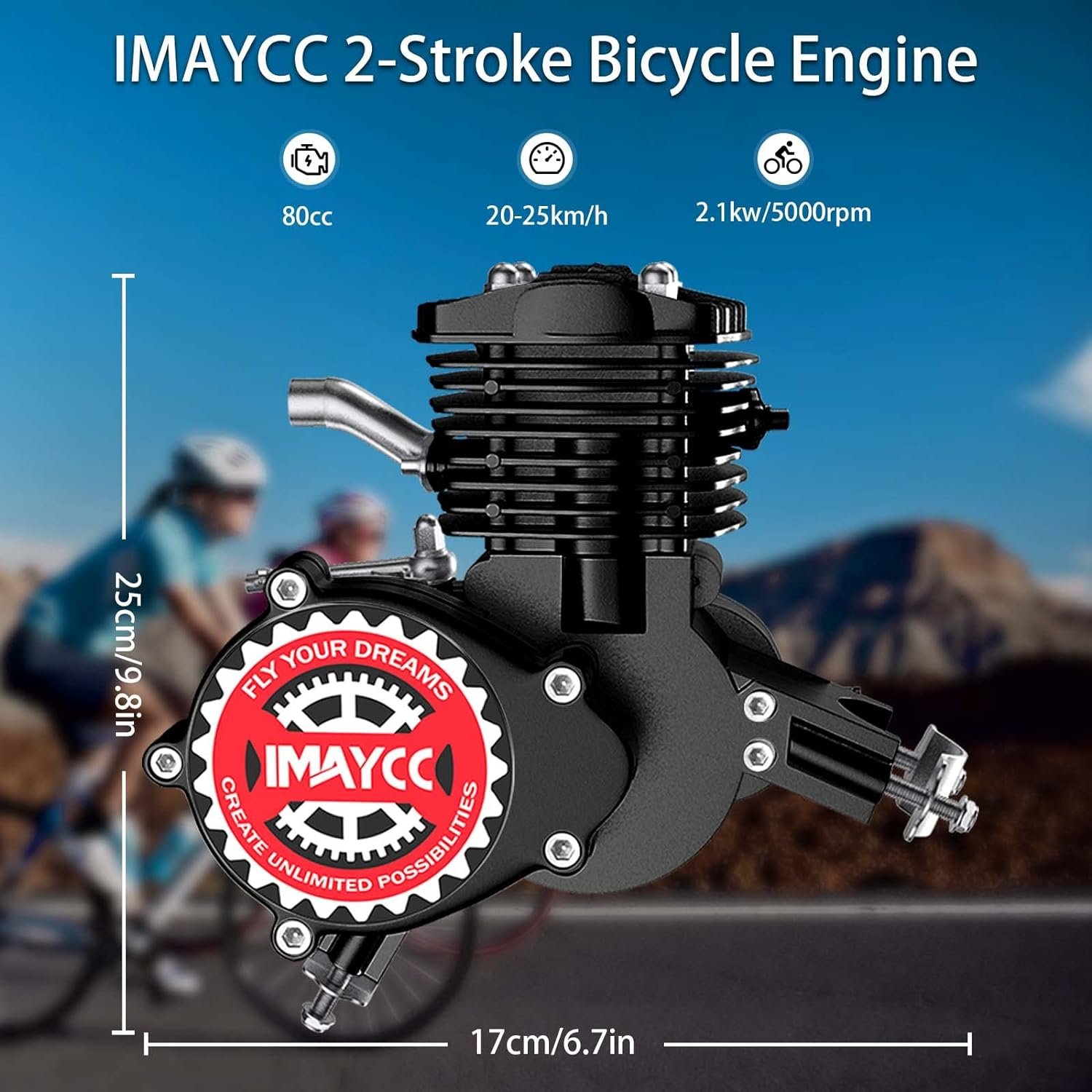

【80cc Bike Motor Kit】Engine type: single-cylinder, air-cooled, two-stroke. Starting method: foot pedal starting. Ignition method: CDI ignition. Number of sprocket teeth: 44 teeth. Number of chain teeth: 110 knots. Spokes: 36

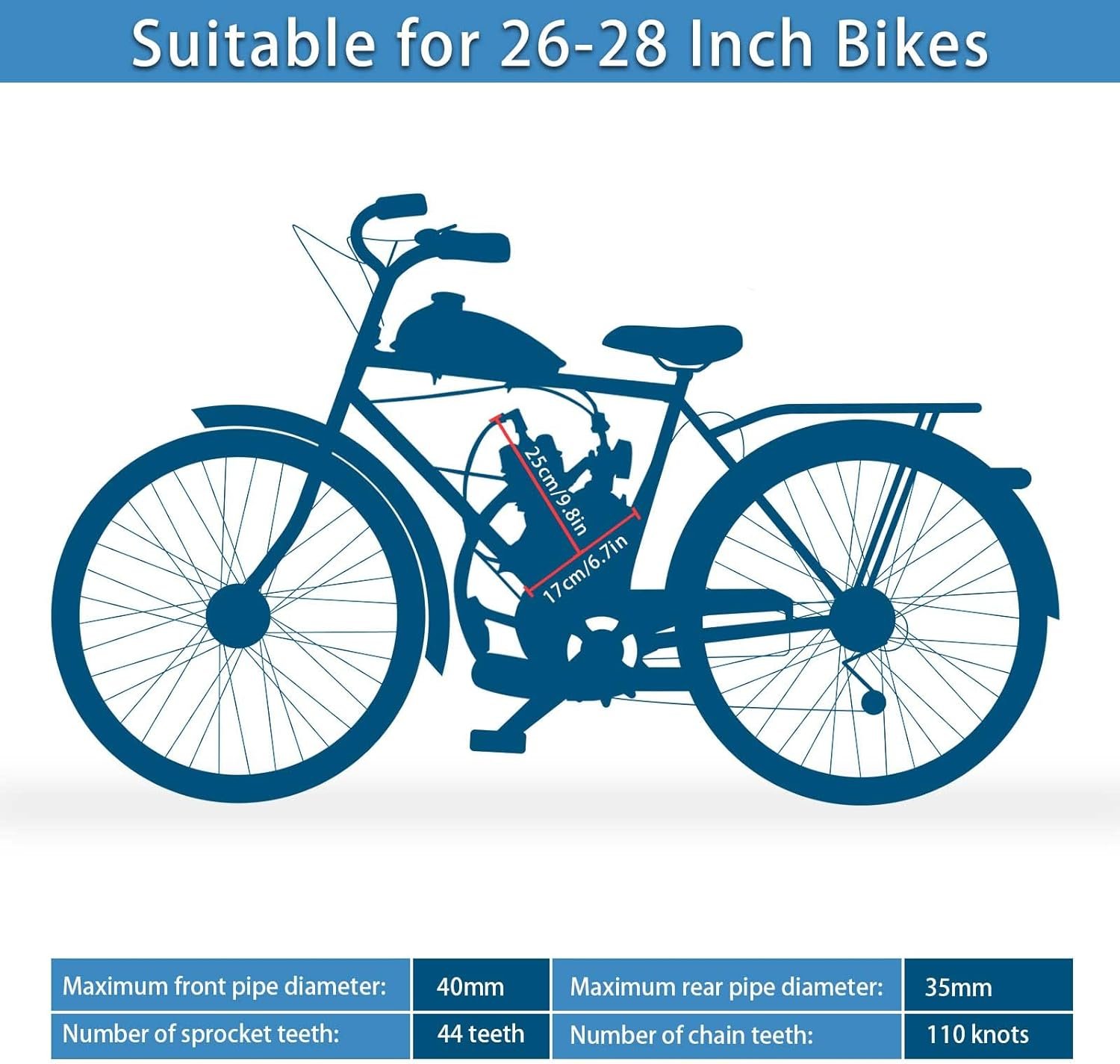

【Bicycle Motor Compatibility】IMAYCC bike engines are suitable for most 26-28″ wheeled bikes (mountain bikes, cruisers, motorcycles, road bikes) with V-frames. There should be 10″ and more clearance between the bottom bracket and top bar of the frame
【2.5L Black Teardrop Fuel Tank】Fuel type: 90#, Mixing Ratio of Fuel and engine Oil: 16:1 for new equipment, 20: 1 the run-in period (after running 500km). Driving on a smooth road at a speed of 20-25Km/h, fuel consumption of 2-2.5L per 100Km
