Intelligent Brushless Sine Controller 36V 48V 60V 72V 84V 2000W Maximum Current 50A Aluminium Alloy E-Bike Brushless Motor Controller for Electric Bicycle Scooter

Price: $49.00
(as of Nov 23, 2024 17:47:25 UTC – Details)

Type: motor controller
Material: aluminum alloy
Voltage: 36v-84v universal, after connecting the learning line, identify the voltage according to the battery condition.
Power: 1000W-2000w all can work
Current Limit: Rated current 45A, maximum output 50A.
Condition: Since the process is die-casting and injection molding, the product itself will have small flaws,
but we guarantee that the product and internal components are 100% brand new items.

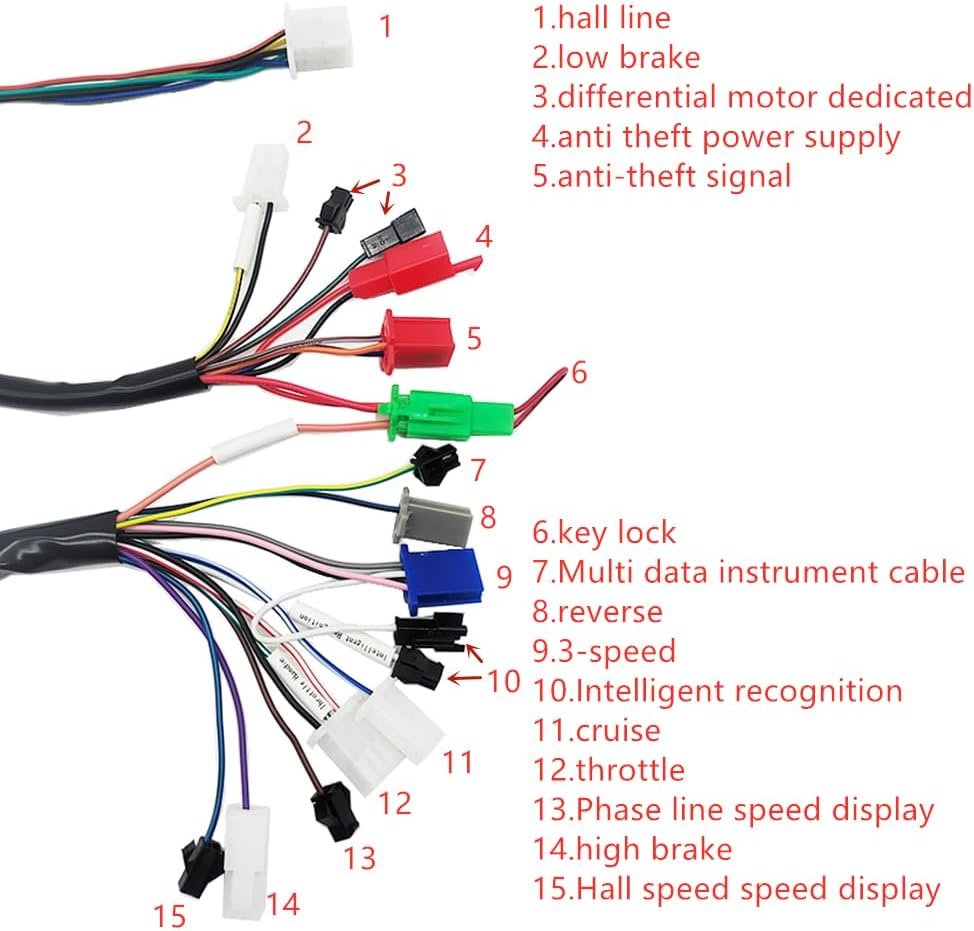

1.hall line
2.low brake
3.differential motor dedicated
4.anti theft power supply
5.anti-theft signal
6.key lock
7.Multi data instrument cable
8.reverse
9.3-speed
10.Intelligent recognition（self-learning line）
11.cruise
12.throttle
13.Phase line speed display
14.high brake
15.Hall speed speed display

how to connect ？

1. connect the battery

2. connect the controller throttle line（color to color），connect electric lock
（if your throttle not have key lock，controller key lock can be shorted）

3. connect the hall line(if motor without hall line, don’t need connect)

4.docking the two intelligent recognition lines, the wheel will forward or reverse.

(1.if wheel forward ,Separate the intelligent recognition line.

2.if wheel reverse, Separate the intelligent recognition line. Docking the intelligent recognition line again， if wheel forward ,Separate the self-learning line.)

5.other functions can be connected as needed.

Voltage: 36v-84v universal, after connecting the learning line, identify the voltage according to the battery condition.
Power: 1000W-2000w all can work
Current Limit: Rated current 45A, maximum output 50A.
Condition: Since the process is die-casting and injection molding, the product itself will have small flaws, but we guarantee that the product and internal components are 100% brand new items.
