Li ion 48V10Ah 480wh Replacement Battery 48 V 13Ah 17.5Ah 52V Upgraded Battery for Foldable eBike Wooken Electric Bike Replacement Battery KT-H09 (48V 13AH)

Price: $269.00
(as of Jan 31, 2025 10:38:21 UTC – Details)

Product Description

KT-H09

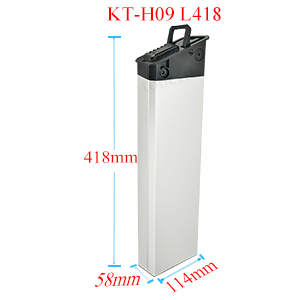

Dimensions 418mm x 114mm x 58mm Discharge Temperature -20~65°C Charging Temperature 0~45°C Charger Come with a free charger

48V KT-H09 battery fits for below ebikes:

For Wooken electric bikeFor DEEPOWER GR20For Ancheer AMA005876 (new version)For HITWAY BK10MFor Ouxi X8For SPEEDRID SE2 Note: Ancheer AMA005876 electric bicycle has two versions

KT-H09 battery is suitable for the new versionDCH-009 battery is suitable for older versions

KT-H09 and DCH-009 are two different types of batteries, and they are not compatible with each other. If you are unsure whether your electric bicycle is the new or old version of Ancheer AMA005876, please send us a battery picture and we will help you check it.

Can’t find your ebike model from above? No worry Please provide your specific e-bike model and send us photos of your old battery Send us photos of whole battery, letter under the handle, battery discharge pins, battery dimensions We’ll check if your battery is KT-H09, if not, we’ll check what model your battery is

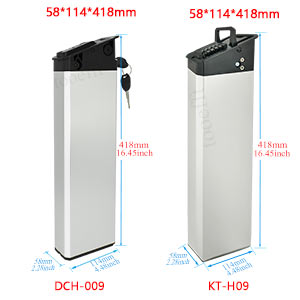

The difference in detail between battery KT-H09 and another looking similar battery DCH-009

DCH-009 and KT-H09 have the same size and a particularly similar appearance. DCH009 and KT-H09 are two different types of batteries, they are not compatible each other.

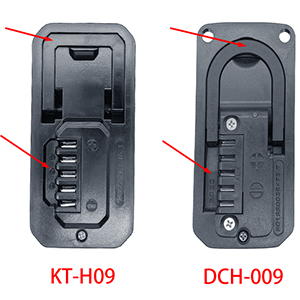

1. KT-H09 battery handle is circular, DCH-009 battery handle is square.2.KT-H09 and DCH-009 are only different from the top cover,they are the same everywhere else.Note: Please purchase a battery of the same model as your old battery.

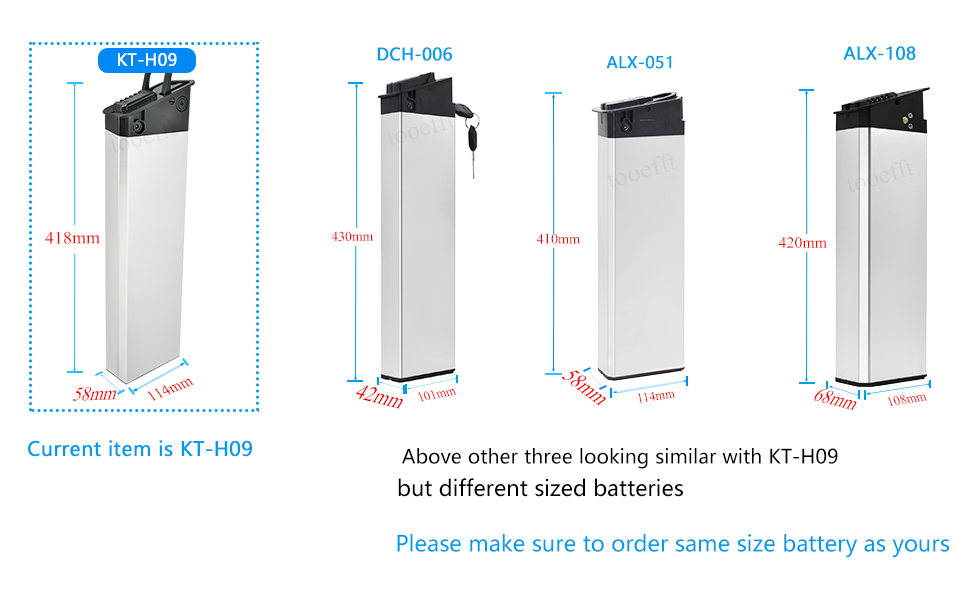

The difference in size between KT-H09 battery and other looking similar batteries DCH-006, ALX-051, ALX-108 and more:

There are 4 different types of batteries, their shell models are not compatible each other.

How to use the battery key to turn on the battery power before riding?

Step 1 : insert battery key

Red circle marks the position 1

Step 2 : turn the battery key to the right once

Function A. Lock the battery inside the bike frame tube. （battery power is off status）To anti-theft/save powerposition 2： Power OFF position

Step 3 : Turn the battery key to the right again

Function B. The lock is also the battery’s power (on/off) switch. (battery power is ON status)To turn on the battery’s power switchposition 3: Power ON position

Tips:

1. Please confirm the address, we only send to the land, not the island.

2. After receiving the battery, please fully charge it.

3. Before purchasing, please pay attention to the size of the battery.

4. If you need a return/change, please tell us first and then return the package to the address we notify you.

5. If you have any questions, please tell us. We are more than happy to serve you!

‍🚴‍【Parameter】This item is KT-H09 L418mm Battery, Size:58*114*418mm(2.28 *4.48* 16.45inch). Built in Brand top quality grade A cells. Rated voltage 48V/ 52 Volt optional, 48V battery rated capacity 10Ah/13Ah/17.5Ah optional; 52V battery rated capacity 17.5Ah. 48V 13Ah 17.5Ah and 52V 17.5Ah fits for 48V 0-1000W motor. 48V 10Ah fits for 48V 0-750W motor. Charger: 2A/3A
🚴‍【Fits for ebike】48V/52V KT-H09 L418mm Battery compatible for Wooken electric bike, HITWAY BK10M, Ouxi X8 , DEEPOWER GR20, Ancheer AMA005876(new version), SPEEDRID SE2 and many electric bicycle/ebikes, please compare the battery size and most important is to check the model number which under your original battery’s handle, it should be KT-H09. it won’t compatible with other ebikes if your original battery without KT-H09.
👍【SAFETY AND ENVIRONMENTAL PROTECTION】Equipped with a 20A/30A BMS protection board, prevent overcharge, overdischarge, overcurrent, and short circuit to ensure user safety in extreme usage scenarios.
🚴‍【 ≥80% Capacity After 800 Cycles】Tooefft has implemented a strict high quality management policy:Every Lithinum battery have pass the QC appearance and function test before shipment. The Ebike battery charge cycle exceeds 1000 times, life expectancy of up to 5 years. 👍Each pack have ran through a full charge and discharge test in produce, make sure you getting every amp hour you paid for.
👍【BEST AFTER-SALES SERVICE】 We are factory direct sales,we have more than 10 years of lithium batteries production exprience.If you have any questions or suggestions about this product, please feel free to send us an email via Amazon Messages, and we will provide you with a good solution within 24 hours. 👍【One Year Warranty/ Lifetime Technical Support】One year quality assurance, whenever has any problem, please contact us for help.
