Motor Brushless Controller E-Bike, Waterproof LCD Display Panel Motor Brushless Controller Electric Brushless Controller Kit(24V-48V)(36V/48V 350W)

Price: $56.10
(as of Nov 23, 2024 13:53:13 UTC – Details)

Product Description

Features:

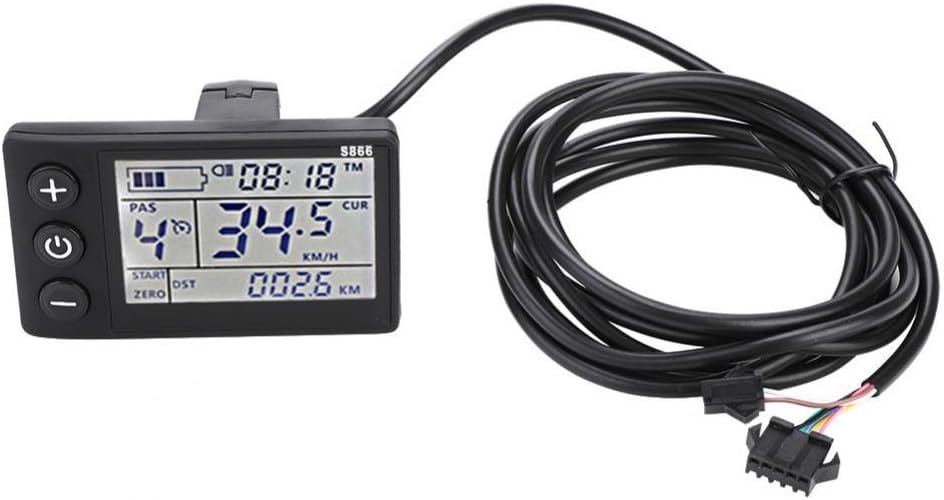

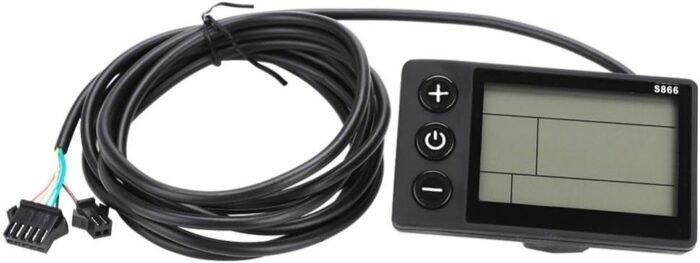

This display adopts good quality materials, lightweight, rainproof, sturdy and durable.LCD display can clearly show the state and data, backlight enables you to see scree clearly in dim environment, buttons for quick operation, easy to use.The controller is brushless type, working silently and sensitive to the state of electric bike.Easy to install and use, comes with mount for LCD display and suitable for 22.5mm handlebar.Can set the power‑on password, control the lights, cruise and boost. The vehicle speed is divided into gears, the number of gear positions is 3/5/9 gears optional, and turn the handle can be selected to be divided into gears or not.Suitable for electric bicycles, scooters.

Specification:

Material: Plastic + LCD + Metal

Color: Shown as picture

Options: 1#24V-36V; 2#36V-48V

Power: 250W/350W

Low-voltage Protection: 1#24V-36V: 19V/30V; 2#36V-48V: 30V-41V

Waterproof: Rainproof

Controller Size: Approx. 8.8 x 5.2 x 3cm / 3.46 x 2.04 x 1.18inch

Display Size: Approx. 8 x 5cm / 3.15 x 1.97inch

Weight: Approx. 332g

How to Use

Get the product, please be sure to match the phase first:

The intelligent identification line to plug up the identification of the motor, identification line is two green lines, plugged on, pay attention to the car overhead up, the motor will automatically run, at this time the direction of rotation of the motor if the correct, then run 10 to 15 seconds to disconnect the identification line, if the direction is the opposite, then disconnect the identification line and then plug back, the direction of the motor will be changed to positive rotation, then run 10 to 15 seconds, disconnect the identification line, the direction of the motor will be changed to positive rotation. Then run for 10‑15 seconds, disconnect the identification line, complete. After completing the identification, identification line to maintain the disconnected state, do not plug back in

Package List:

1 x LCD Display

1 x Controller

Note:

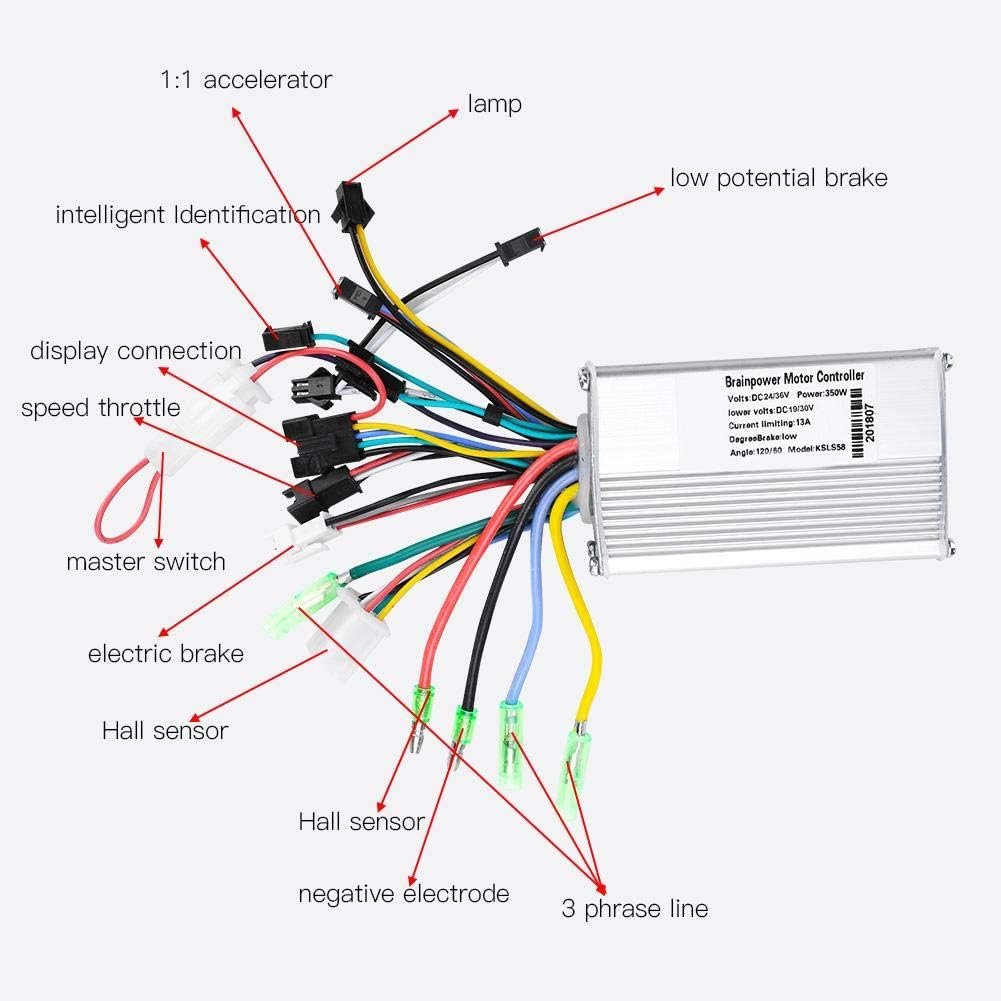

Each cable is labeled with color for different uses.

Red: power positive electrode

Black: power negative electrode

Yellow: power output

Brown: lamp positive electrode

White: lamp negative electrode

Blue: indicator signal

Green: signal receive

Please note that the controller model will be sent randomly, and make sure you will not mind before ordering.

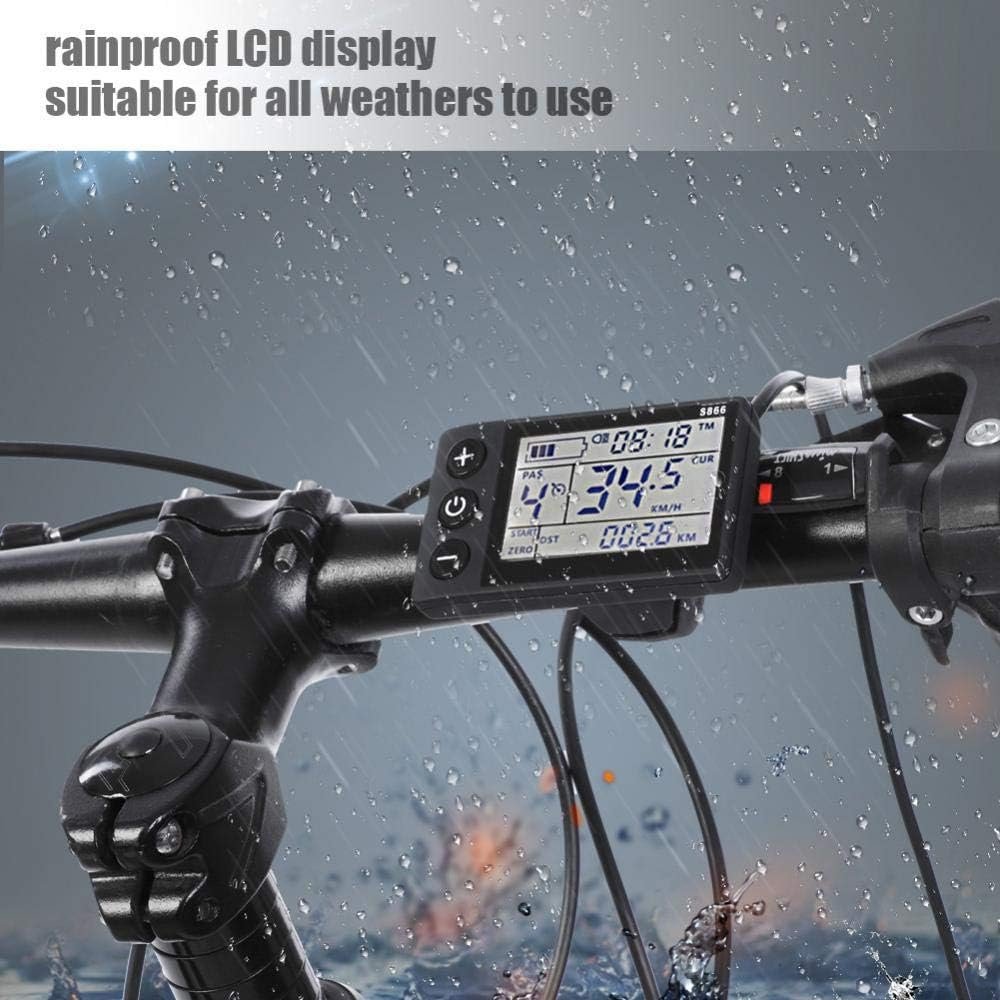

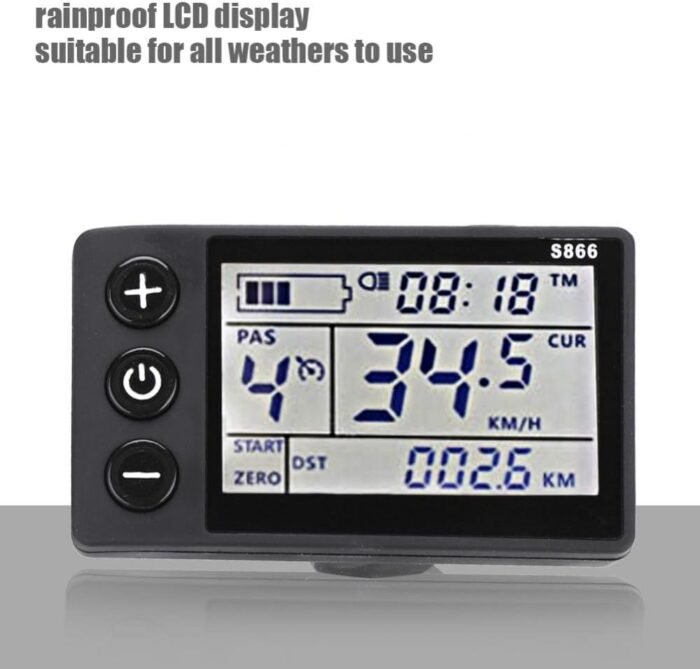

[LCD Display and Rainproof]: LCD display can clearly show the state and data, backlight enables you to see scree clearly in dim environment; Rainproof LCD display, suitable for all weather to use
[Silent Work and Sensitive]: The controller is brushless type, working silently and sensitive to the state of electric bike; Silent work can cause very little sound interference on your ride or work

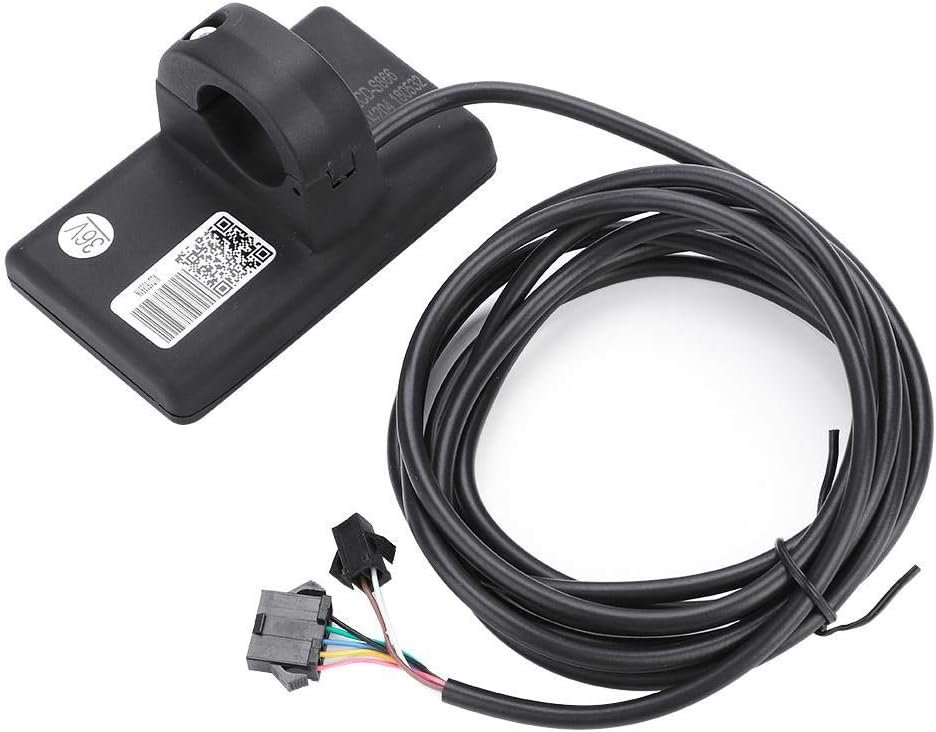

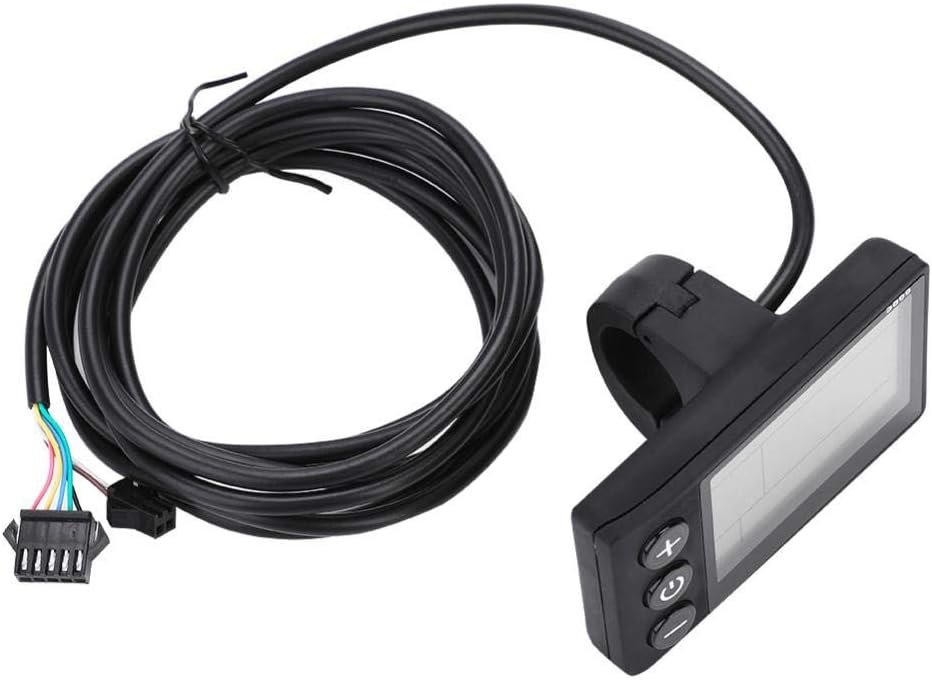

[Easy to Install]: The controller is easy to install and use, comes with mount for LCD display and suitable for 22.5mm handlebar, it is suitable for electric , cars, scooters
[Good Quality]: This display adopts good quality materials, lightweight, rainproof, sturdy and .The outer casing of the product is ABS and the metal frame,The instrument adopts shell, vertical screen layout, beautiful appearance
[ Absolutely Satisfactory Guarantee]: If you have any problems or suggestions about this product, please feel to us by email; We will surely give you a satisfactory solution and never let you suffer losses
