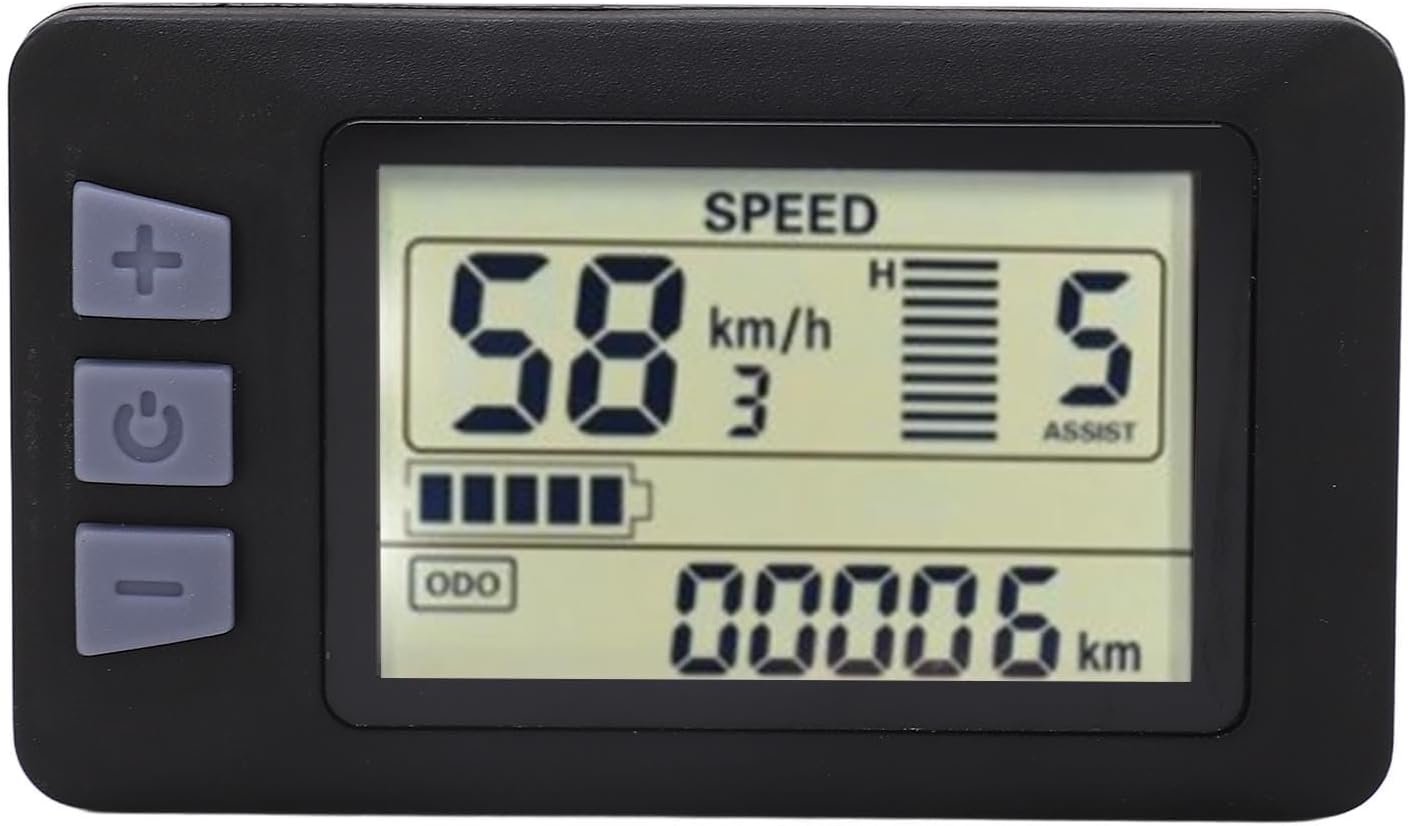

Uxsiya Electric LCD Display Panel 24V 36V 48V 60V – Multifunctional, Wire, Suitable for DIY Electric Bicycles, Scooters

Price: $43.59 - $39.69
(as of Feb 08, 2025 10:54:19 UTC – Details)

Product Description

Uxsiya P3H Electric Bike LCD Display Panel 24V 36V 48V 60V – Multifunctional, – Waterproof Wire, Suitable for DIY Electric Bicycles, Scooters

Features:

[Multifunctional display] – Keeps you informed of useful data while riding your electric bike.[Wide compatibility] – Compatible with 24V, 36V, 48V, and 60V voltages. Suitable for various and brands of electric bicycles.[Highly versatile] – Suitable for DIY electric bicycles, electric bikes, electric scooters, and more.[Easy installation] – Quick and effortless installation without the need for tools. Fits 22.2mm handlebars.[and waterproof] – Made of lightweight and sturdy ABS material, providing better protection for internal circuitry. Waterproof design ensures durability.

Spec:

Item Type: Electric Bike LCD Display PanelProduct Material: ABSWeight: Approx. 104g / 3.7ozCompatible with: 24V 36V 48V 60V

Package List:

1 x Electric Bike LCD Display Panel1 x Instructions

Features of LCD Meter:

Adjust the brightness of the backlight: through the settings can be adjusted from dark to bright instrument backlight, divided into 1 ~ 3 levelsIntelligent identification of battery voltage: Wide-voltage universal, set different voltage values, automatically switch to the corresponding voltage parametersSuch as: set to 60V, the power display for the 60V battery parameters and change the controller to 60V parameters at the same time, can set the range 24V/36V/48V/60VHibernation and time setting: can be set to no hibernation, or with hibernation and set the time range of 1 to 60min.For example, if it is set to 10, the car will automatically shut down and save power if there is no action in 10 minutes.Setting gear mode: set the gear mode as 0 to 3 or 0 to 5, 0 gear offAccurate setting of speed parameters, more accurate speed display: By setting the wheel diameter of the car (in inches), the number of poles of the motor or the external speed test single Hall mode and other parameters, the car speed is accurately displayed. If there is a hall motor connected to the hall, the speed is measured by the motor hall; if there is no hall motor without speed measurement hall, the controller internal analog signal speed; if there is a hall or no hall motor with internal or external speed measurement hall, the speed is measured according to the hall pulse signal, and the speed is displayed when the car is moving, and the speed is displayed only when the motor is running in the other modes.Limit the speed of the car, over-speed stop: set the parameter to a certain value, the motor stops running when it exceeds the threshold value, and the motor can be turned on again after the speed drops to a certain value.Setting start mode: zero start/non-zero start selection, set to zero start state, the car can be accelerated directly by the handlebar in the stationary state; non-zero start state, the handlebar is invalid when the car is in the stationary state, and the handlebar opens effectively when the speed is greater than 5km/h.Setting drive modes: 3 drive modes: 1 pure power mode, the mode is only power and the handlebar is invalid 2 pure electric mode, the mode is only the handlebar power is invalid; 3 power and handlebar are both available.Adjust the sensitivity of the power assist: through the settings can be adjusted to the sensitivity of the power assist for 1 ~ 24, 1 the most sensitive, 24 is delayed for the longest time, that is, after receiving the power assist signal to delay the motor to start the output timeChange the strength of the power: through the settings you can adjust the strength of the power for 0 to 5, 0 strength is the weakest, 5 strength is the strongest; that is, the power signal frequency of different motor output power size from weak to strongCompatible with different number of magnetic points of the code disk: according to the different types of disks, you can set the number of magnetic points for the 5 magnetic/8 magnetic/12 magnetic, booster start and accelerate more smoothly and comfortablyMeter set current value and low voltage protection value of controller: Adjusting the current value of controller can choose the best value to make the power suitable and the mileage maximized, and setting the low voltage protection value can be matched with the battery protection board to choose the best value to make the battery fully discharged and the mileage longer.Total Mileage Accumulation and Zeroing: The total accumulated mileage can be zeroed and reset through the setting.Setting automatic cruise control: Set the car with or without automatic cruise control through parameter P17, with automatic cruise control, the car at a certain speed for more than 6 seconds will automatically keep the speed running without holding down the accelerator paddle, set to 1 with cruise control, set to 0 without cruise control.Headlight control: headlight interface in the instrument, directly connected to the lights, voltage and power supply consistent, long press the instrument “plus” button control, long press to open, long press again to close, cycle analogousSetting the power-on password: you can set the power-on password or not, with the power-on password state of the instrument needs to enter the password when powering on to enter the operating interface and work normally, the password can be modified when there is no password mode, power on the interface automatically enter the interface and work in the setup interface long press the power-on key and plus key to enter the password settings, press the power-on key to switch the password bit by plus and minus keys to adjust, a total of 4 digits, a total of 4 digits. Press the power on key to switch the password bit, adjusted by plus and minus keys, a total of 4 passwords, setup is complete, long press the power on key and plus key to save and exit to the setup interface.Control 6km/h boost and real-time cruise: press and hold “minus” key in stationary state to automatically enter cruise boost at 6km/h, press and hold “minus” key in running state to enter cruise at current speed.

[Multifunctional display]: Keeps you informed of useful data while riding your electric bike.
[Wide compatibility]: Compatible with 24V, 36V, 48V, and 60V voltages. Suitable for various and brands of electric bicycles.
[Highly versatile]: Suitable for DIY electric bicycles, electric bikes, electric scooters, and more.
[Easy installation]: Quick and effortless installation without the need for tools. Fits 22.2mm handlebars.
[Waterproof]: Made of lightweight and sturdy ABS material, providing better for internal circuitry. design ensures durability.
