YUNNY Brand HUDAMZKY Ebike Cable Extension Julet Female Male 2 3 4 5 6 pin Ebike Extension Connector Waterproof Plug for Electric Bicycle Display Throttle PAS Ebike Parts Extend Cable(4Pin Female)

Price: $7.99
(as of Mar 21, 2025 12:33:49 UTC – Details)

Note: If you need to connect and use, please purchase a male bus

Parameter:

• Product model: JL-F-Z209AT.Z309AT.Z409AT.Z509AT.Z609AT
• Specification: Male (2pin/3pin/4pin/5pin/6pin extension cable)

Female (2pin/3pin/4pin/5pin/6pin extension cable)

• Temperature range: -40℃～+85℃
• Rated voltage: 200V AC
• Rated current: 3A (determined by the cable according to the specific situation)
• Contact resistance: ≤10mΩ
• Insulation resistance: ≥10MΩ under normal and humid conditions
• Withstand voltage: AC 200V 50Hz no breakdown or flicker for 1 minute
• Contact: Copper alloy tinned/gold plated
• Protection level: IP66
• Mechanical life: 200 times
• Maximum outer diameter: 9mm
• Total length: 900mm
• Use wire specifications: 0.05mm-0.2mm 2
• Application: Power and signal transmission of electrical and electronic equipment (Light/Throttle/Ebrake/Display)

Packing list:

• Single head waterproof signal cable*1pcs

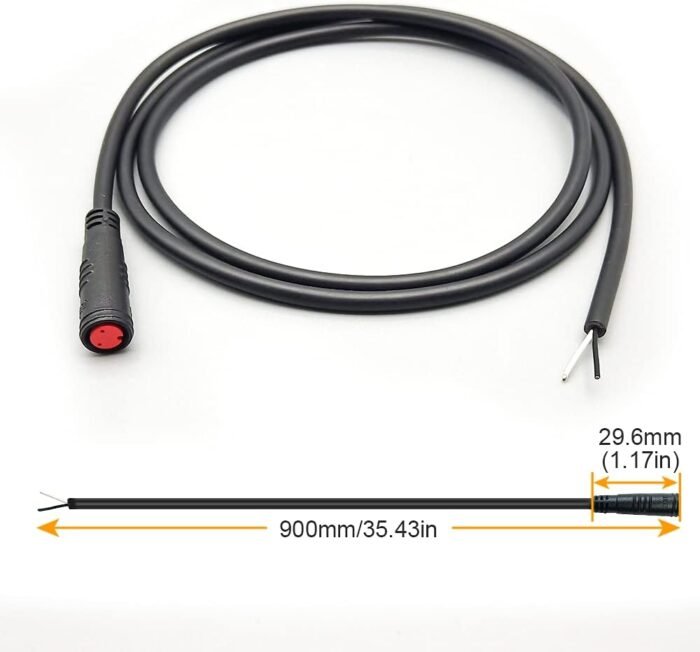

The 900 mm cable length is enough to modify the lights, displays, Ebreak and throttle on electric bicycles, electric motorcycles or electric scooters

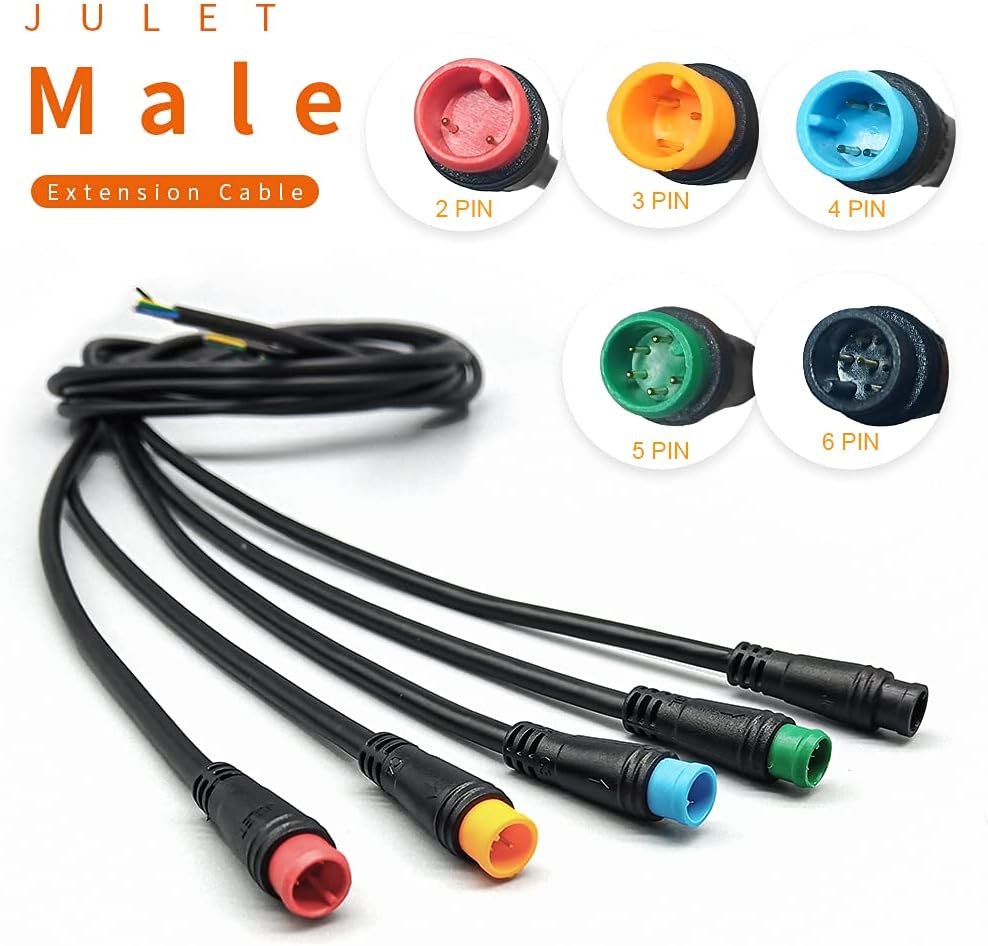

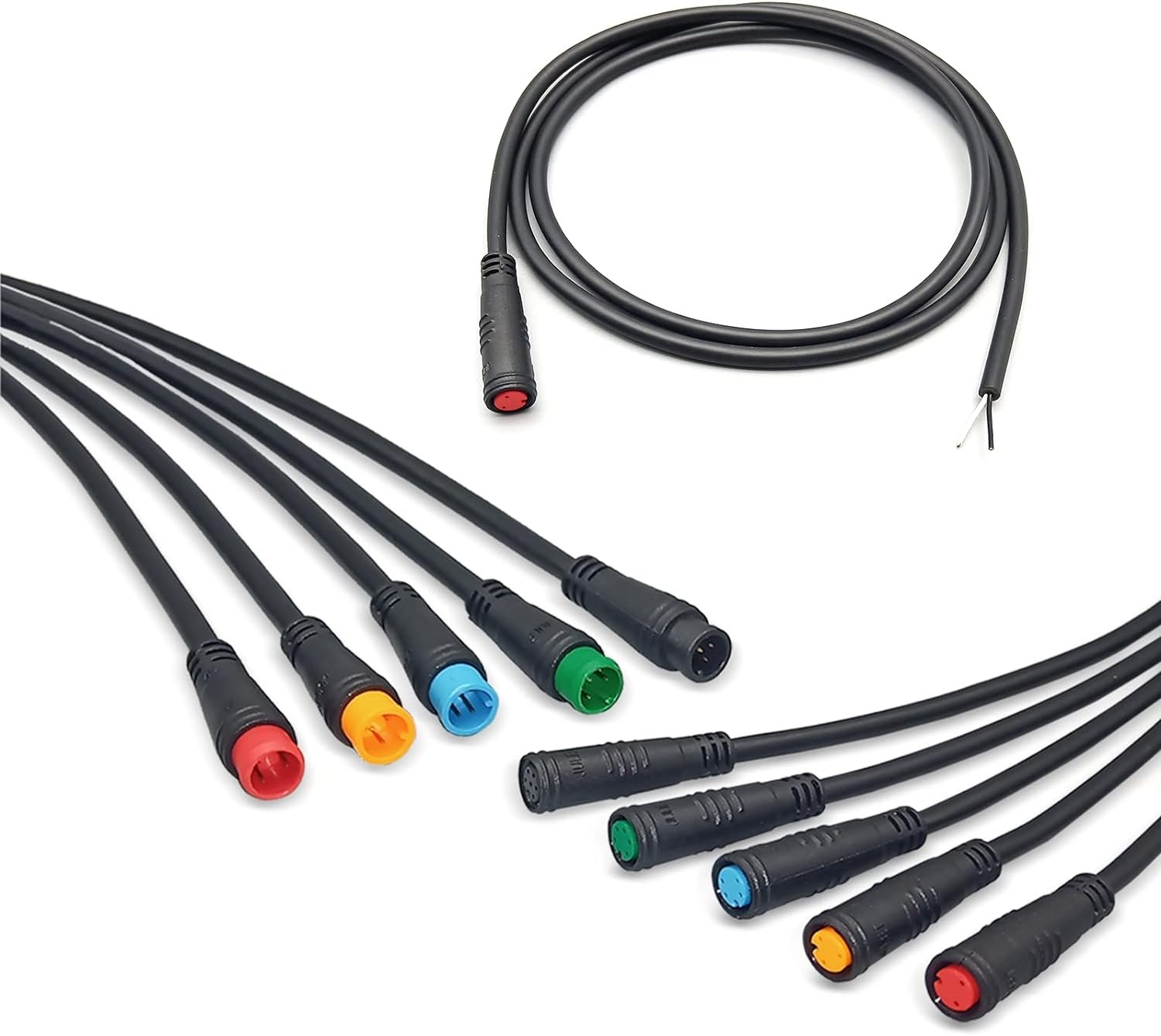

There are 2Pin/3Pin/4Pin/5Pin/6Pin Connectors with Multiple Specifications to Make Your Modification Easier

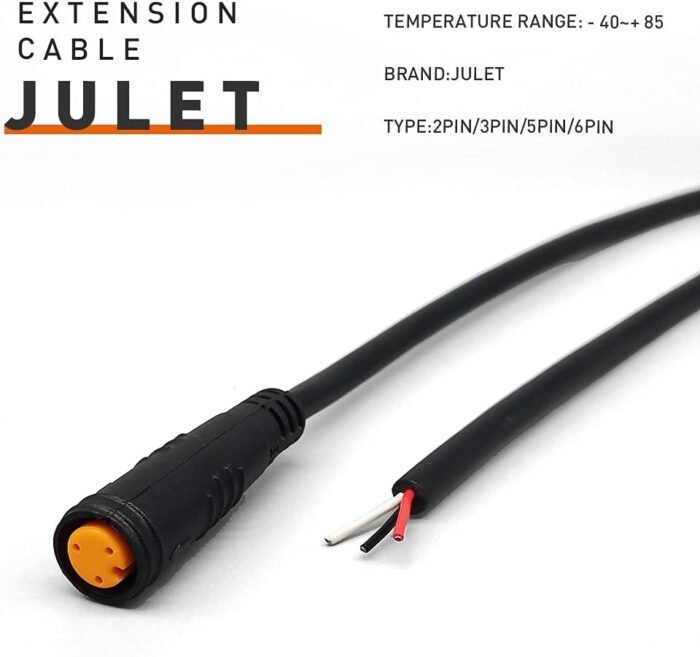

The single-head waterproof signal line is divided into male and female connectors, and the other end is the signal line of the corresponding color, which can be used according to the drawing.
It Can Be Used not Only On Electric Bicycles, But Also Where You Need to Use Signal Cables in DIY Can Meet Your Needs.
Waterproof grade IP66, when the cable is exposed, you don’t have to worry about short circuit or water ingress. It can be used perfectly in rain and snow
