ZOOM Ebike Hydraulic Disc Brake Set: H876E 4-Pistons Power-Off Electric Bike Brake Kit with 2-PIN Sensor Included 160mm/180mm Rotors and Mounting Adapter

Price: $139.99
(as of Dec 22, 2024 04:32:00 UTC – Details)

Product Description

Just a simple installation makes for the safest and most reliable braking! Whether you’re hitting the trails or cruising through the city, upgrade your bike’s braking performance with ZOOM 4- pistons E-Bike Hydraulic Disc Brake Set, and make your rides more enjoyable.

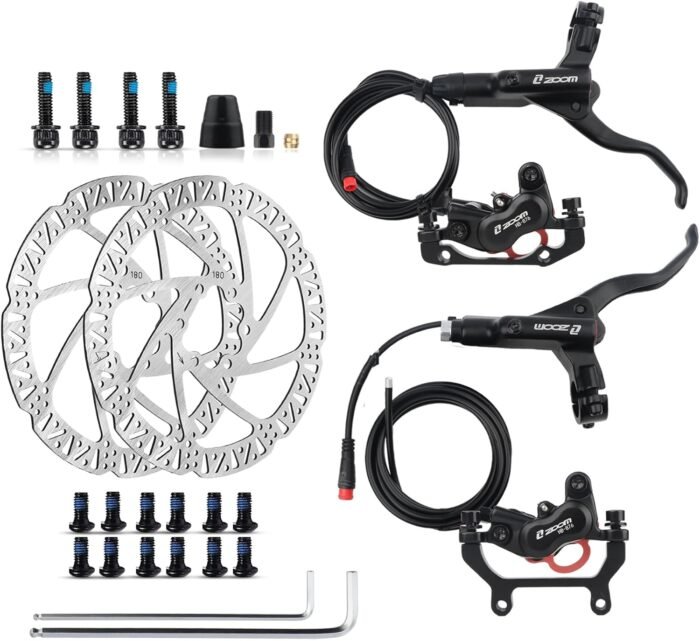

Zoom E-Bike Hydraulic Disc Brake Set

Model HB-876E Rotor Available ø160/180mm Mounting position Left side Type of Connector Standard 2-PIN Connector System Open System 2-Piston 160mm Rotor Adaptation Front ：F-160mm/R-140mm. Rear ：F-180mm/R-160mm 180mm Rotor Adaptation Front ：F-180mm/R-160mm. Rear ：F-203mm/R-180mm Hose Length Front: 37.4 inches Rear： 72.8 inches Material Forged Aluminum Lever & Bracket Pads High-Performance Metal Composite Materials Fluid Non-Corrosive Mineral Oil Handlebar diameter 22 mm / 0.87 inch

NOTE

Please pay attention to whether the length of the hose ,and the 2-pin connectors matches your electric bicycle. The rear caliper hose and control lever are separated for easy internal routing.The hose has been pre-coated with mineral oil and can be used directly without oiling.Do not remove the “Red piston block” when installation, otherwise it will cause oil leakage or scrap the oil hydraulic disc.

ZOOM HB-876E Electric bike hydraulic brake set adopts a left front and right rear braking method, which fits the habit of most American people.
Powerful Braking:4 pistons in each brake caliper, it delivers 20% higher braking force and 150% higher wear resistance compared to dual-piston brakes of the same level.
The default wire is a waterproof interface=JULET 2-pin connector (male) .Automatically cut-off power during braking,ensuring swift and efficient braking response.

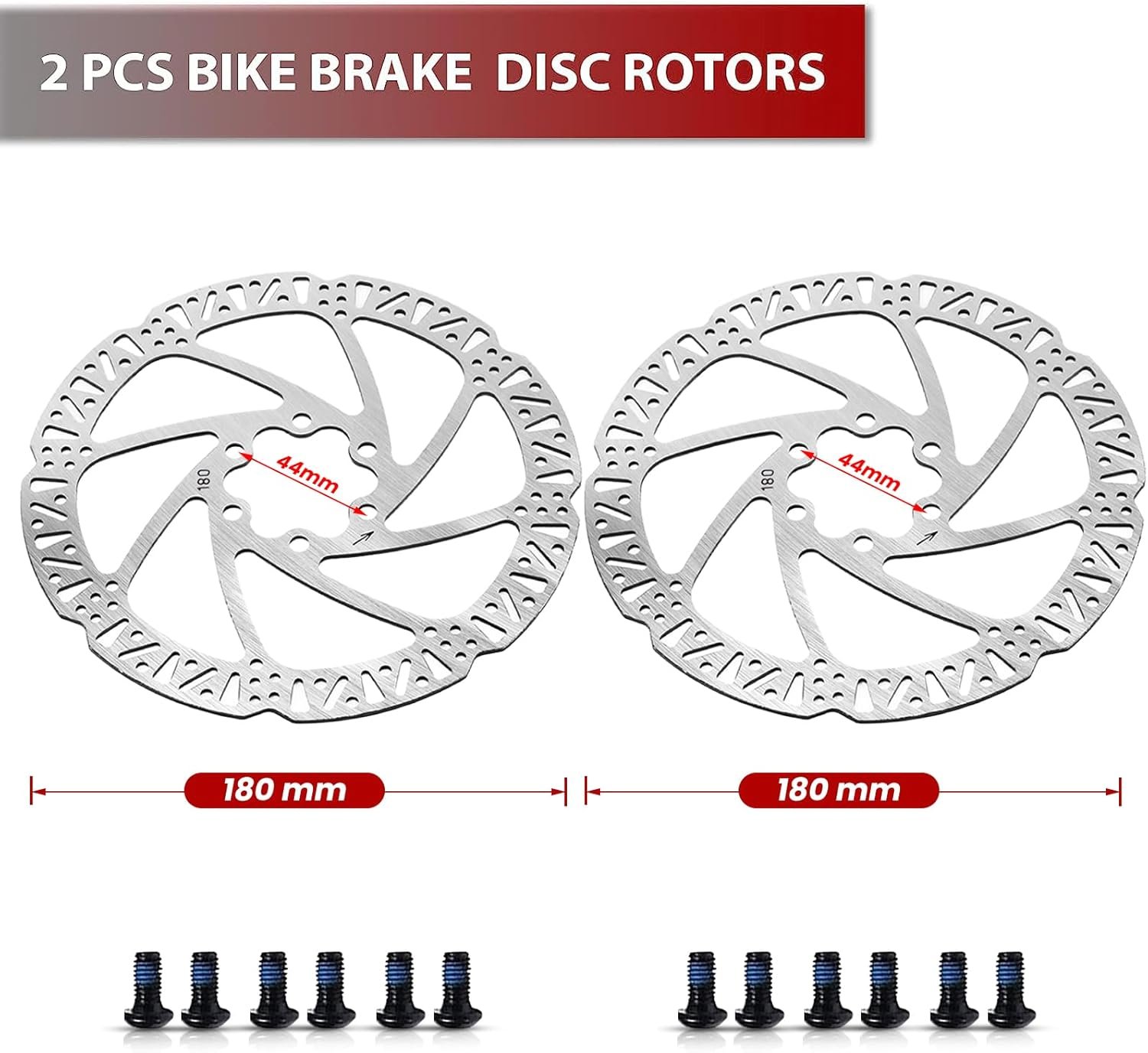

Compatible 180mm rotor, IS/PM universal mounting adapter,ZOOM E-bike hydraulic disc brake kit is specifically designed for e-bike models with caliper left side mounting.

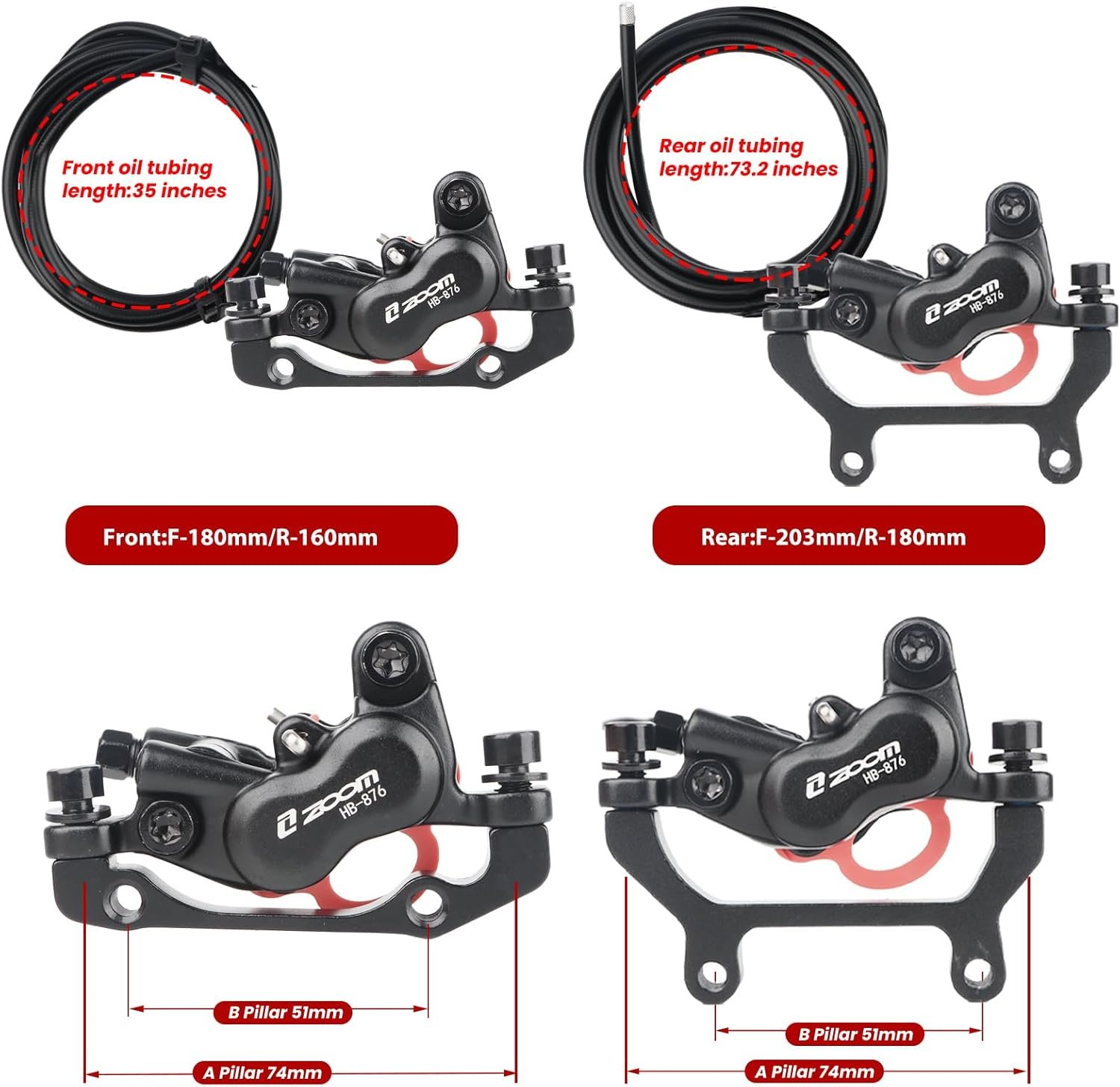

Left front hose length of 37.4 inches (950 mm) and the right rear hose length of 72.8 inches (1850mm),It’s crucial to verify whether the oil tubing length matches your electric bicycle. The hose comes pre-coated with environmentally friendly mineral oil, ready for immediate use without additional refueling.
Note: The rear caliper hose and lever are separate to facilitate the internal routing arrangement.
