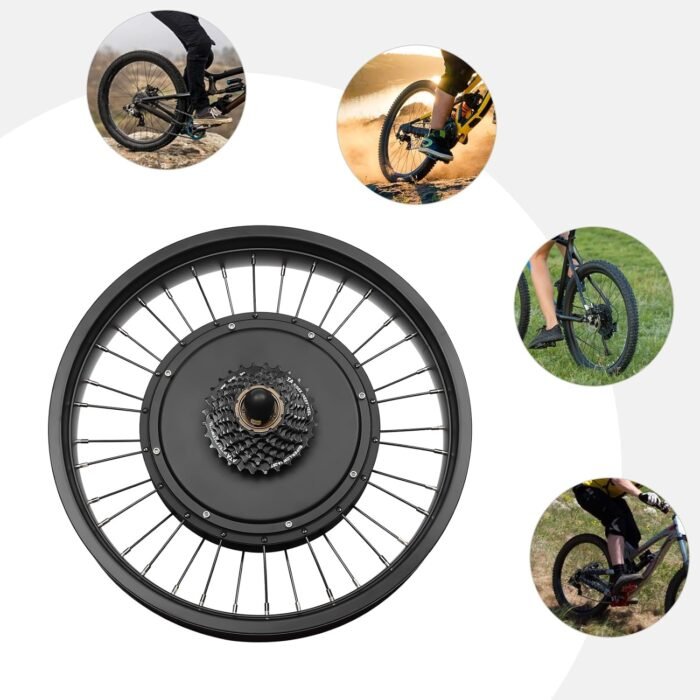

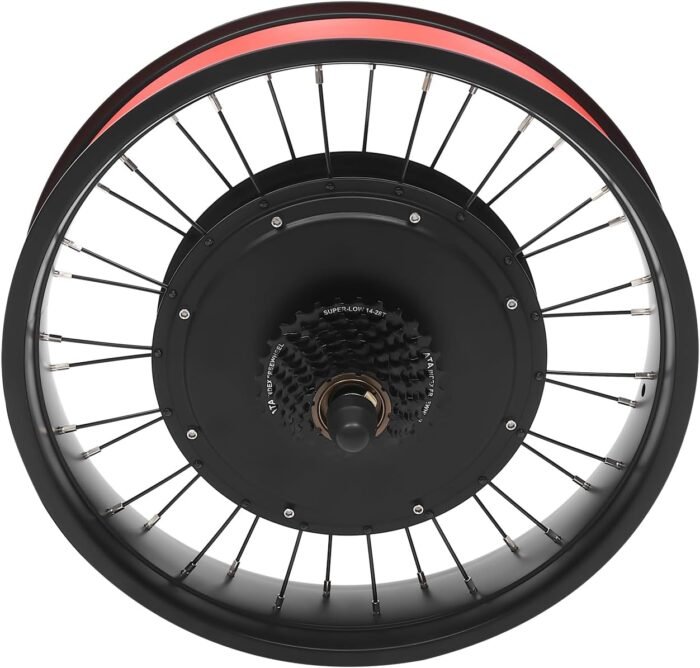

20 Inch Fat Tire Electric Bike Rear Wheel Conversion Kit, 48V 1000W E-Bicycle Hub Motor Tool with PAS & LCD Display

Price: $209.99
(as of Feb 12, 2025 01:47:58 UTC – Details)

Description
Do you still think riding in poor conditions can be difficult? Let us make your ride easier. Our e-bike conversion kit is an upgrade solution for cyclists who want extreme performance and a personalized experience. Not only will the bike motor kit dramatically improve the electric power performance of your existing bike, but the ebike conversion kit will also take your riding experience to a whole new level, making both urban commuting and mountain adventures easier and more enjoyable.


Application
This electric bike kit is suitable for snowmobile and bicycle conversions with a wheel size of 20inch.


Specification
Material: Iron, Aluminum
Color: Black
Process: Baking
Assembly Required: Yes
Motor Type: Brushless Gearless Motor
Hall Sensor/Temperature Sensor: Yes
Brakes: Low Level
Brake: Disc Brake
PAS: 1:1
Speet: 1.1-4.2VDUAL Mode
Voltage: DC 48V
Power: 1000W
Current: 30±1A
Adaptable Wheel Size: 50.8cm/20in
Wheelbase: 10mm*14mm/0.39in*0.55in
Magnet Height: 30mm/1.18in
Winding: 11*5
Waterproof Grade: IP54
Speed: 520rpm
Max. Speed: 38-45km/23.6-27.96mile/h
Cable Size: 2mm²
Maximum Torque: 40N.m
Gear Opening: 135mm/5.31in
Package Size: 50*50*26cm/19.69*19.69*10.24in
Gross Weight: 13kg/28.66lbs
Net Weight: 12kg/26.46lbs

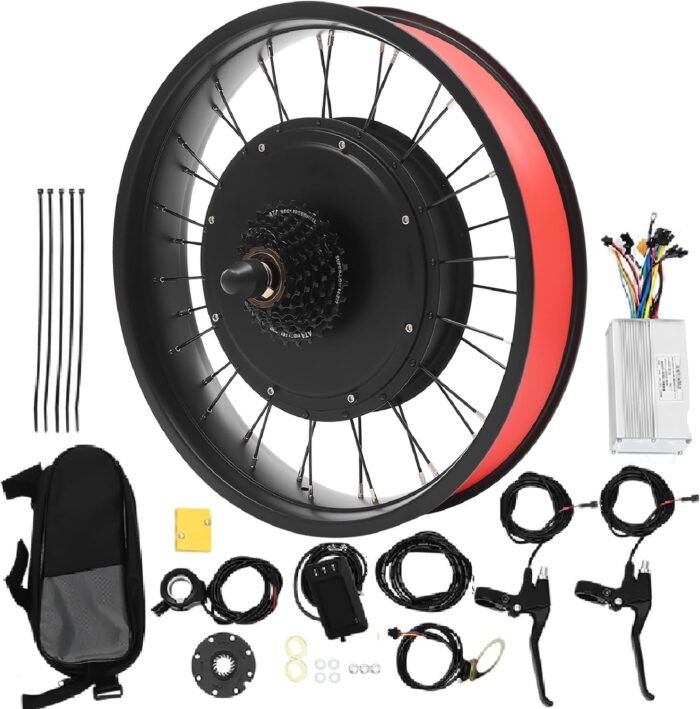

Package Included
1* Motor Wheel
1* Controller
1* Brake Lever Set
1* Thumb Grip
1* LCD Display
1 Set* Pedal Assist Sensor
1* English Manual
Other Accessories for Assembly


Notes
1. Please read the operating manual completely before use. And pay particular attention to the safety instructions included.
2. Please note that the mileage mainly depends on the capacity of the battery, our products are not equipped with battery.
3. Please allow the slight color difference caused by the shooting light and 1-3cm error due to manual measurement, and make sure you do not mind before ordering.
✅Complete Kit: This electric bike kit contains almost all the parts you need to modify your bike without the need to purchase them separately. Matching kits will provide you with more stable and consistent performance
✅Strong Power: Equipped with a 1000W high-efficiency DC brushless motor, it instantly explodes with powerful power to easily cope with the challenges of steep slopes.The bicycle motor kit can reach a maximum speed of 23.6-27.96 miles/h, reducing travel time and allowing you to experience speed and excitement
✅Front-wheel Drive Design: The front-wheel drive design provides direct power transmission, reduces energy loss, and improves the vehicle’s maneuvering flexibility and responsiveness, allowing for a better driving experience whether you’re taking a sharp turn or climbing a hill
✅Thoughtful Design: The pedal assist sensor (PAS) allows you to ride your e-bike without throttle response, ensuring that you can operate your e-bike in two ways. To avoid uncomfortable wrist positions, you just need to pedal whenever and wherever you want

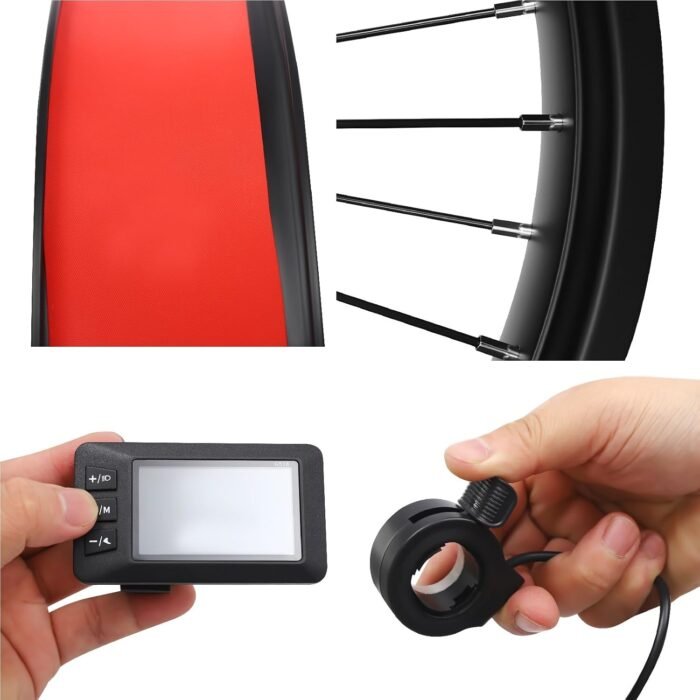

✅LCD Display: It can display the basic information, such as battery indicator, speed, single mileage, total mileage, speed gear, PAS gear, brake signal, cruise function, 6KM/H boost function, and error code. It helps you to know the riding status at any time
