Price: $28.59
(as of Mar 12, 2025 05:17:54 UTC – Details)

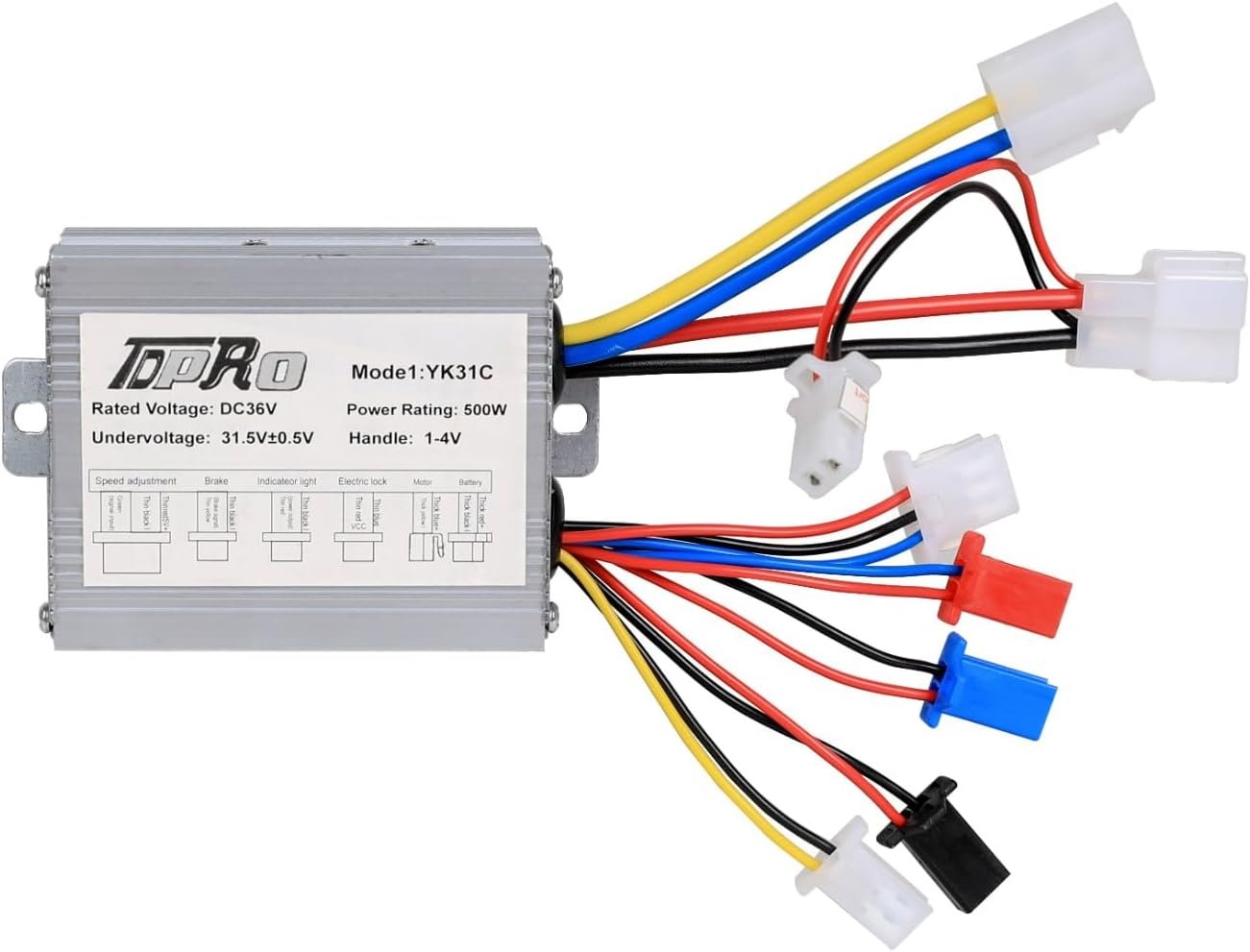

Enhance your electric bike’s performance with our 36V 500W E-Bike Motor Controller, designed to provide reliable and efficient control for your ride. This controller features a rated voltage of 36V DC and a rated current of 27±1A, ensuring optimal power delivery and efficiency with a remarkable 95% conversion rate.
Compatible with many 36V bikes with up to 500W motors, this controller is versatile and easy to install. It includes 8 connectors, covering essential functions such as battery, motor, brake, brake light, indicator light, ignition lock, charger port, and derailleur (throttle). For normal operation, simply connect the four necessary groups of cables: battery, motor, ignition lock, and throttle. Additional optional functions can be hooked up according to your specific needs.
Designed with under voltage protection at 31.5±0.5V, this controller helps safeguard your motor and battery from potential damage. The speed regulator supports a throttle range of 1-4V, allowing for precise control over your e-bike’s speed.
Upgrade your e-bike’s control system with this high-quality, efficient controller and enjoy a smoother, more reliable riding experience.
High-Efficiency Controller: Rated voltage 36V DC, rated current 27±1A, with a 95% conversion efficiency for optimal performance.
Compatible with 36V Bikes: Designed for e-bikes with 36V 500W motors, ensuring compatibility and reliable operation.
Under Voltage Protection: Features under voltage protection at 31.5±0.5V to safeguard your motor and battery.

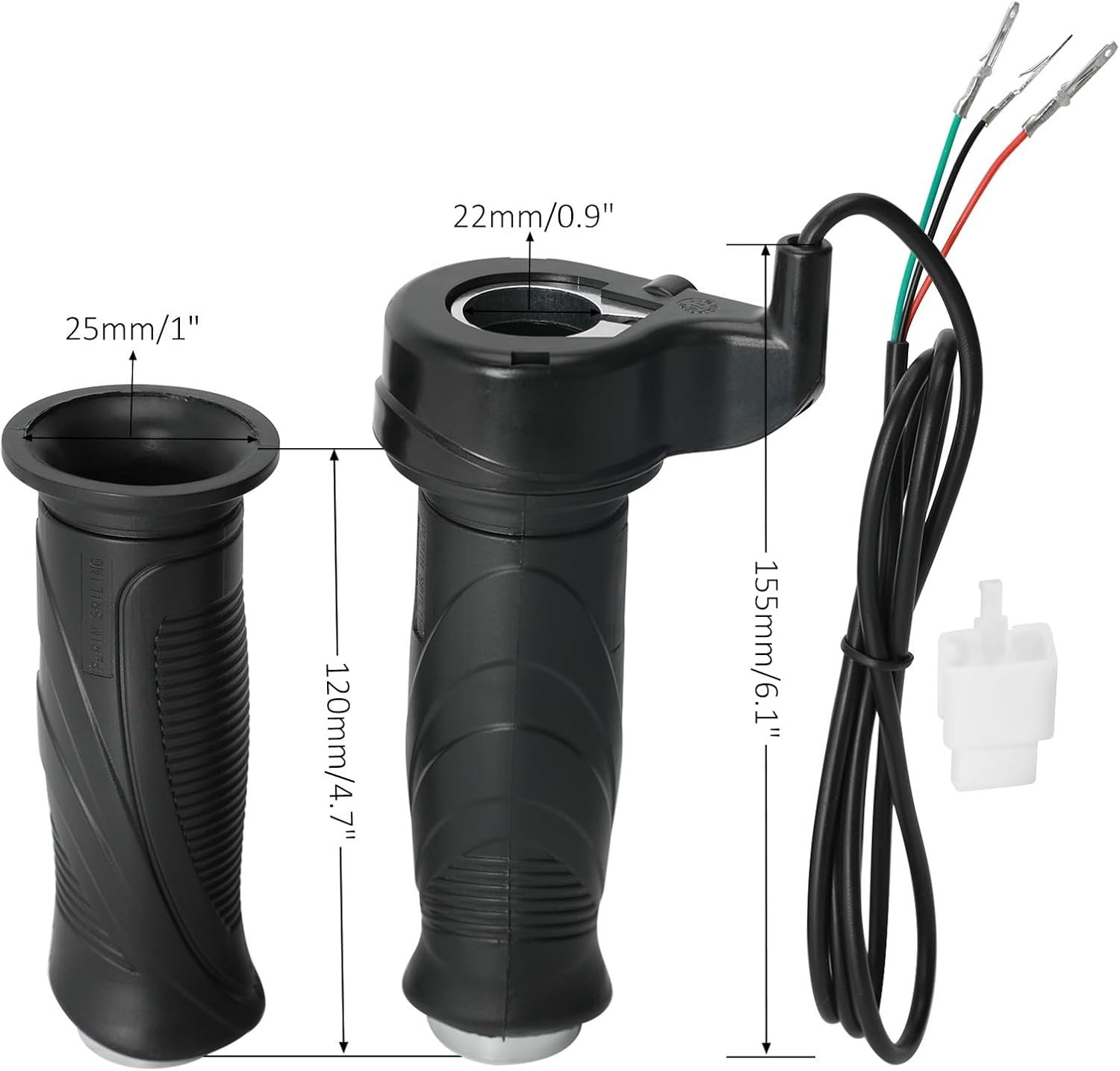

Speed Regulator (Throttle): Supports a throttle range of 1-4V for precise speed control.

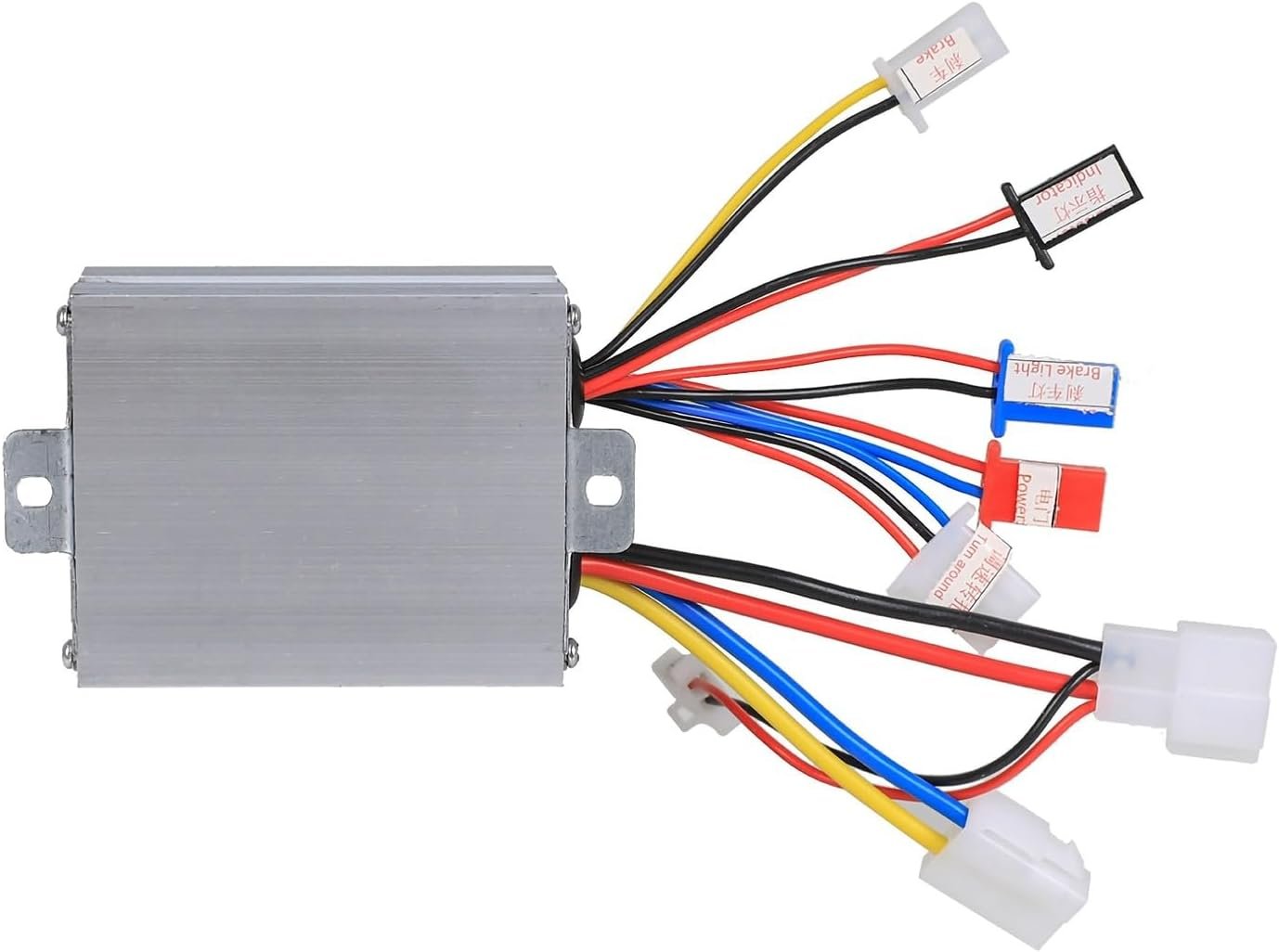

8 Connectors for Versatility: Includes connectors for battery, motor, brake, brake light, indicator light, ignition lock, charger port, and derailleur (throttle).
Essential Wiring: Four essential groups of cables (battery, motor, ignition lock, throttle) for normal operation, with additional optional functions for customization.
