48v 1000w Brush Motor Kit Electric Bicycle Conversion Kit E-Bike Cycling Motor Controller 3000rpm 3 Speed Gears with a T8f Chain

Price: $112.00
(as of May 04, 2025 01:45:47 UTC – Details)

Application

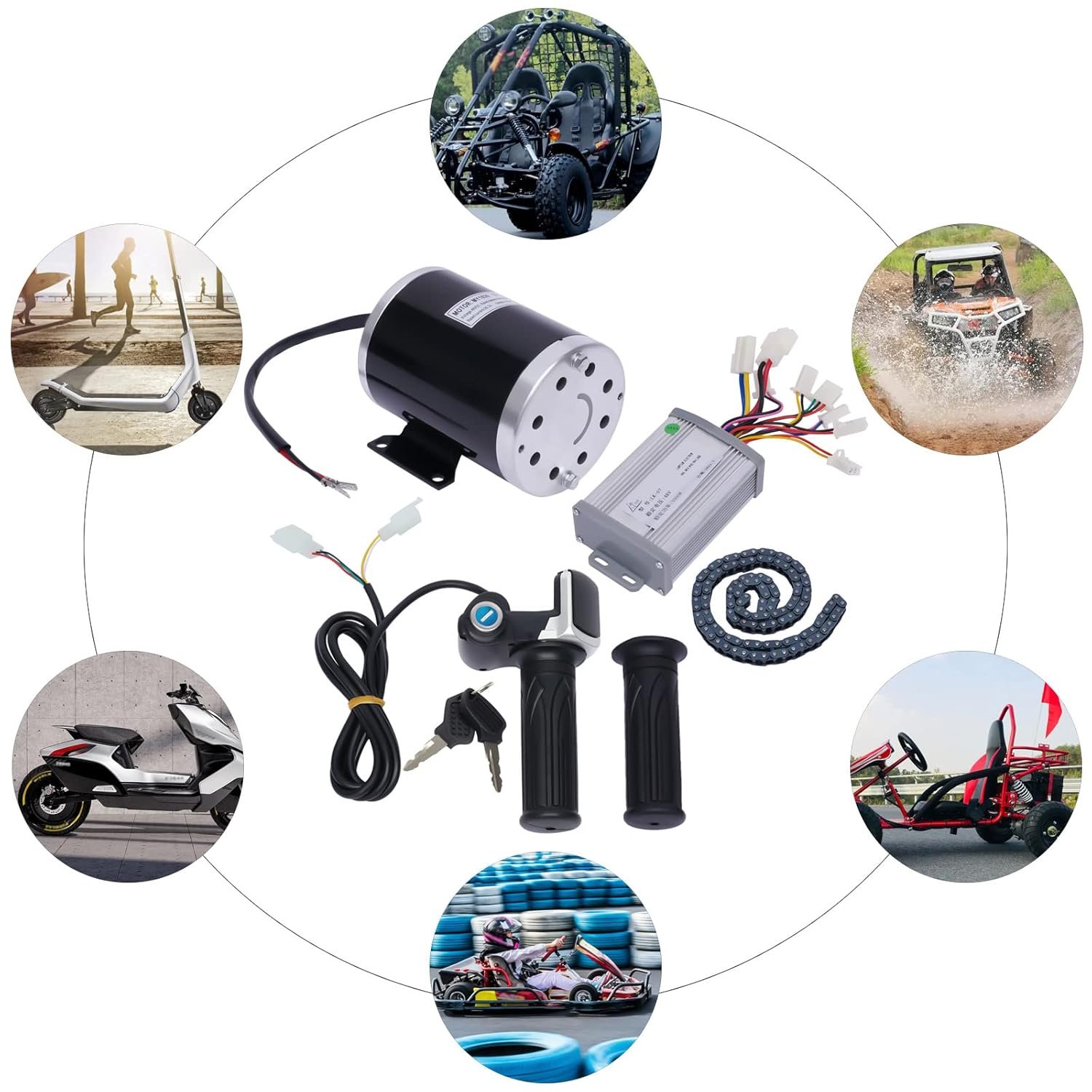

This conversion kit is suitable for small karts, beach bikes, EVO scooters, small electric motorcycles, etc.

Specification
Color: Black, Silver
Material: Copper, Iron and Aluminum
Chain Model: T8F
Motor Model: MY1020
Controller Model: LK-07
Voltage:48V
Power:1000W
Motor Type: Brush Motor
Unload Current: 2.2A
Rated Current: 26.7A
Unload Speed: 3700 rpm
Rated Speed: 3000 rpm
Rated Torque: 3.2N·m
Motor Efficiency: ≥78%

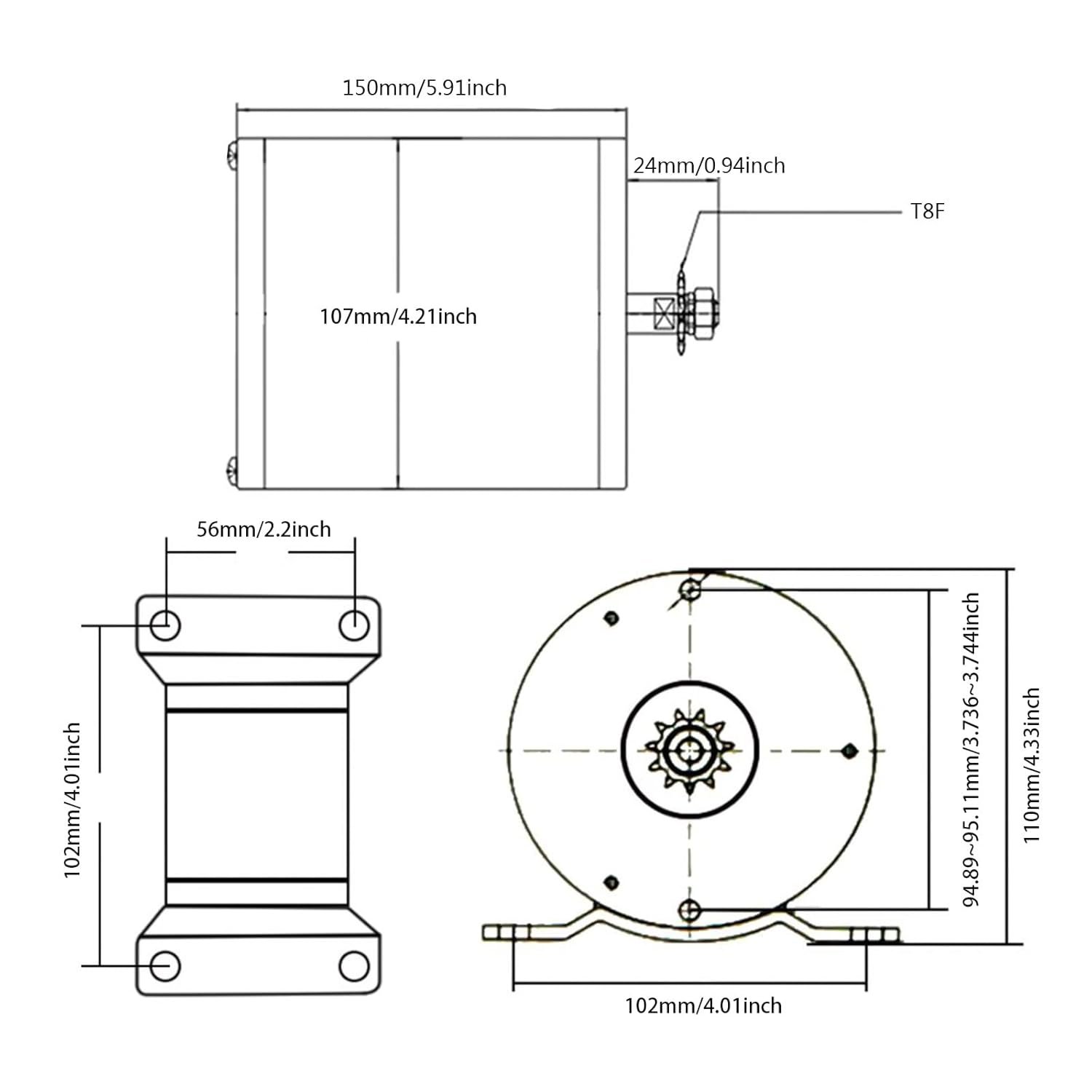

Motor Length: 15cm/5.91inch
Motor Shaft Length: 2.4cm/0.94inch
Motor Diameter: 10.2cm/4.01inch
Motor Screw Holes Distance: 9.489-9.511cm/3.736-3.744inch
Motor Height: 11cm/4.33inch
Motor Stand Screw Holes Distance (Horizontal): 5.6cm/2.2inch
Motor Stand Screw Holes Distance (Vertical): 10.2cm/4.01inch
Package Size: 29*17*19cm/11.4*6.7*7.5inch
Gross Weight: 6.2kg/13.7lbs

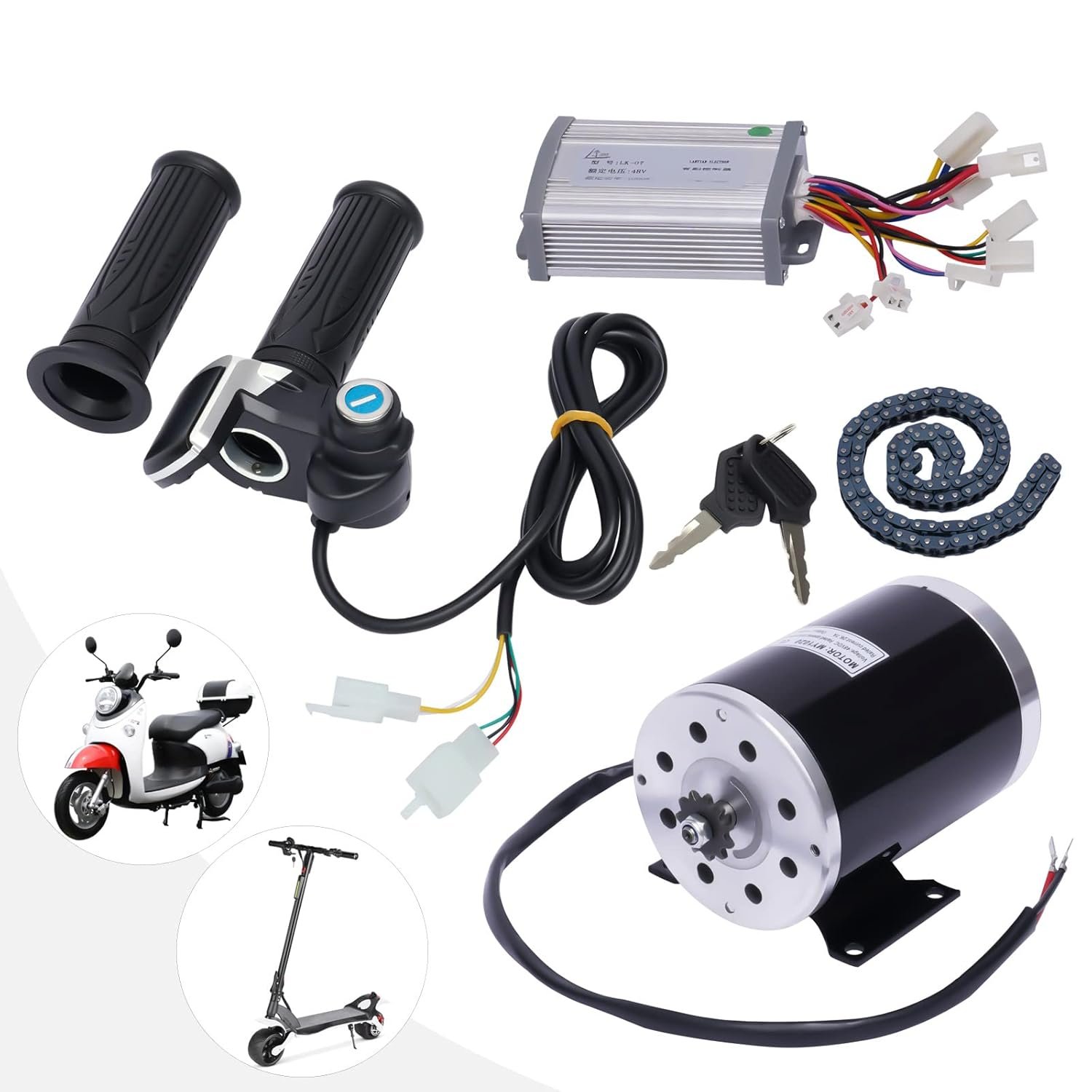

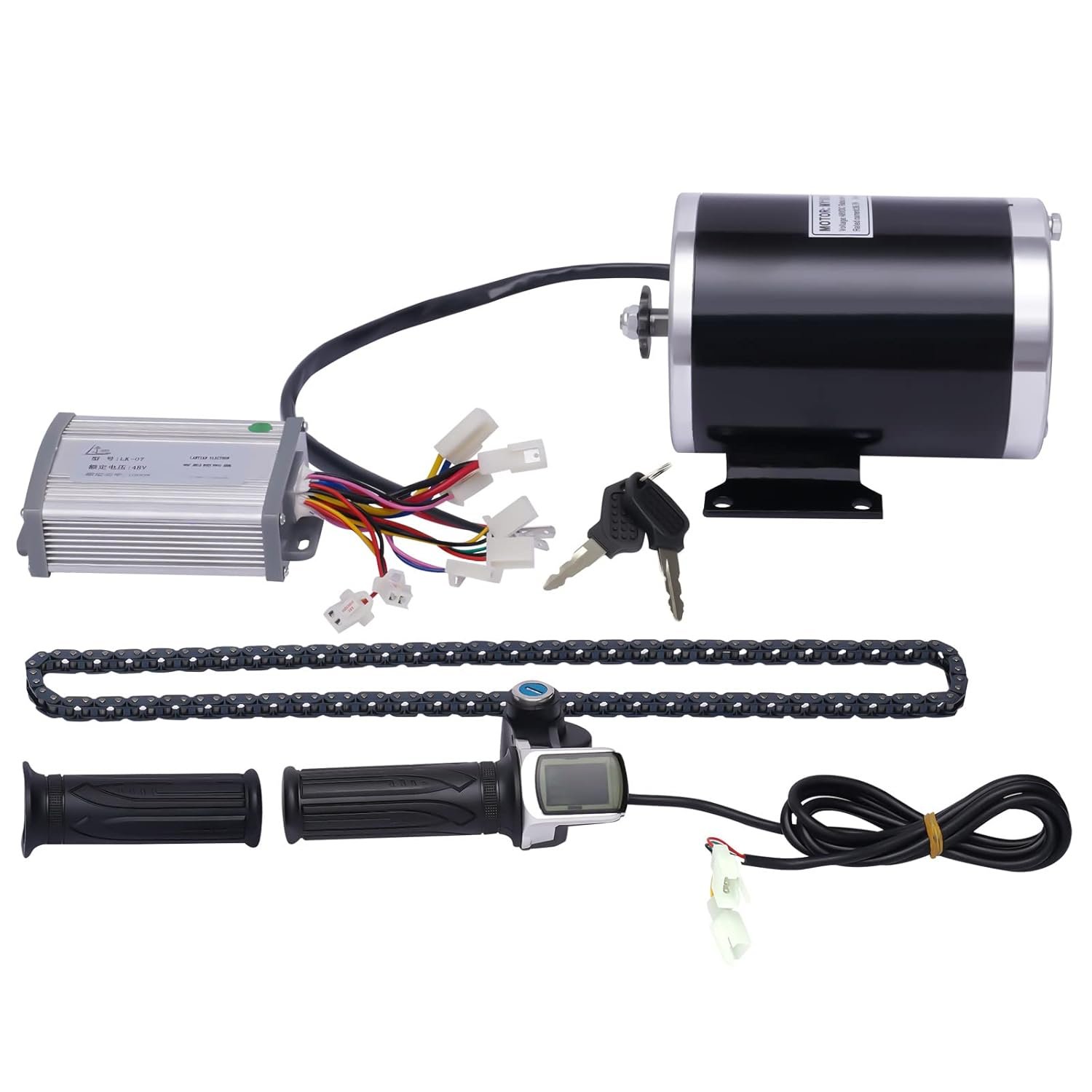

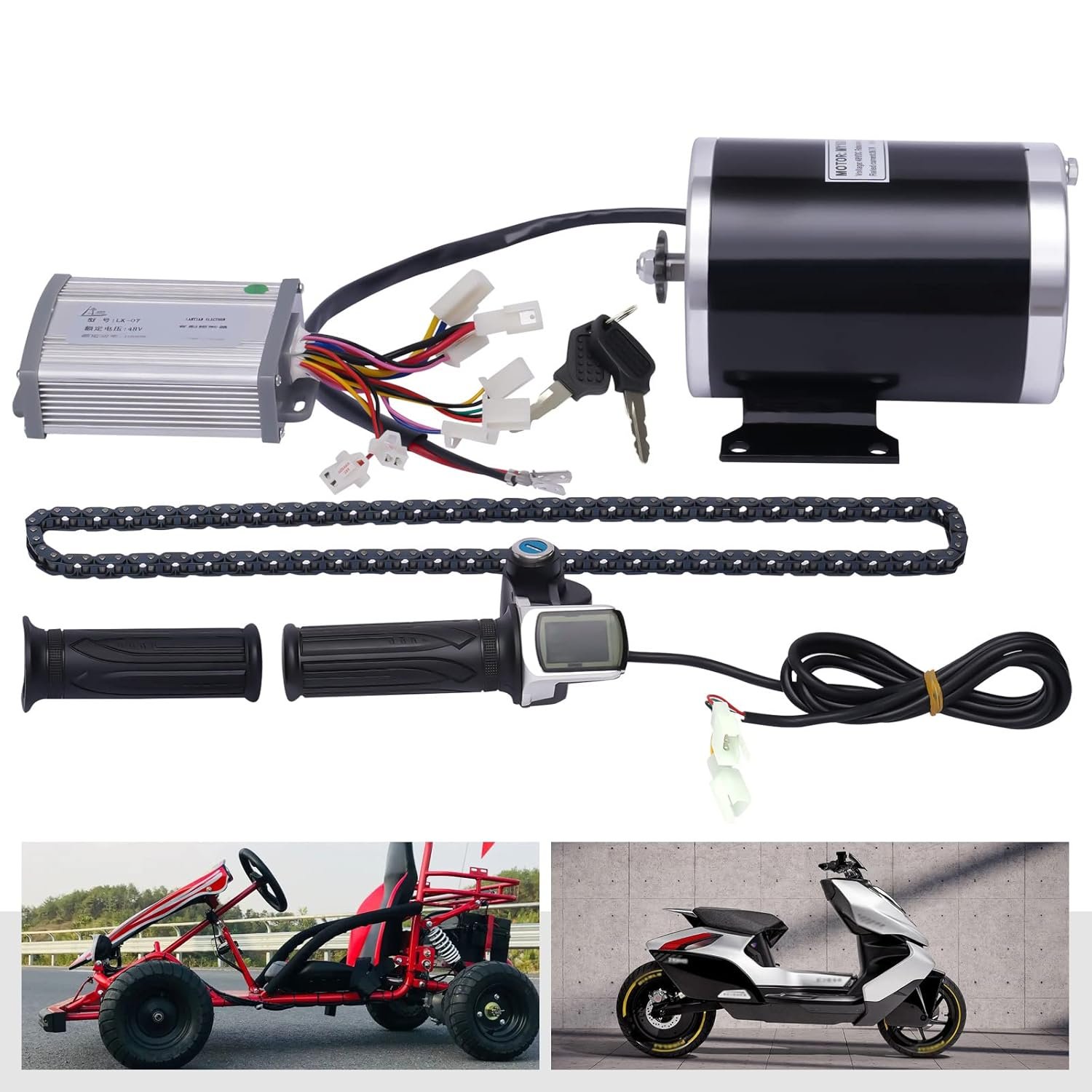

Package Included

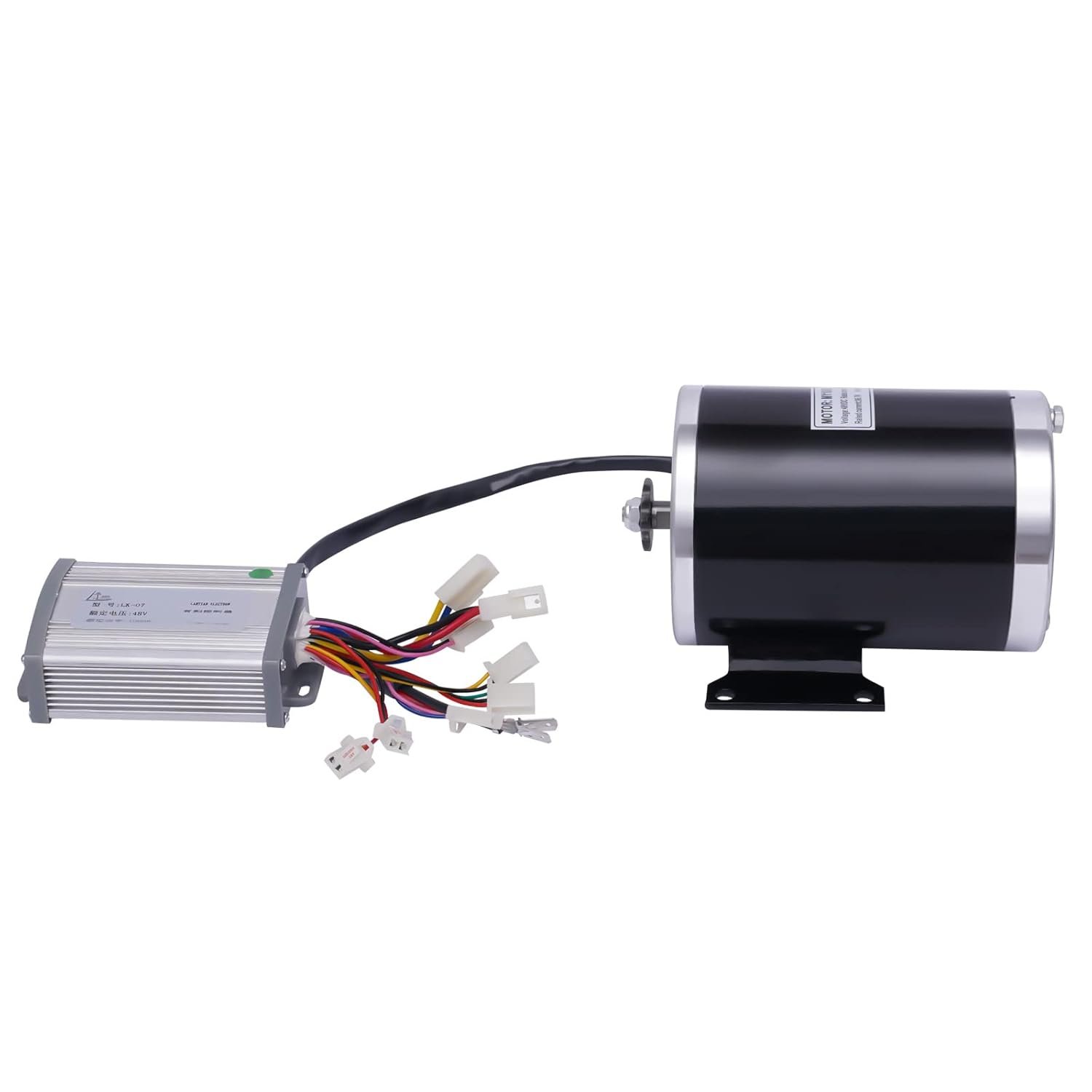

1* Brush Motor
1* Controller
1* Drive Handle
1* Regular Handle Cover
1* Chain
2* Keys
Item model number ‏ : ‎ 1TFKUP311
Date First Available ‏ : ‎ March 10, 2025
Manufacturer ‏ : ‎ ReqianXH
ASIN ‏ : ‎ B0DZX1KZNQ
Country of Origin ‏ : ‎ China

High-quality Motor: This electric motor equipped with reliable metal housing protects the internal circuit and has good heat dissipation performance with the holes to avoid thermal overload. So it has a long service life.
Powerful Motor: This motor is a 48V 1000W brush motor for efficient operation. The powerful motor has a rated speed of 3000rpm so that it can help you drive faster.
3 Speed Gears: The controller has three speed gears to adjust the speed of the motor. You can adjust the appropriate speed to ensure safe driving.
Energy-saving: With this conversion kit, your bike or EVO scooter will become an electric one. So you don’t have to struggle to ride. Electric drives will replace human drives. You will feel relaxed when riding.

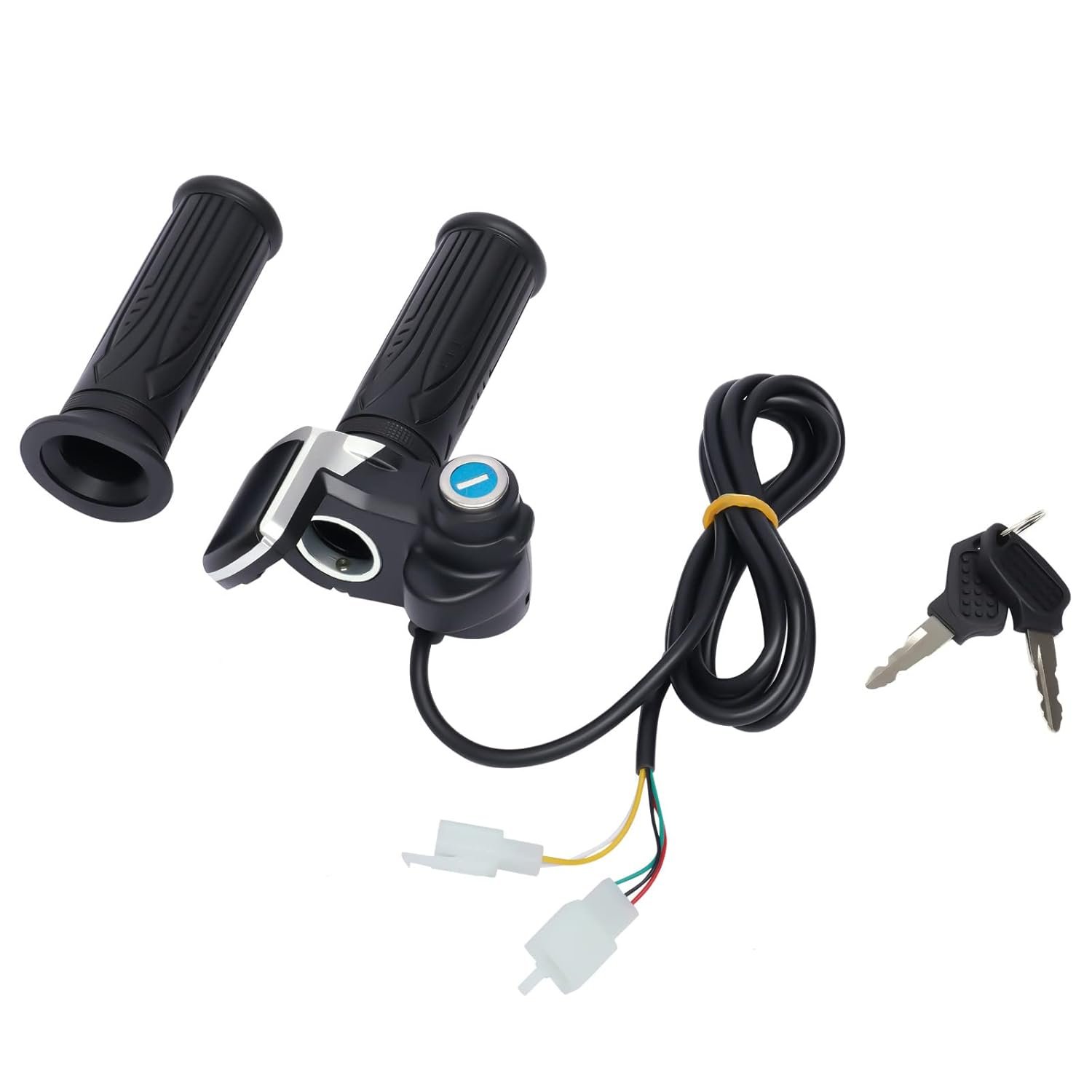

Detail Design: This drive handle has an LCD that shows the power of the e-bike clearly. So you will be able to recharge your batteries in time with it. We provide a T8F chain for you to convert. The thickened chain is not only strong and durable but also smooth to drive.
