BBT, Bottom Bracket and Pedal Tool, Blue

Price: $26.95
(as of Mar 11, 2025 09:19:07 UTC – Details)

Product Description

Park Tool BBT-69.4 Bottom Bracket/Lockring Tool

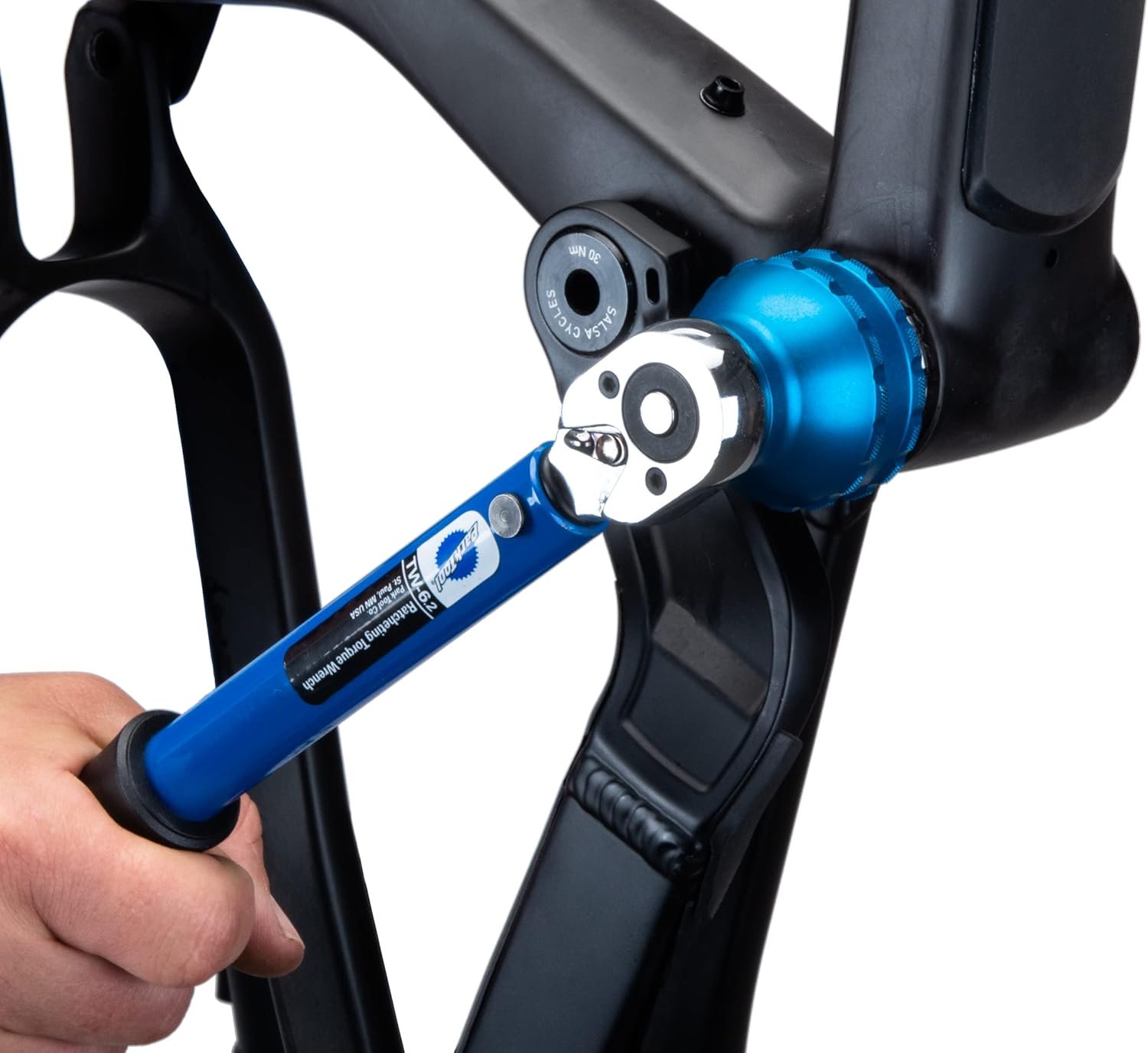

A precision CNC-machined aluminum tool for the installation and removal of select components with 16-notch tool fittings, including bottom brackets, center lock disc brakes, and e-bike motor lockrings. Manufactured in-house by Park Tool, anodized for easy identification and featuring a ratchet/torque wrench-compatible 3/8″ drive.

The BBT-69.4 features integrated threads for full compatibility with the Park Tool BBT-RS Bottom Bracket Tool Retaining System (sold separately). The BBT-RS uses an adjustable spring-based tension system to apply consistent, adjustable pressure to the tool, ensuring full engagement with the tool fitting and preventing slippage.

The BBT-69.4 fits 16-notch tool fittings with a major diameter (outside of notches) of 44-45 mm and a minor diameter (inside of notches) of 42.7 mm, including:

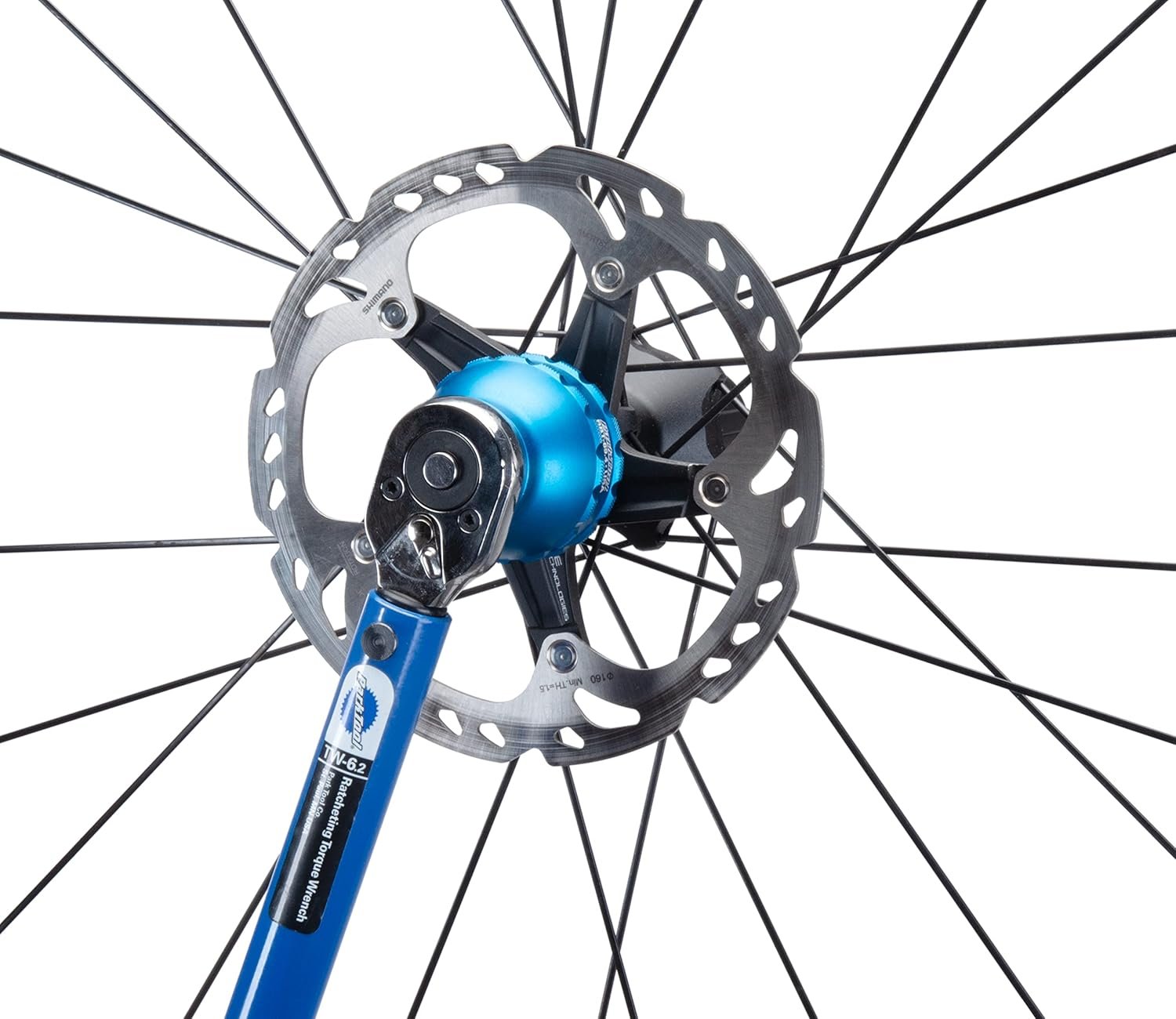

Shimano BB80, BB5700, XT BB70, BB51, and previous external bearing threaded cupsThreaded bottom bracket cups from Campagnolo, Chris King, FSA MegaExo, Hope, SRAM/Truvativ GXP, Race Face X-type, Surly, Wheels, Fulcrum, and othersCenter lock disc brake rotor lockrings16-notch Bafang BBSH, BBS02 mid-drive motor lockrings

Park Tool: Your Guide to the World of Bottom Brackets

Confused by what bottom bracket tool you need? You’re not alone. Between all the standards, installation methods, and tool fittings, it can all seem a bit overwhelming. Whatever you do need, Park Tool makes over 40 different tools to aid in the removal and installation of bottom brackets. Here’s how to determine the correct tool for you, if you have an threaded or thread-together bottom bracket:

Count Splines/Notches

Remove the crank and inspect the bottom bracket shell for tool fittings, which can be notches or indentations on the outer perimeter, splines on the inside perimeter, or pin holes on the face. Count the number of tool fittings on the cup.

Measure Diameter

Next use a caliper to measure the diameter or width of the tool fittings. For external notches, simply measure the outer diameter of the bottom bracket cup or adapter. Take the measurement in millimeters.

Select Tool

The BBT-69.3 is for 16-notch tool fittings with a major diameter (outside of notches) of 44-45 mm and a minor diameter (inside of notches) of 42.7 mm. Here are some tools we offer for this and a few similar tool fittings:

Add to Cart

Add to Cart

Add to Cart

Add to Cart

Add to Cart

Add to Cart

Customer Reviews

4.6 out of 5 stars 257

4.8 out of 5 stars 1,931

4.6 out of 5 stars 244

4.7 out of 5 stars 58

4.7 out of 5 stars 128

4.6 out of 5 stars 26

Price

$26.95$26.95 $34.95$34.95 $17.95$17.95 $26.95$26.95 $27.95$27.95 $27.95$27.95

Tool Fitting
16 Notches 16 Notches 16 Notches 16 Notches 12/24 Notches 16 Notches

Outer Diameter
44–45 mm 44–45 mm 44–45 mm 41–42 mm 45–47 mm 48–50 mm

Typical Brands & Models
Shimano (incl. BB80, BB5700, XT BB70, BB51), Campagnolo, SRAM/Truvativ GXP, Chris King, FSA MegaExo, Hope, Race Face X-type, Surly, Wheels Mfg, Fulcrum Shimano (incl. BB80, BB5700, XT BB70, BB51), Campagnolo, SRAM/Truvativ GXP, Chris King, FSA MegaExo, Hope, Race Face X-type, Surly, Wheels Mfg, Fulcrum, some disc brake lockrings Shimano (incl. BB80, BB5700, XT BB70, BB51), Campagnolo, SRAM/Truvativ GXP, Chris King, FSA MegaExo, Hope, Race Face X-type, Surly, Wheels Mfg, Fulcrum Shimano XT MT800, Ultegra BBR60/72 SRAM DUB, Race Face Cinch, Rotor BSA30, Zipp Vuma, Hawk Racing BB3086 FSA MegaEvo, Wheels Mfg

TRUSTED SINCE 1963

Since our origins in the back of a bike shop in 1963, it has been Park Tool’s sole mission to design and manufacture high-quality tools that empower mechanics and riders of all skill levels to service their bicycles. Just like our other 500+ tools, our bottom bracket tools are a product of our decades of experience and expertise in the industry, in the shop and on the trail.

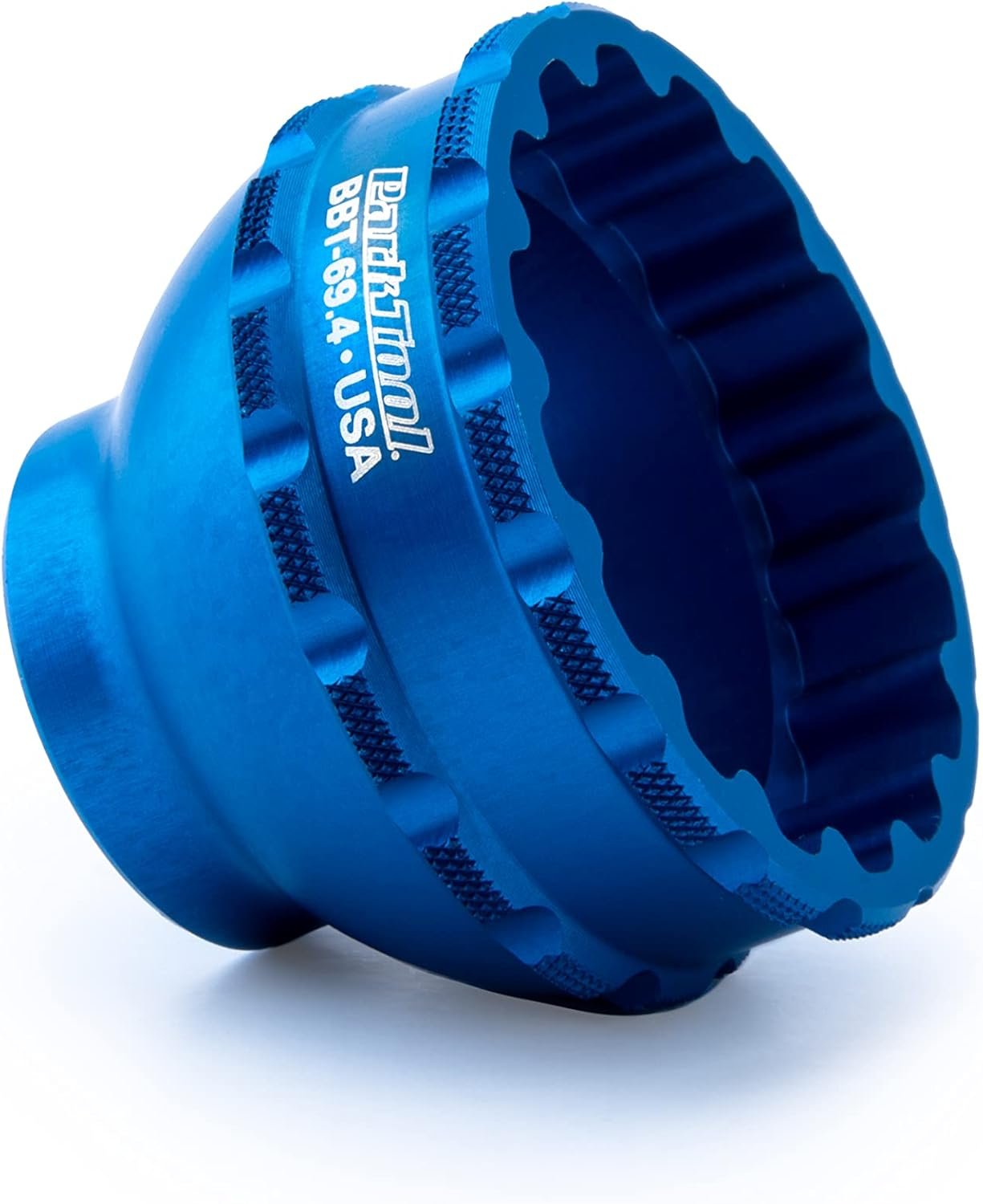

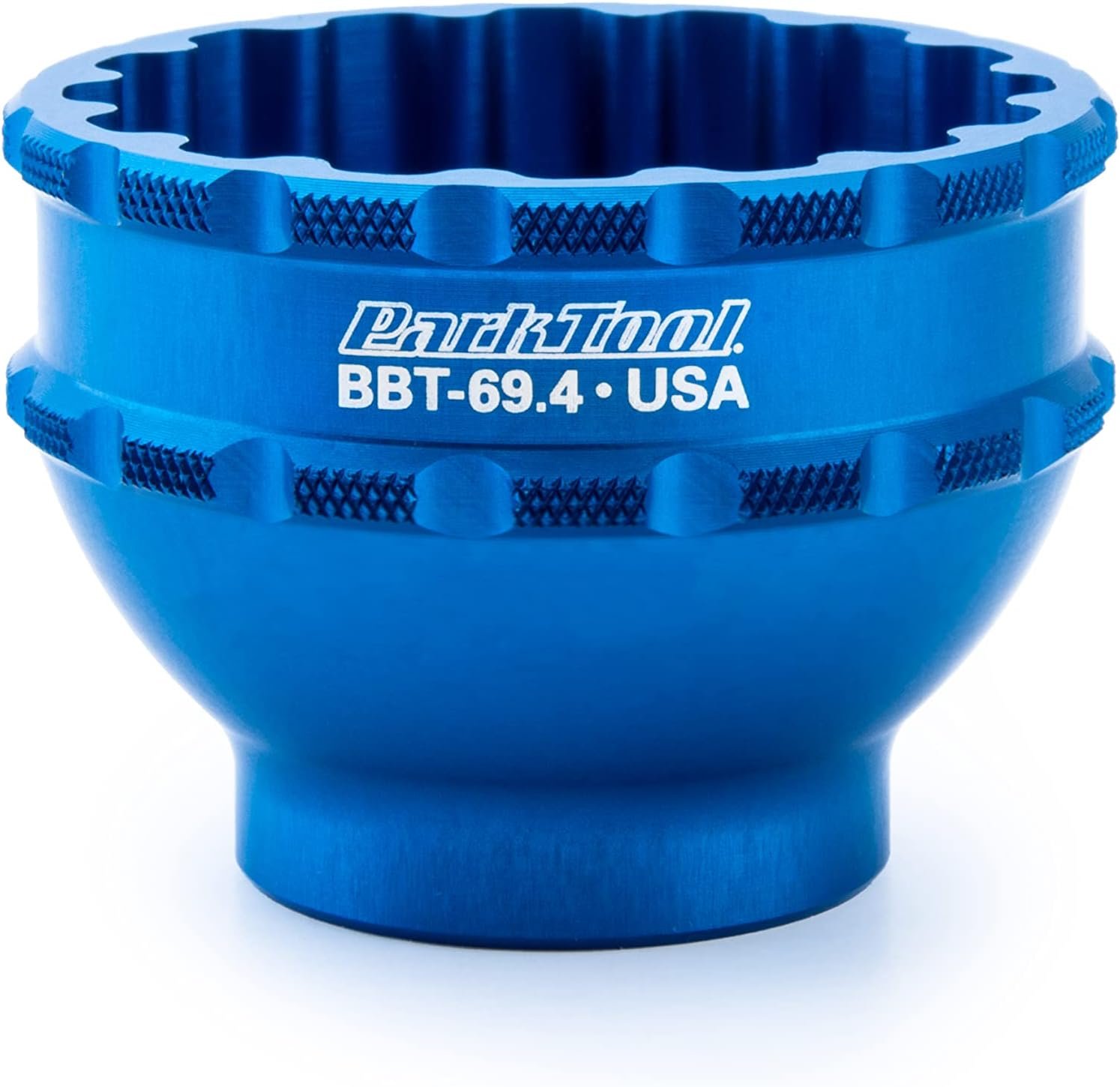

Anodized and laser engraved for easy identification and featuring a ratchet/torque wrench compatible 3/8 drive

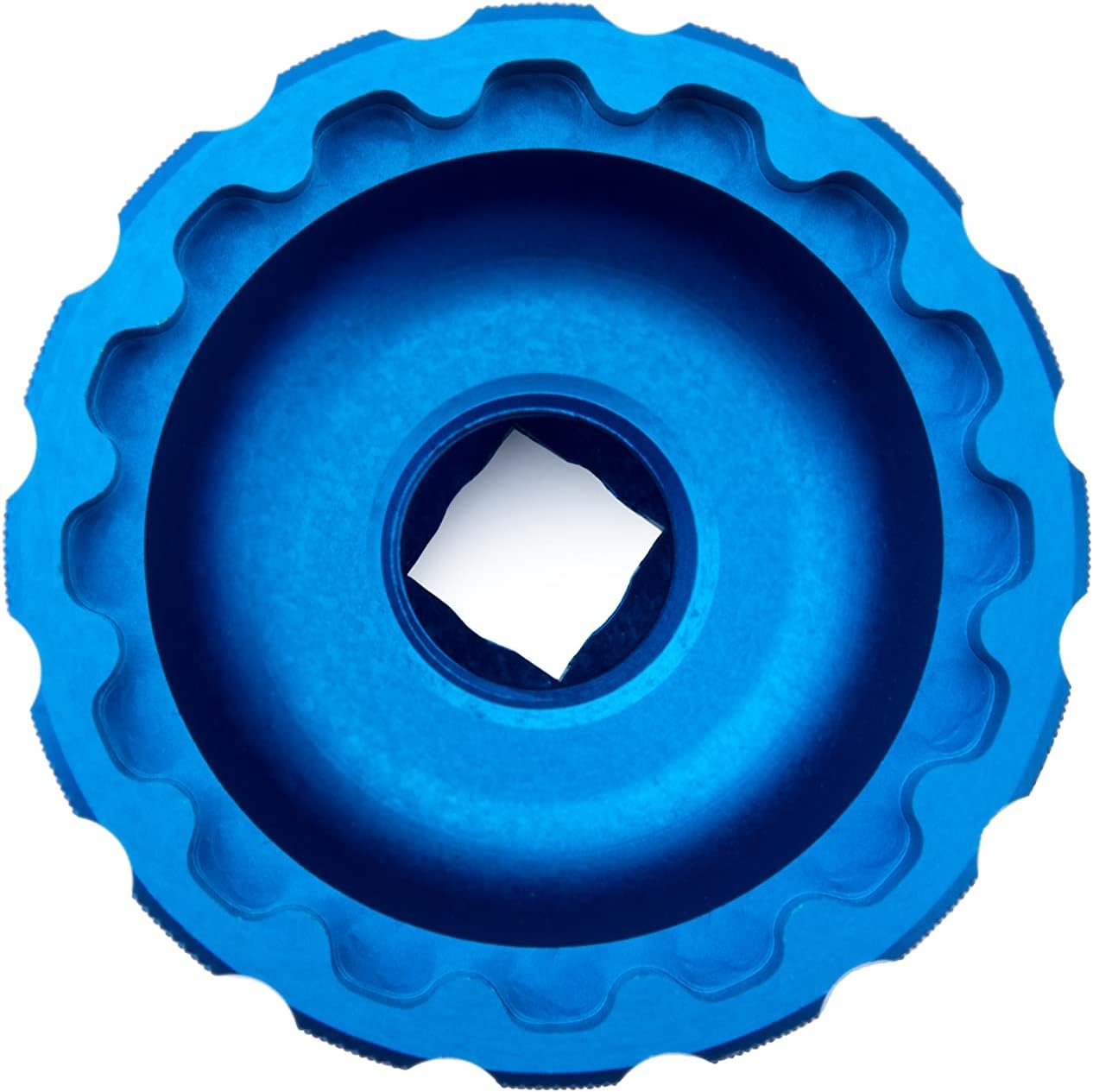

44mm 16-notch
Fits Shimano BB80, BB5700, BB70, BB51 and older bottom brackets
Added depth to fit Shimano STEPS square drive motor
Also fits many external threaded types for Campagnolo, Chris King, FSA MegaExo, Hope, SRAM/Truvativ GXP, Race Face X-type, Surly, Wheels, Fulcrum, and others
