Electric Bicycle Controller Kit, 36V/48V 1200W Powerful E-Bicycle Brushless Controller with LCD Display Color Screen Kit for Electric Bicycle Scooter DIY Part, Electric Controller Kit w/Thumb Turner

Price: $89.99
(as of Mar 11, 2025 06:47:50 UTC – Details)

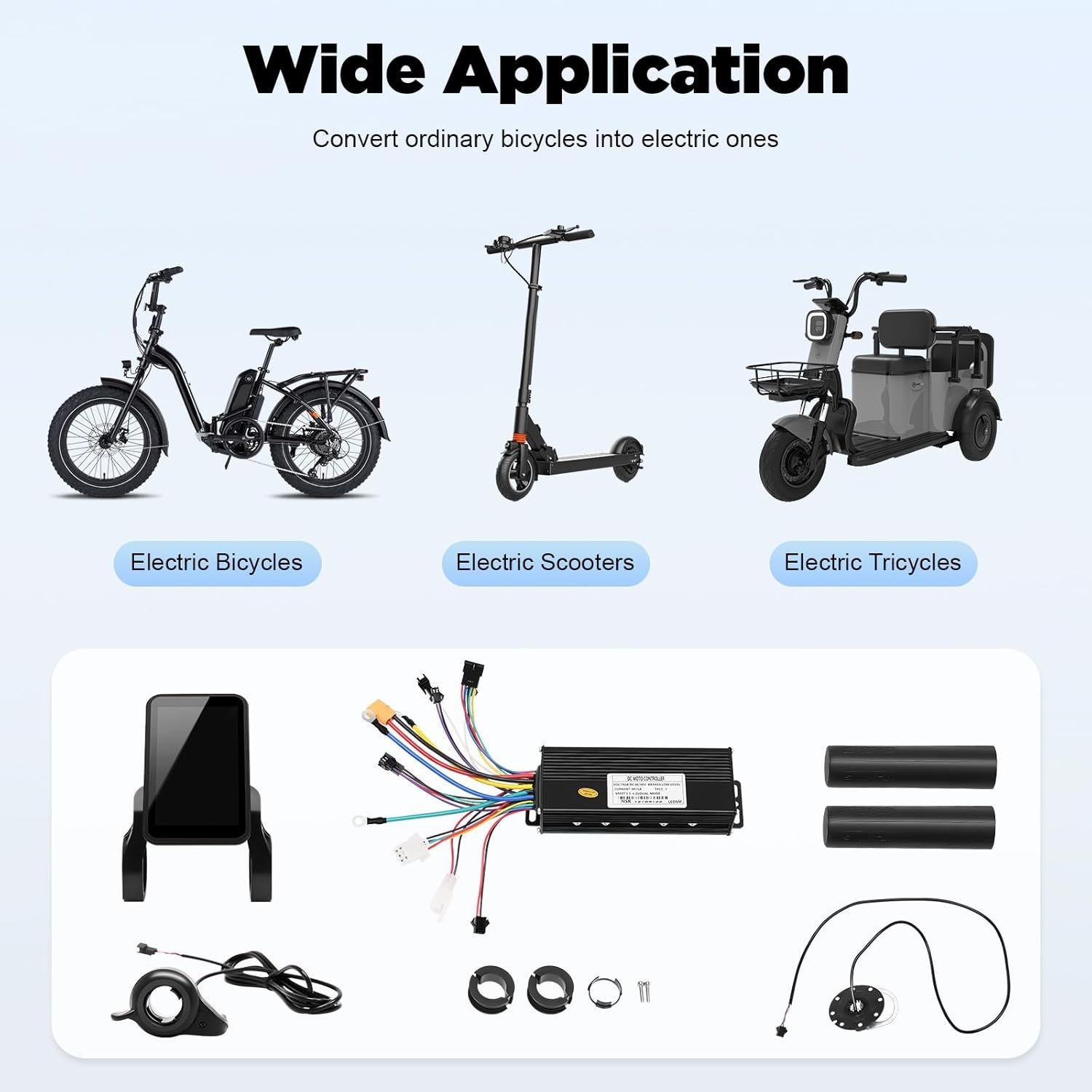

Application
It is suitable for electric bicycles, electric tricycles, electric scooters, and a variety of DC motors.

Specification
Model: NC3630
Color: Black
Material: Aluminium Alloy
Style: Modern
Voltage: DC 36/48V
Matchable Motor Power: 750-1200W
Current: 30±1A
Meter Type: LCD
Instrument Display: Real-time Speed, Maximum Speed, Average Speed, Total Mileage, Single Mileage, Battery Power Display, Assist Gear/Speed Grading, Cruise Control
Net Weight: 0.9kg/1.9lbs
Gross Weight: 1kg/2.2lbs
Package Size: 20*20*5cm/7*7*2inch

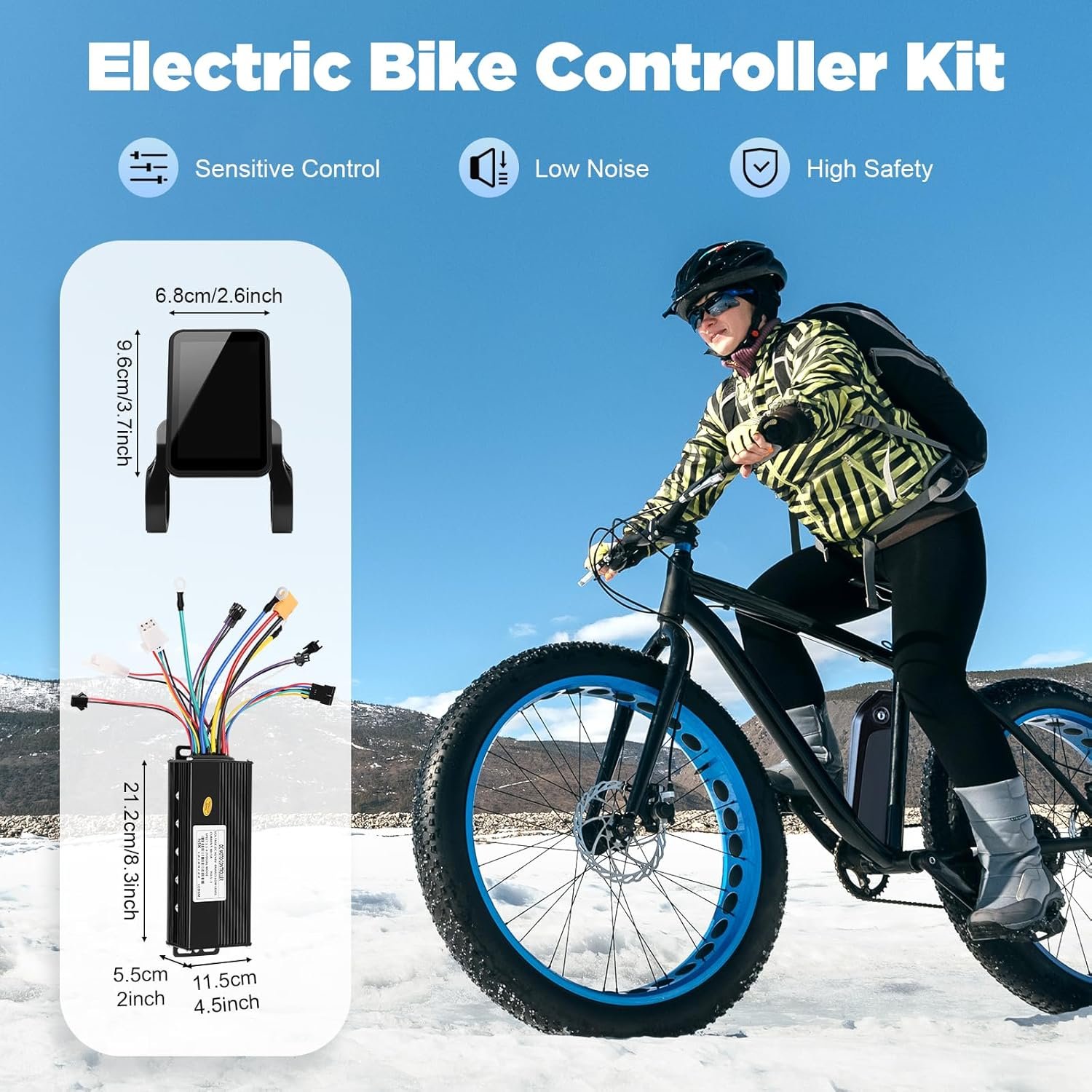

Controller Size: 212*115*55mm/8.3*4.5*2inch
LCD Meter Size (L*W): 68*96mm/2.6*3.7inch
Suitable Handbar Size: 21mm/0.83in, 22mm/0.87in, 23mm/0.9in, 24mm/0.94in, 31.8mm/1.25in

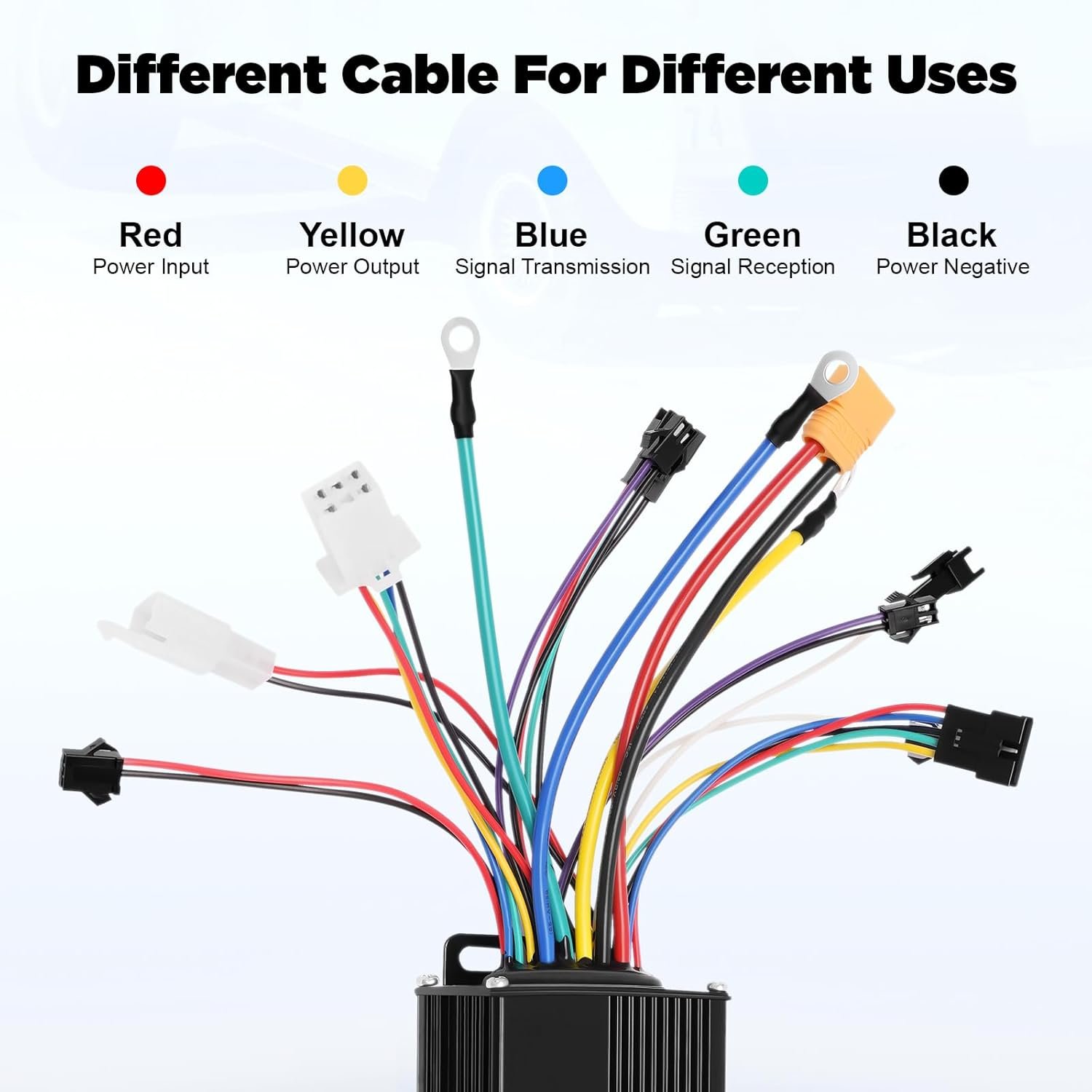

Different Cable For Different Uses
Red: Power Input
Yellow: Power Output
Blue: Signal Transmission
Green: Signal Reception
Black: Power Negative

Package Included
1* Color Screen LCD Meter&Bracket
1* Thumb Turner
1* Turnbuckle Cover
1* Controller
1* Pedal Assistant Sensor
Other Accessories for Assembly

Notes
1. The speed is related to wheel size, road condition, battery condition, guest load, wind speed, and other factors.
2. Please make sure a solid connection between the motor and the controller.
3. Please make sure that the inner core of each plug is not damaged, broken, or bent.
4. You need to connect the machine correctly and firmly during installation so that the product can work properly. If there is a mistake during the installation process, the product will not work properly.
5. Please allow the slight color difference caused by the shooting light and 1-3cm error due to manual measurement, and make sure you do not mind before ordering.
HIGH QUALITY MATERIALS: The controller is made of high quality aluminum alloy with high hardness and toughness, and high quality circuit board with high torque, low heat, reverse polarity protection and high current rating. So it can be used for a long time
SENSITIVE CONTROL: Brushless controllers can be sensitive to the state of the e-bike, providing stable speed and sensitive control of braking and direction changes. Also, the turner provides stable and sensitive speed control.FOC Sine wave controller makes the motor produce low noise, smooth rotation and high efficiency

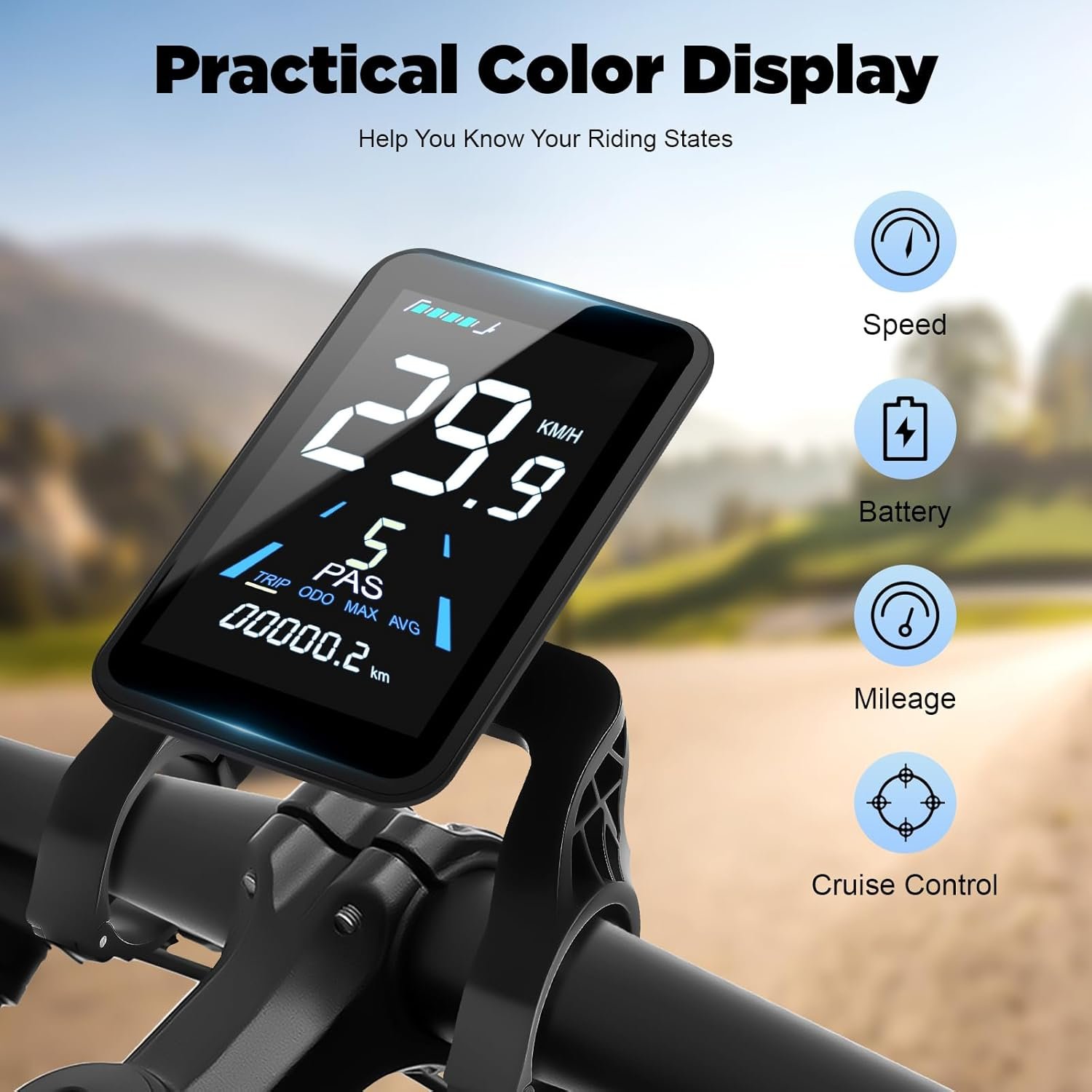

LCD DISPLAY: The color LCD display clearly shows real-time speed, maximum speed, average speed, total mileage, single mileage, battery level, auxiliary gear/speed rating, cruise control and other information, allowing you to keep track of the product’s usage status. Meanwhile, the backlight enables you to see the screen in dim environment
HIGH SAFETY: The wires and interfaces are in good contact to ensure a low failure rate over a long period of time. Meanwhile, over/under voltage protection, over current protection, overload protection, overheat protection, anti-runaway protection, locked motor protection and other functions make the kit safe and reliable
GOOD HEAT DISSIPATION: Aluminum case with groove design ensures good heat dissipation and high temperature resistance, which can provide better protection for the internal circuits and avoid thermal overload
