Electric Bike 1T4 1T5 Waterproof Cable Controller Light Ebrake Throttle Display E-Bike Cable Conversion Accessories（1T5）

Price: $19.90
(as of Feb 28, 2025 08:54:23 UTC – Details)

This waterproof cable is used in an electric bike conversion motor kit to connect other components to the controller to form a complete system.

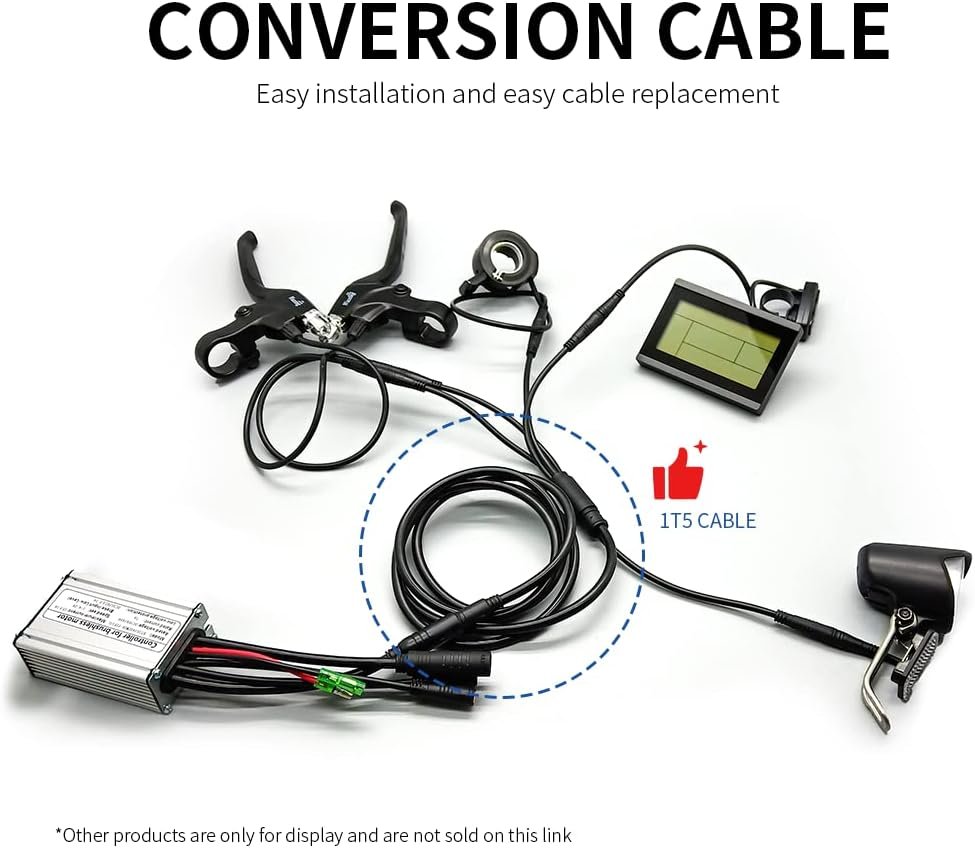

One end is connected to the electric bicycle controller, the other end is connected to a pair of brake levers, a display,a throttle and headlight.

Please note:
There are two types of brake lever connectors on the market, 3-pin and 2-pin. This cable brake lever connector is 3Pin Male, Yellow connector，Not red!

Parameter:

• Product name: waterproof cable
• Applicable voltage: 24V, 36V, 48V, 52V, 72V
• Specification: 1T5
• Length: 1800mm
• Connector: Julet
• Warranty period: 1 year
• Colour: Black
• Certification: CE, RoHS

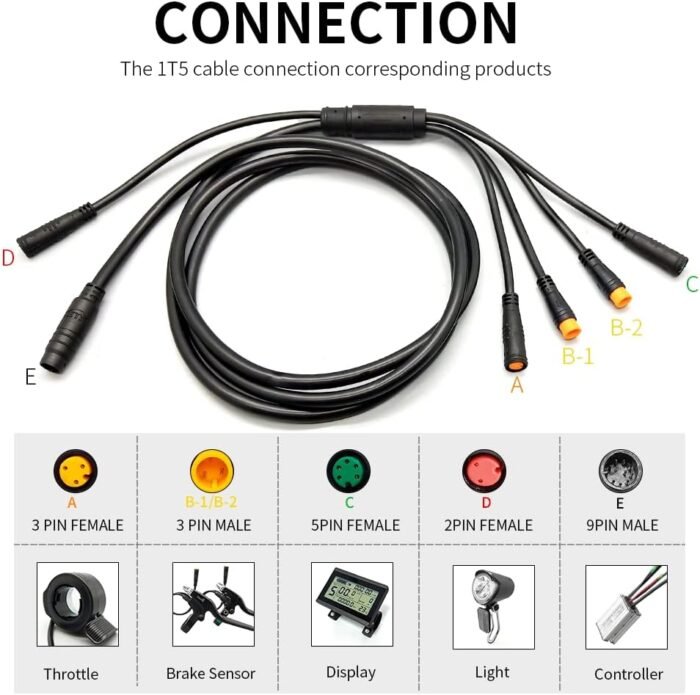

Electric bicycle waterproof 9-pin 1T5, connect controller and display, throttle,headlight and left and right brake levers
Cable length: 180cm (70.8inch)

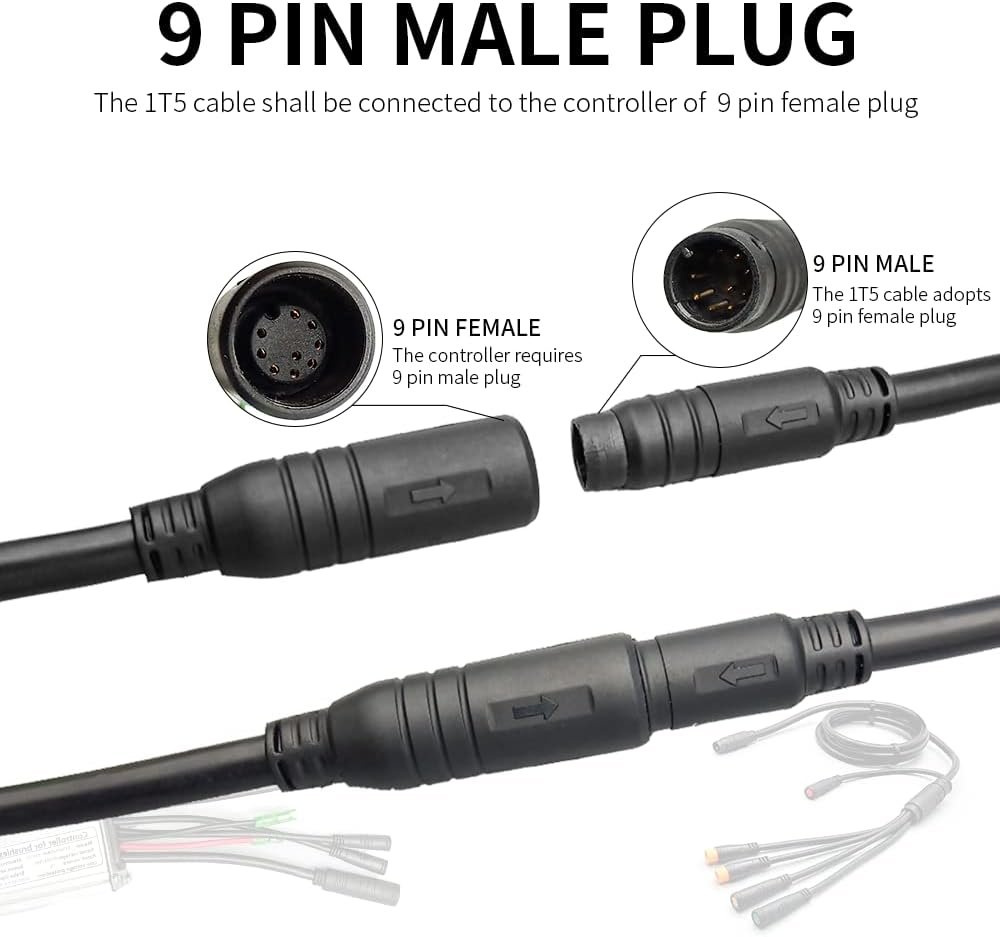

Controller connector: 8pin-Male (black)
Display connector: 5pin-Female (green)
Throttle connector: 3pin-Female (yellow)
Brake lever connector: 3pin-Male (yellow NOT red)
Headlight connector:2pin-Female(red)
