Electric Bike Conversion Kit,72V 3000W Brushless Motor Kit for Electric Bicycle E Bike Dirt Bike Razor MX650, High DC Electric Brushless Motor Conversion Kit with Controller fit for Go Kart Scooter

Price: $166.00
(as of Feb 21, 2025 00:06:21 UTC – Details)

Application

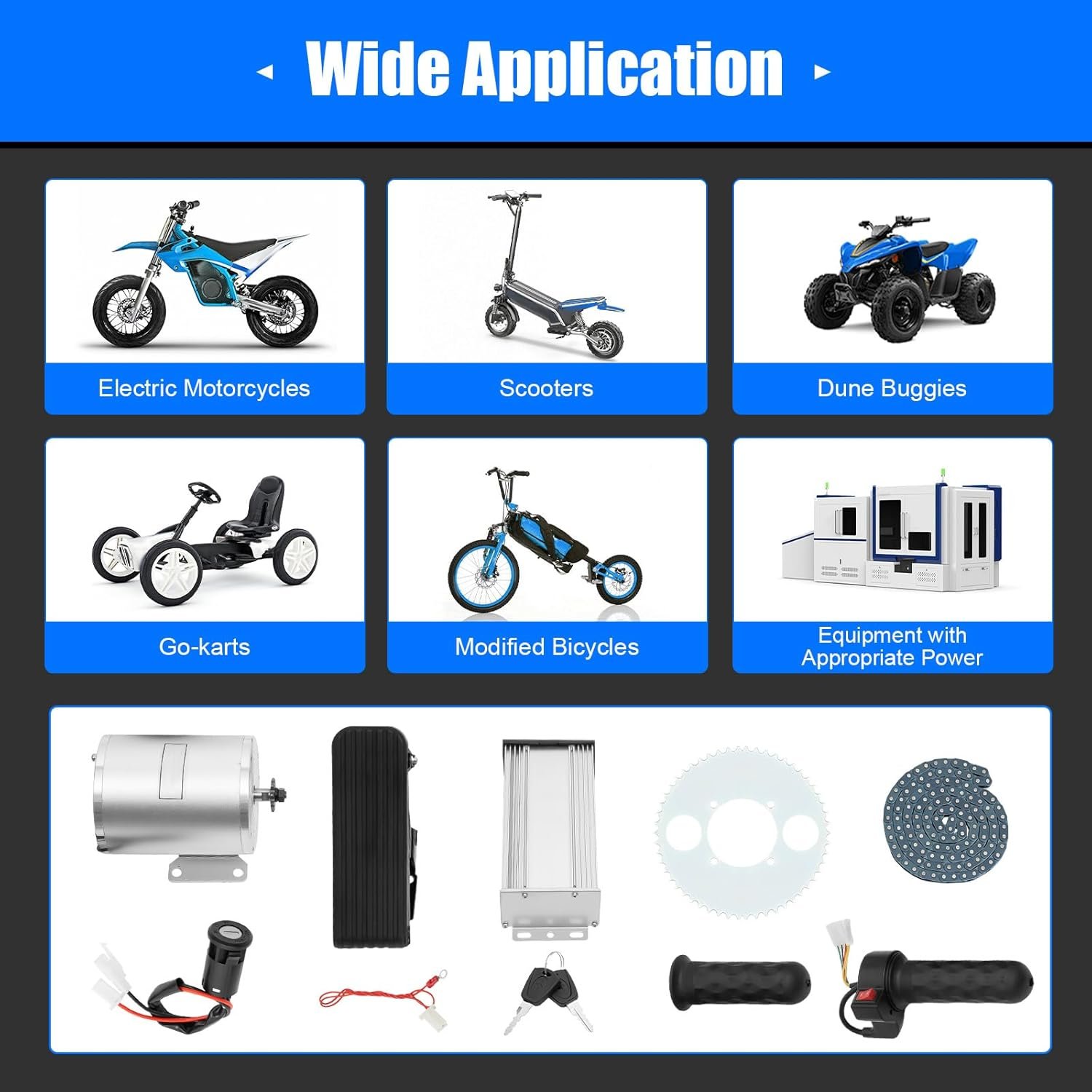

It is suitable for scooters, electric motorcycles, dune buggies, go-karts, modified bicycles, mechanical equipment, etc.

Specification
Material: Aluminum, Rubber
Brushless Motor Type: Pure Copper Motor
Speed Gears: Low / Medium / High (After Connecting Three-speed Line)
Motor Voltage: 48-72V
Motor Efficiency: ≥ 80％
Power: 3KW
Assembly Required: Yes
No-load Current: ≤ 8.8A
Rated Current: ≤ 43A
No-load Speed: 6000rpm
Rated Speed: 4900rpm
Rated Torque: 5.4 N.m
Protection Grade: IP33
Insulation Grade: E
Load Weight: Approx. 100-200kg/220.5-440.9lbs

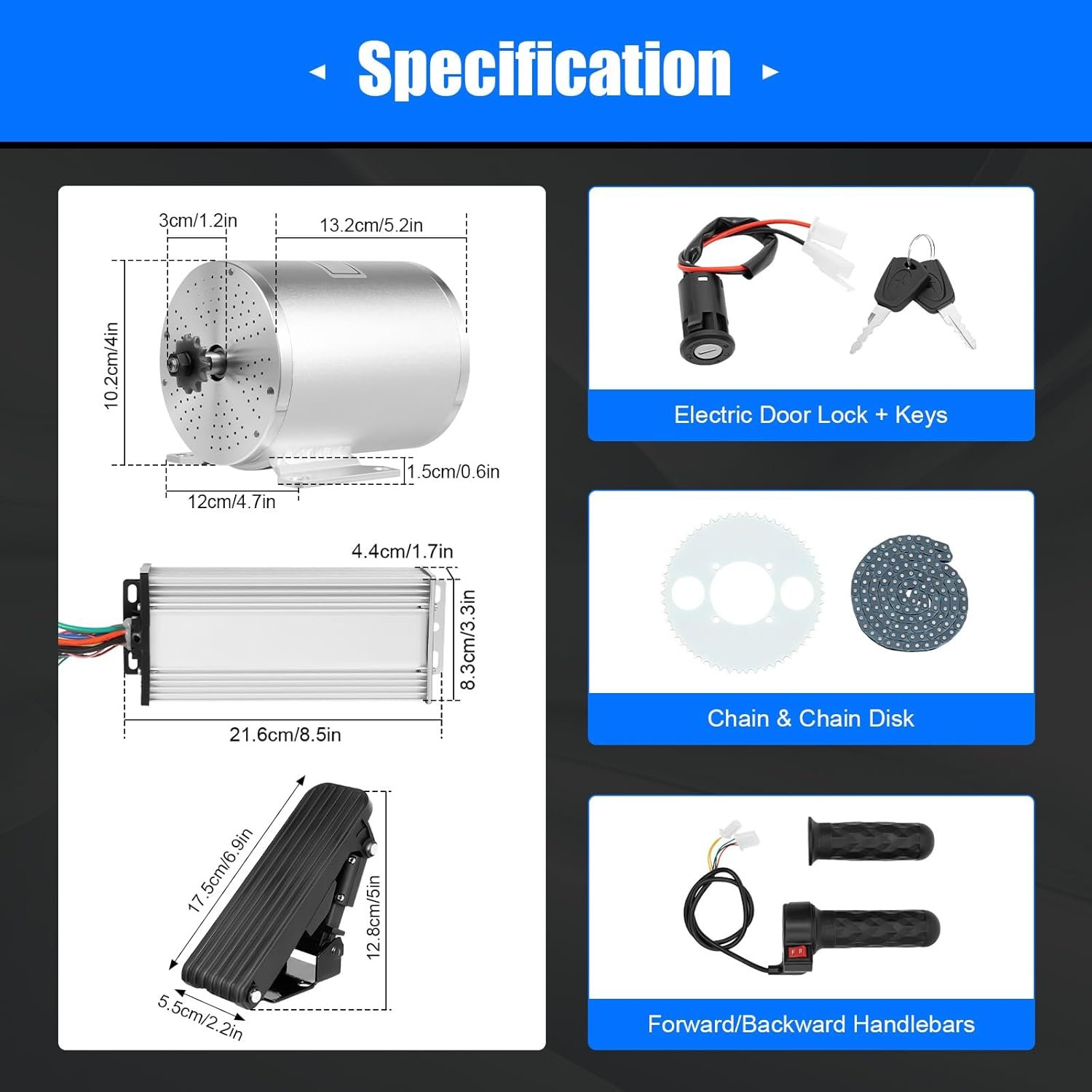

Foot Pedal Accelerator Size: 5.5*17.5*12.8cm/2.2*6.9*5in
Controller Size: 21.6*8.3*4.4cm/8.5*3.3*1.7in
Leg Distance: 12cm/4.7in
Leg Height: 1.5cm/0.6in
Interface Length: 3cm/1.2in
Motor Size(φ*L): 10.2*13.2cm/4*5.2in
Package Size: 39*35*25.5cm/15.4*13.8*10in
Net Weight: 6.45kg/14.2lbs
Gross Weight: 7.7kg/17lbs

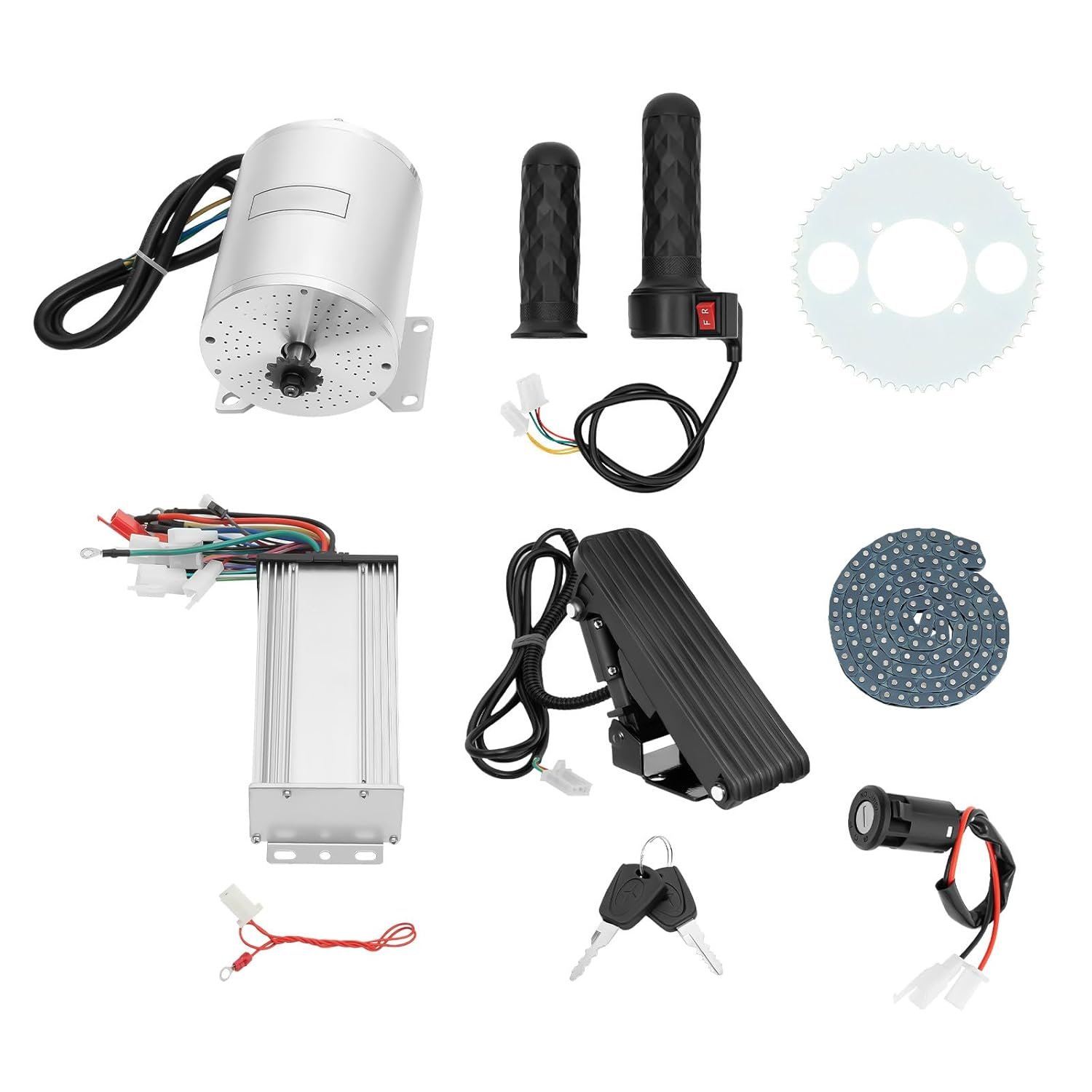

Package Included
1* Brushless Motor
1* Controller
1* Foot Pedal Accelerator
1* Electric Door Lock
1* Chain
1* Chain Disk
1 Pair* Lock Keys
1 Set* Forward/Backward Handlebars
Other Accessories for Installation

Notes
1. Please note that the motor speed will be determined based on the load weight and other factors.
2. When connecting the controller to the wires, please make sure to connect the correct color to it. Otherwise, the controller may be damaged.
3. Please do not let the motor run in reverse for a long time, as this will shorten its service life.
Please allow the slight color difference caused by the shooting light and 1-3cm error due to manual measurement, and make sure you do not mind before ordering.
Item model number ‏ : ‎ Zzy00015484
Date First Available ‏ : ‎ August 7, 2024
Manufacturer ‏ : ‎ YYGOOD
ASIN ‏ : ‎ B0DCG1LNGZ
Country of Origin ‏ : ‎ China

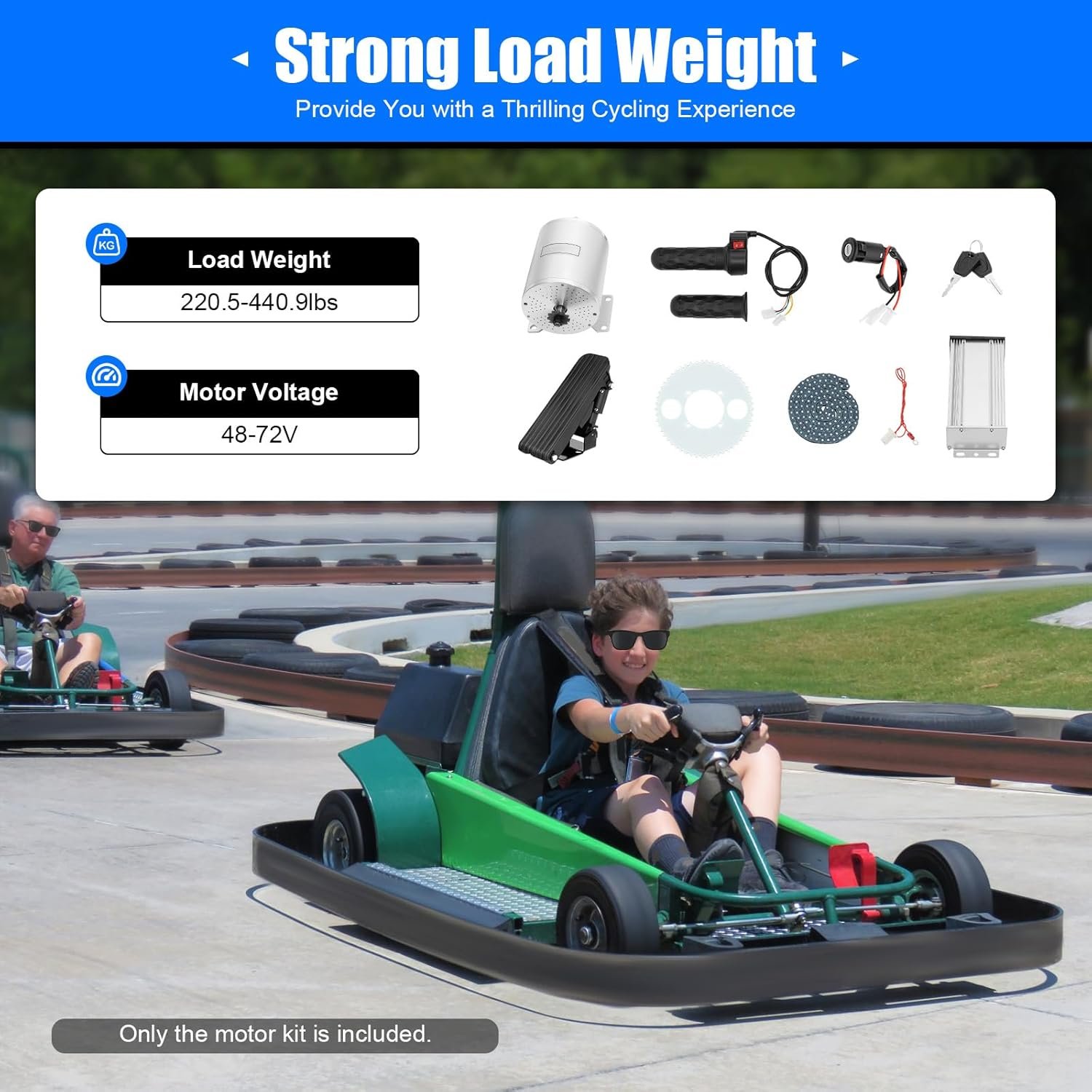

HEAVY LOADING WEIGHT: The e-bike conversion kit has a high loading weight (220.5-440.9 lbs). Whether you are a professional athlete or a recreational sports enthusiast, it can bring you a thrilling riding experience. The motor is made of high-quality aluminum alloy shell with pure copper coil, which is high temperature resistant, low noise, anti-corrosion and rust-proof to ensure its service life.

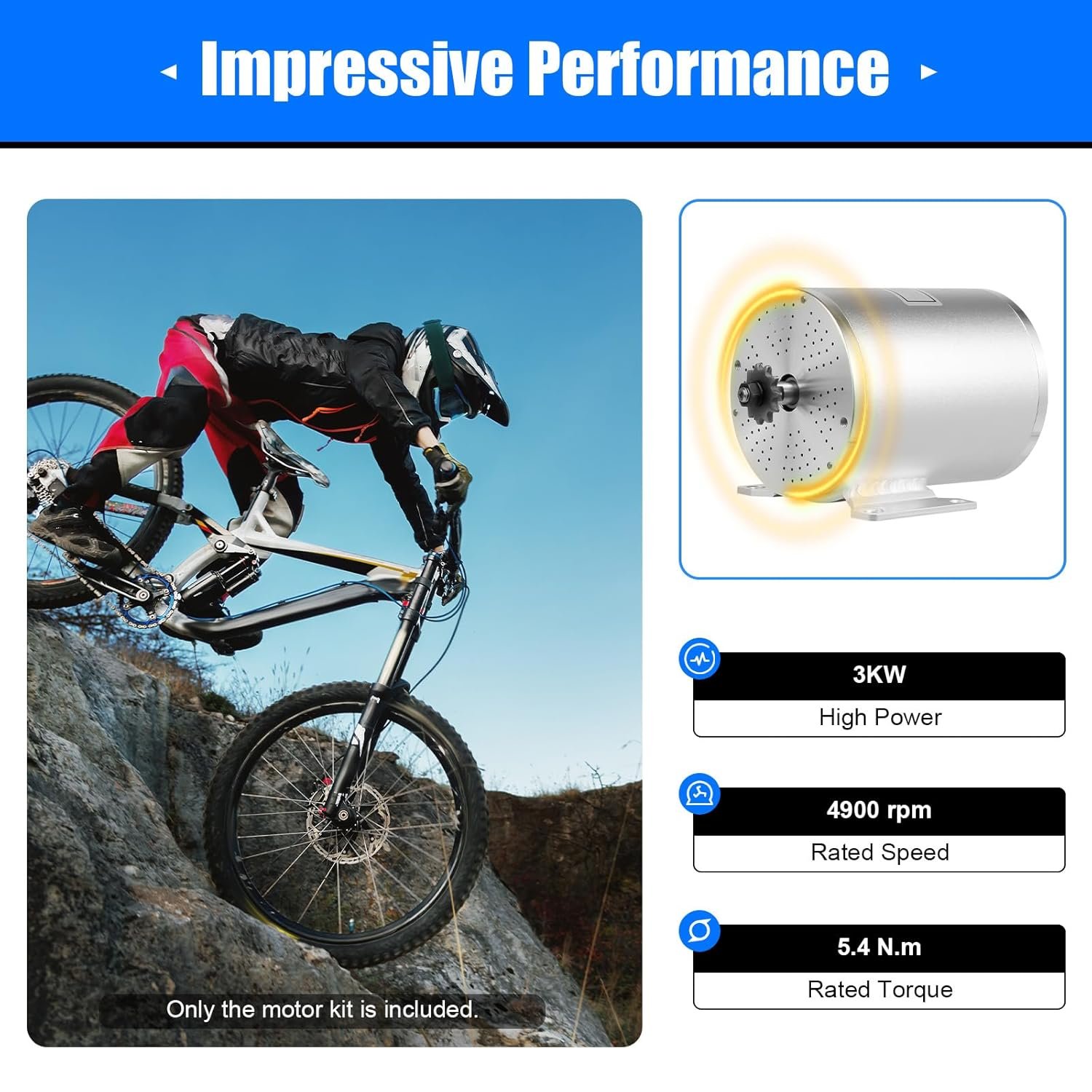

EXCELLENT PERFORMANCE: The e-bike conversion kit adopts high power (3KW), which can provide 4900 rpm rated speed and 6000 rpm no-load speed, just like traveling in the time and space tunnel intertwined with science and technology and speed, which perfectly interprets the aesthetics of speed.

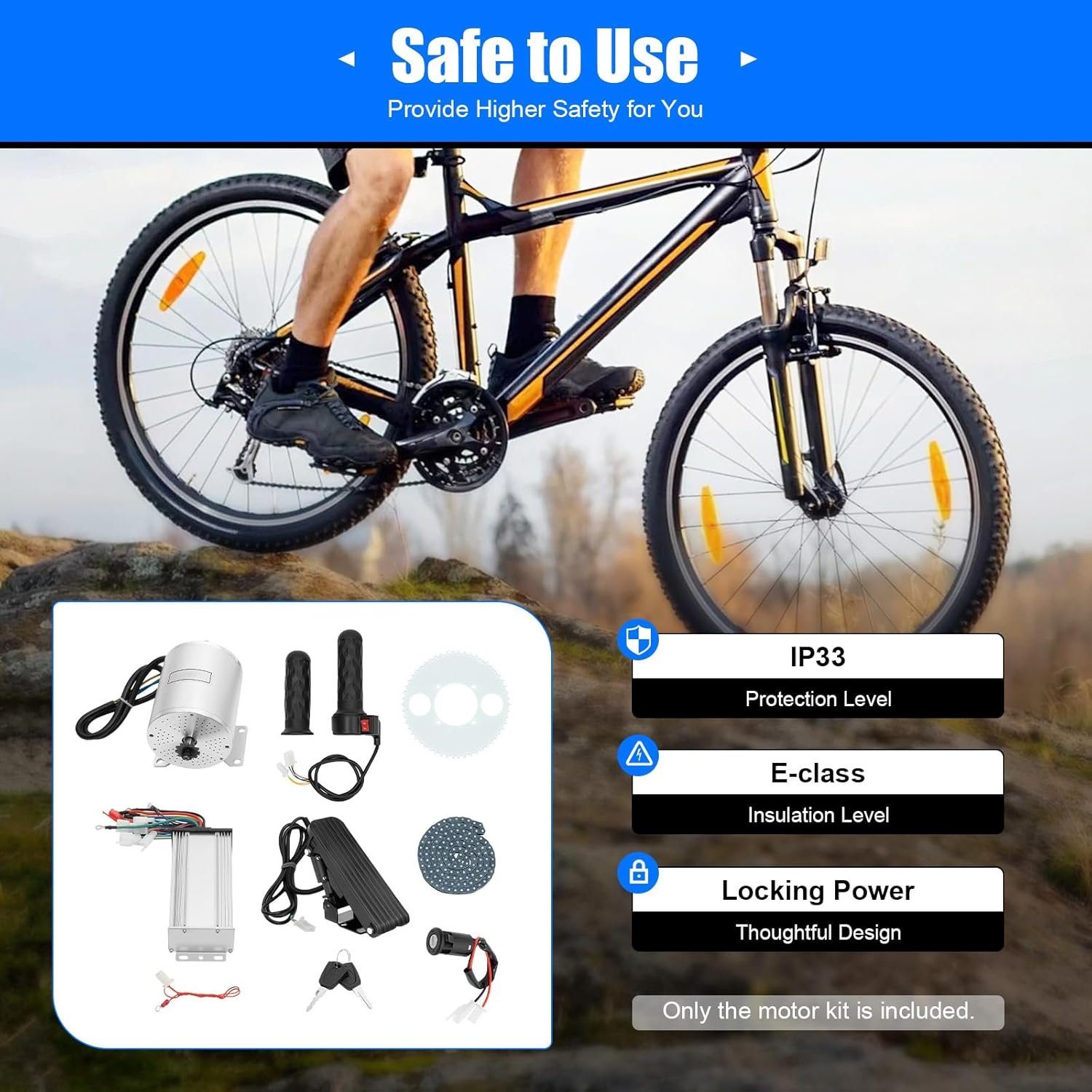

SAFETY OF USE: The e-bike conversion kit is IP33 rated, E-rated and has a power-locking design. It provides you with a higher level of safety even in outdoor activities where the environment is a bit harsh.
INCREASED EFFICIENCY: Brushless motors are more energy efficient (≥ 80%) than brushed motors, converting more electrical energy into mechanical energy, resulting in longer range and more efficient use. The package includes a foot gas pedal and a set of forward/reverse handles. You can choose any one of them as your speed control throttle to help you realize free speed control and meet your different needs.

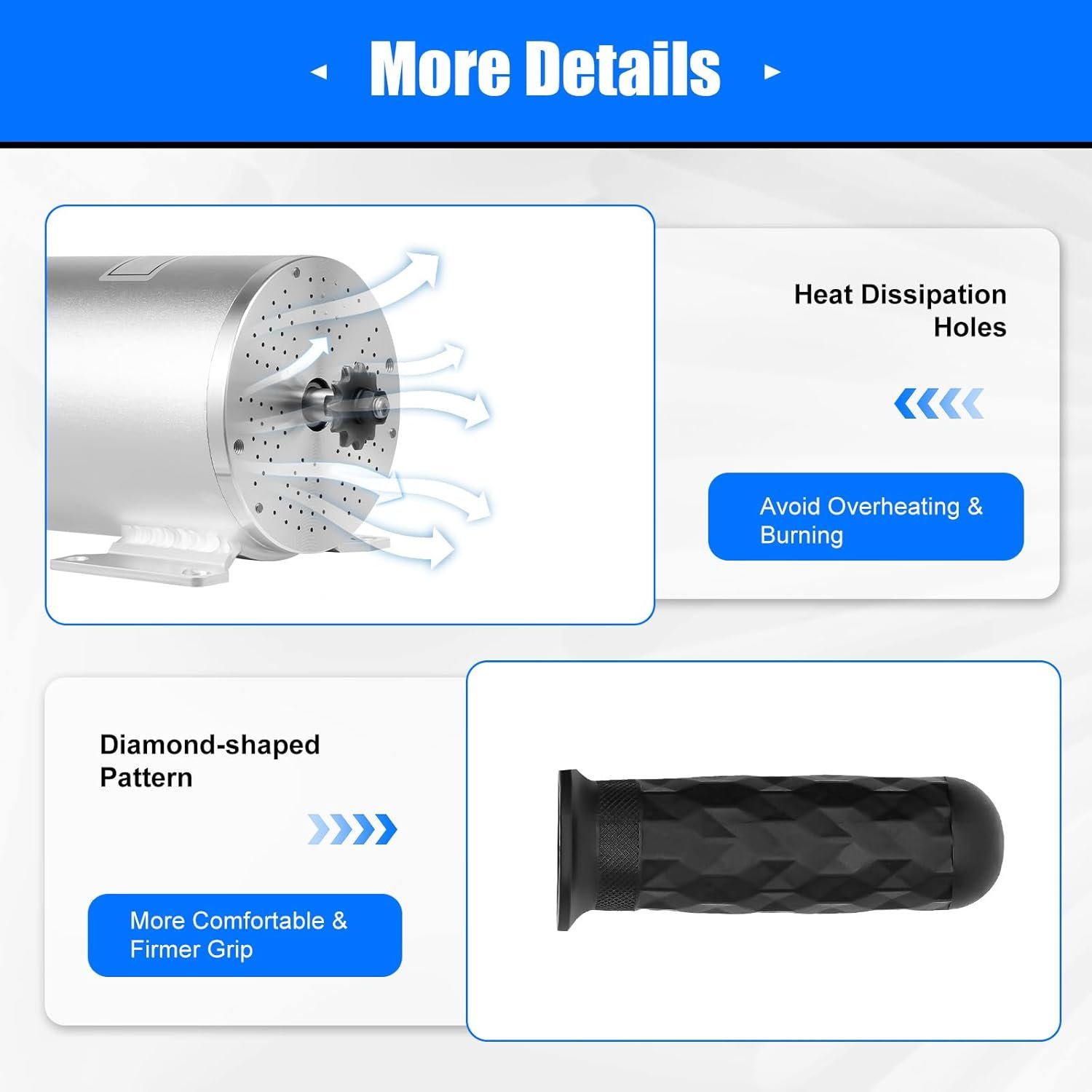

EASY TO CARRY: The motor is lightweight (14.2 lbs) and small (4*5.2 inches), so you can easily carry it to any location and save time and energy. Heat sinks located on both sides of the motor can prevent the motor from overheating during operation without burning out. The pattern on the handlebar can effectively enhance the friction and make the grip more comfortable and firm.
