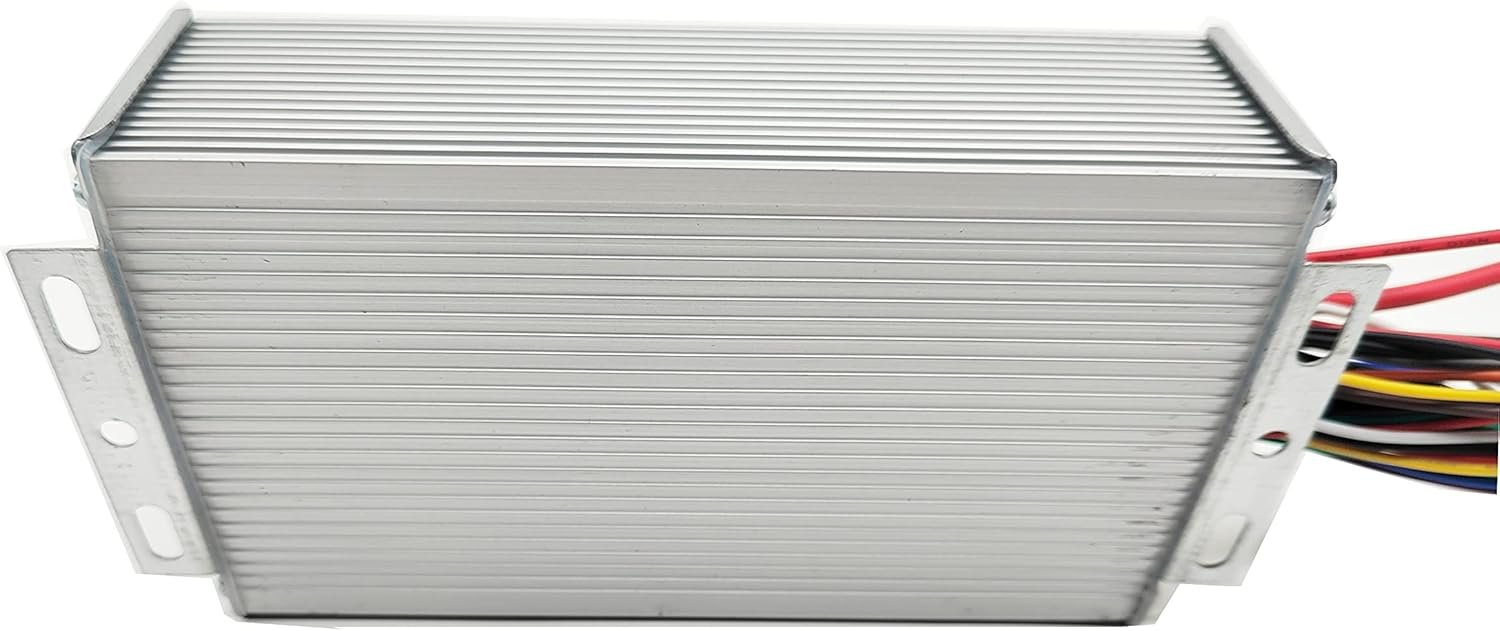

Electric Bike E-Scooter BLDC Motor 36V-48V 500W Brushless Controller Square Wave

Price: $22.00
(as of May 06, 2025 01:49:57 UTC – Details)

36V-48V 500W brushless controller function：
Rated Voltage: 36V/48V
Low Voltage : 31V/42V±0.5V
Rated Power: 500W
Limit Current: 31A
1. instrumentation line
（There are two instrument wires, one is suitable for pointer type instrument (green wire), and the other is suitable for liquid crystal type instrument (purple wire), choose wiring according to different instruments）
2. motor line
3. battery line
4. electric lock line
5. hall line
6.self-learning line
7. low brake
8. high brake line
9. 3-speed line
10.reverse line
11.throttle line
12. Cruise speed line
13. Anti-theft power line
14. Anti-theft alarm line

1.connect the motor line (color to color）
2. connect the battery line(red:battery + , black:battery-)
3. connect the controller throttle line, electric lock（if throttle not have electric lock, connect controller electric lock to battery+ ）
4.connect the hall line(if motor without hall line, don’t need connect)
5.docking the two self-learning lines, the wheel will forward or reverse.
(1.if wheel forward ,Separate the self-learning line.
2.if wheel reverse, Separate the self-learning line. Docking the self-learning line again
if wheel forward ,Separate the self-learning line.)
6.other functions can be connected as needed.

1. Brushless controller is an electronic device specifically designed for electric scooters or electric bicycles, which can control the speed and direction of scooters.
2. The controller adopts a brushless design, which makes it smoother to use, has higher stability, and has a longer lifespan.
3. Suitable for various brands and models of electric scooters or bicycles, able to meet the different needs of users.
4. This controller adopts advanced technology and has excellent performance and durability, ensuring the safety and stable performance of the brushless motor.
5. There are various models of controllers available on Amazon, and users can choose according to their needs and budget. At the same time, before purchasing, it is recommended that users carefully review the product description and reviews in order to choose a product that meets their needs.
