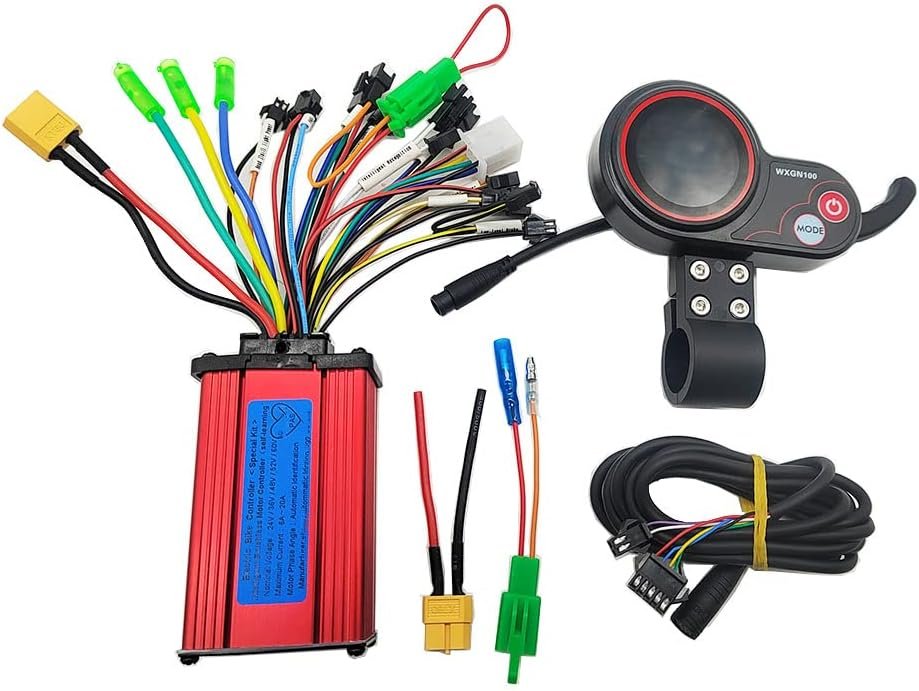

Electric Bike Electric Scooter Intelligent Brushless Square Wave Controller LCD Display 24V 36V 48V 60V 350W 500W Universal XT60

Price: $45.00
(as of Apr 21, 2025 13:15:19 UTC – Details)

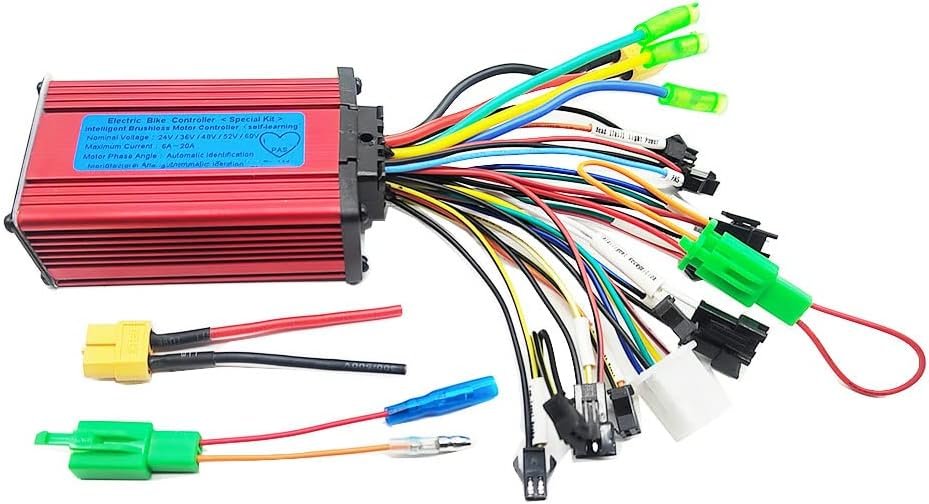

intelligent brushless square wave controller for electric bike/electric scooter/brushless motor
not connect hall wires aslo can work

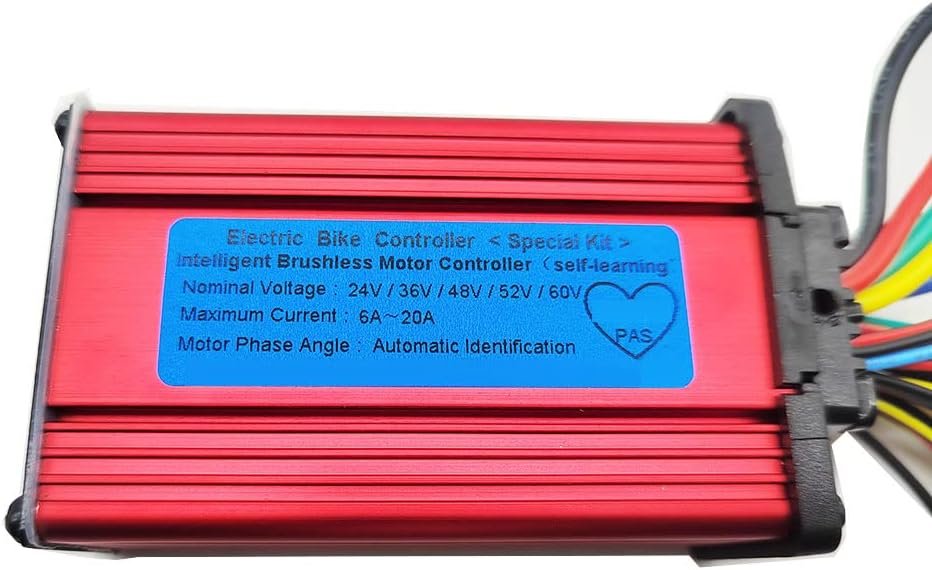

voltage：24V/36V/48V/60V universal
current：6A-20A
number of transistors: 6
rated power：250W-350W all can work

1.low level brake
2.PAS (pedal assist)
3.brake light power
4.hall
5.reverse gear
6.intelligent recognition
7.linear brake（Thumb brake）

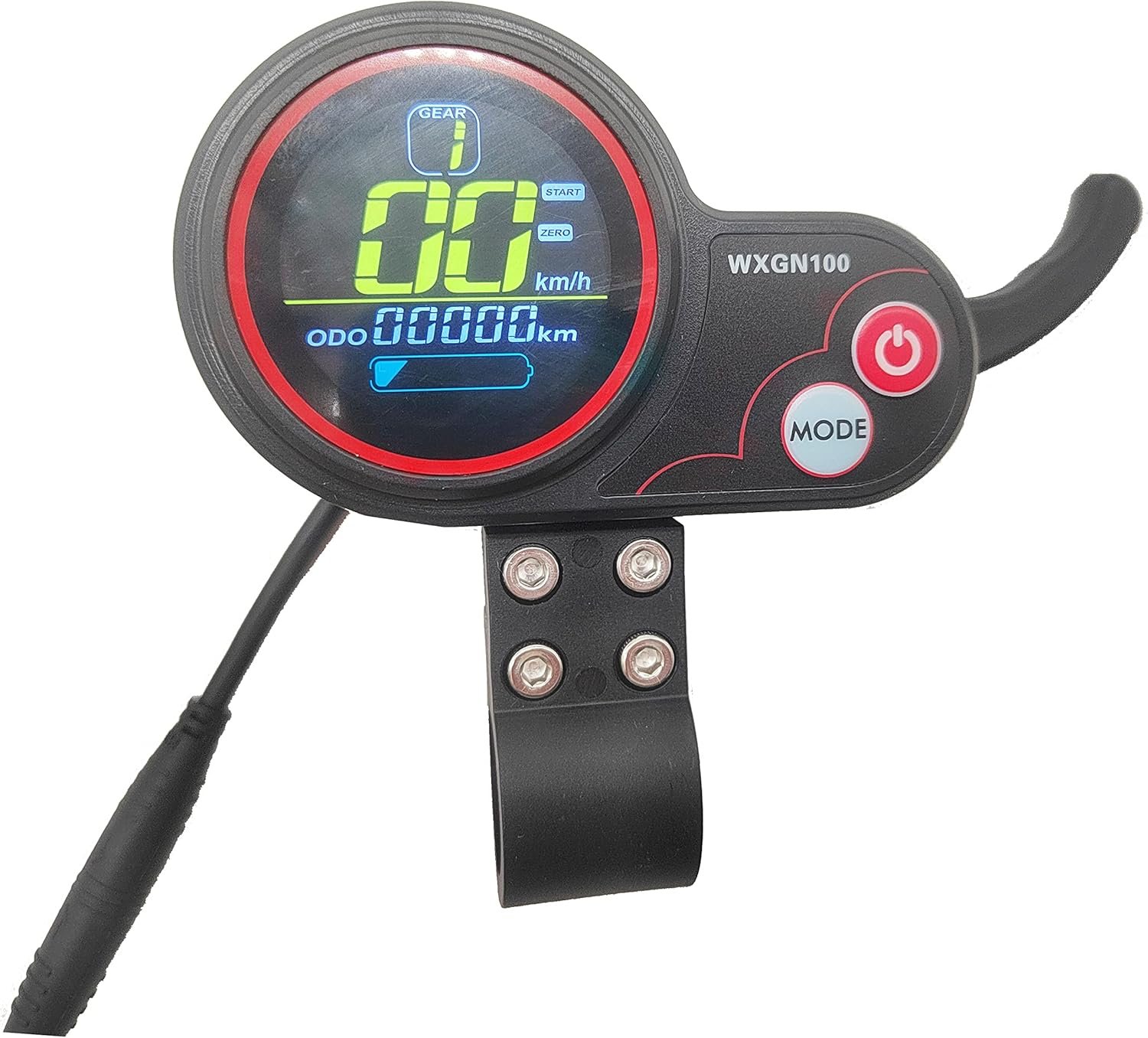

8.LCD
9.electric door lock
10.head light/tail light
11.phase line
12.battery

how to connect ？
1.connect the phase line color to color connection
2. connect the battery line(red wire :battery + , black:battery-)

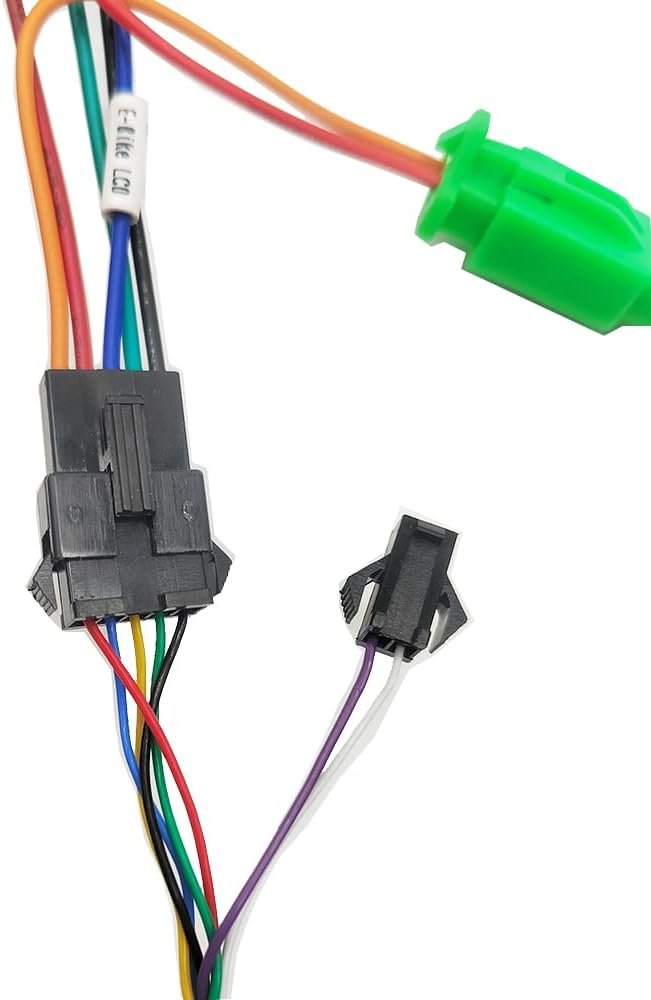

3. connect the controller LCD line,connect electric door lock
4. connect the hall line(if motor without hall line, don’t need connect)
5.docking the two intelligent recognition line also call self-learning lines, the wheel will forward or reverse.
(1.if wheel forward ,Separate the self-learning line.
2.if wheel reverse, Separate the self-learning line. Docking the self-learning line again，if wheel forward ,Separate the self-learning line.
3.This function allows the controller to intelligently identify the battery voltage and adjust the rotation direction of the motor）
6.other functions can be connected as needed.

1. The electric scooter bicycle brushless controller and instrument set is an electronic device specifically designed for electric scooters, which can control the speed and direction of the scooter and is equipped with a display instrument, making it easy for users to understand the running status of the scooter.
2. This set adopts a brushless design, making it smoother to use, more stable, and has a longer lifespan.
3. This set is suitable for various brands and models of electric scooters and bicycles, and can meet the different needs of users.
4. This controller adopts advanced technology and has excellent performance and durability, ensuring the safety and stability of the scooter.
5. This set is available in various models and prices on Amazon, allowing users to choose according to their needs and budget. At the same time, before purchasing, it is recommended that users carefully review the product description and reviews in order to choose a product that meets their needs.
