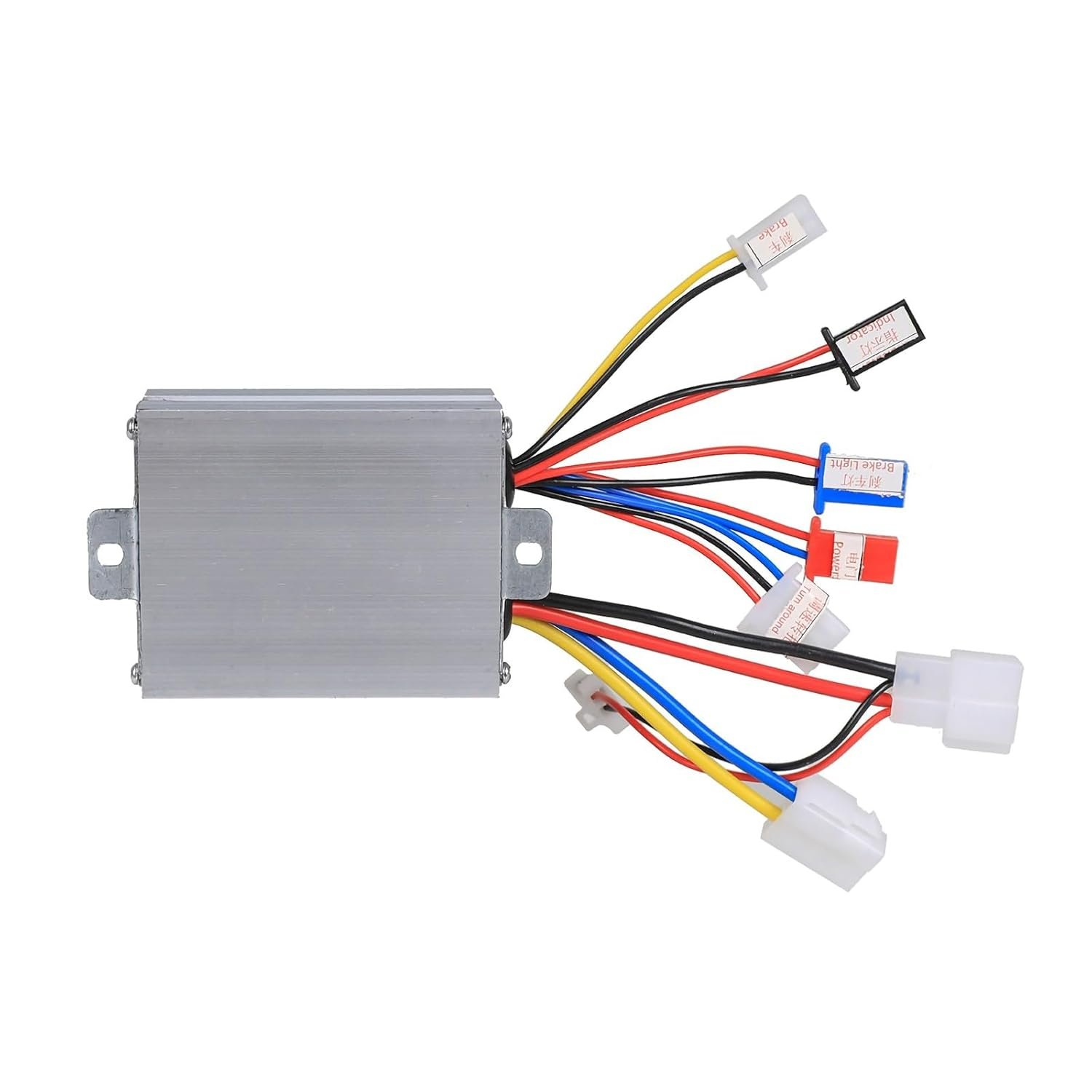

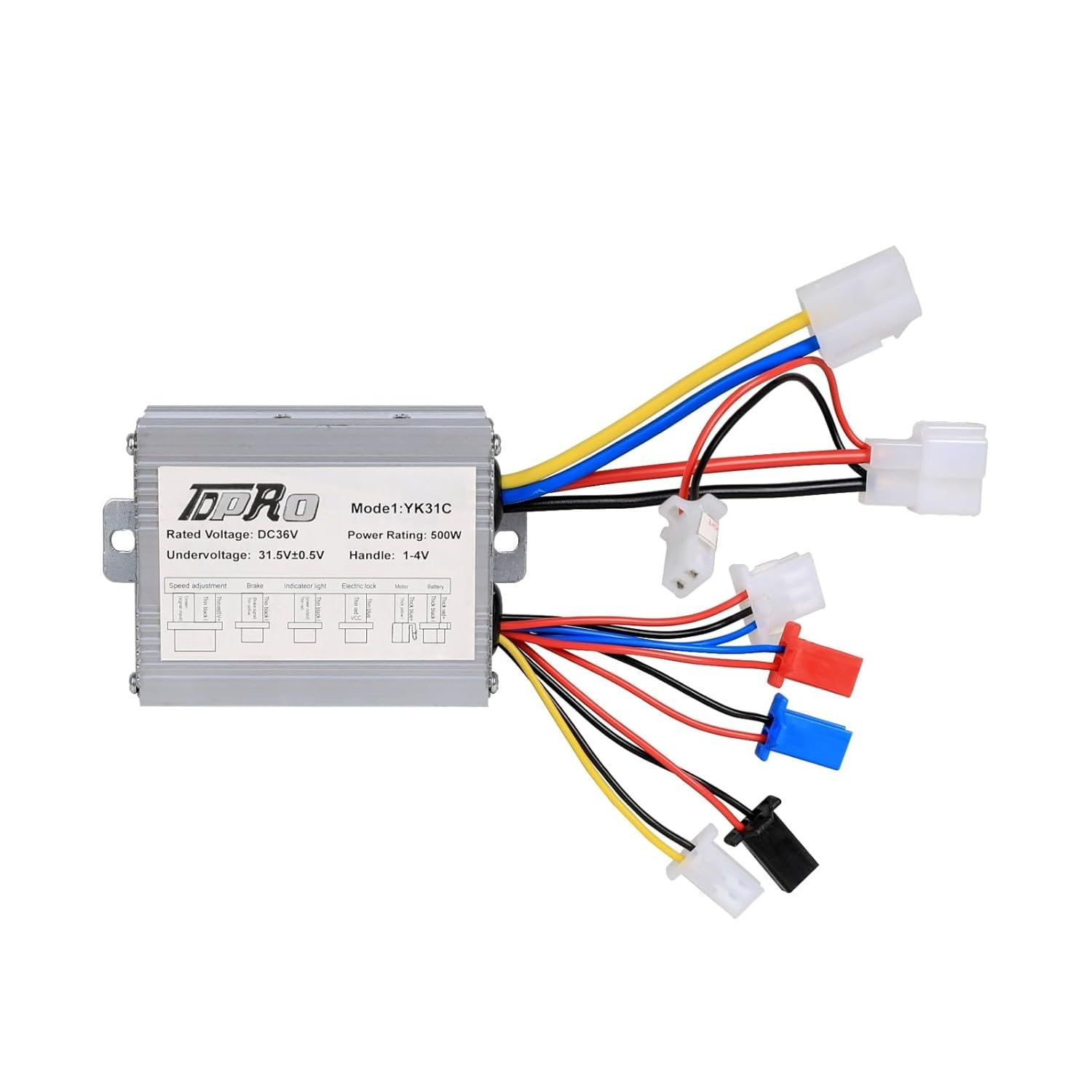

Motor Speed Controller 36V 500W Brush Motor Driver Control with Throttle Grip for Electric Scooter Bicycle E-Bike Tricycle

Price: $22.99
(as of Feb 10, 2025 23:43:33 UTC – Details)

Specifications:

Rated voltage: 36 V DC

Rated current: 27±1A

Match motor: 36V 500 W

Conversion efficency: 95%

Under Voltage Protection: 31.5±0.5V

Speed regulator (throttle): 1-4 V

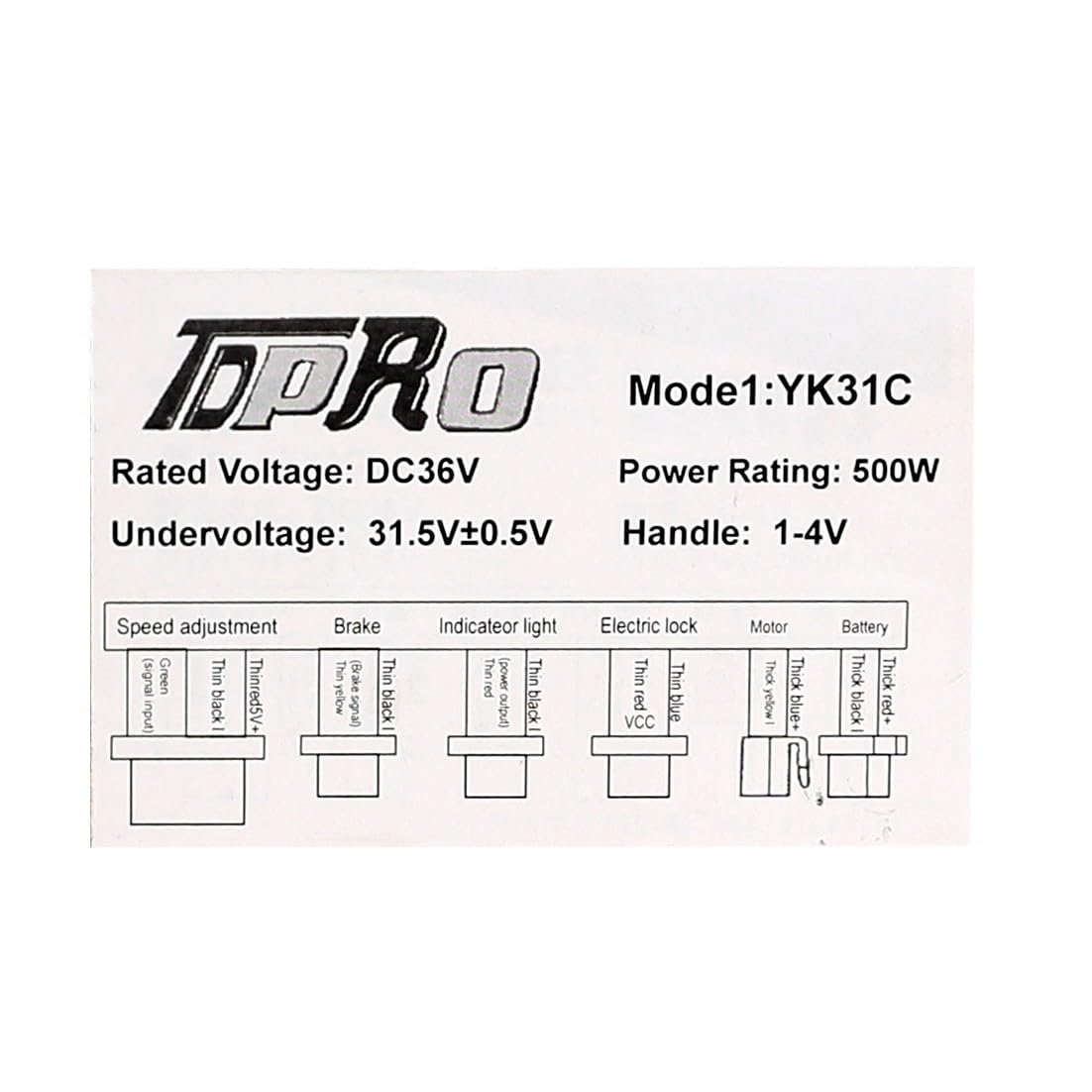

Wiring:

This controller has 8 connectors, compatible with many 36V bikes with up to 500W motors.

1. Battery / 2. Motor / 3. Brake / 4. Brake light / 5. Indicator light / 6. Ignition lock / 7. Charger port / 8. Derailleur (throttle)

These controllers have 4 groups neccessary cables: Battery, Motor, Ignition lock, Derailleur (throttle), when hook up these 4 groups cables, the E-bike can run normally.

Besides, this controller have other optional functions, you can hook them up according to your applications.

Available Model (SPEC):

24v 250w / 24v 350w / 24v 500w / 36v 350w / 36v 500w / 36v 800w / 48v 100w
Item model number ‏ : ‎ TD031-1
Date First Available ‏ : ‎ August 27, 2023
Manufacturer ‏ : ‎ WPHMOTO
ASIN ‏ : ‎ B0CGPP7SJQ
Country of Origin ‏ : ‎ China

Fit for 36v 500w brushed motor
Universal 36 volt 500 watt brushed controller
Suitable for electric scooter, e-bike, tricycle, mini bike, pocket bike, go kart, atv, moped
Refer to picture and below “Product Description” for wiring instruction and specifications
