Price: $47.99
(as of Feb 11, 2025 23:44:33 UTC – Details)
Description
An efficient machine can facilitate your outdoor work and increase your productivity. This high-quality gear motor can be used in many areas. It features copper wire coils to ensure smooth and energy-efficient operation. Its power is 250W, torque is 1N, and adjustable speed is 0-300rpm, which can meet your different working needs. It is a reliable motor you don’t want to miss!
Details
Copper Coil: We use a pure copper coil with low-temperature rise and high-temperature resistance, which can ensure stable output.
Smooth Edges: They not only enhance the aesthetics of the product but also improve safety during use.
Specifications
Moder: MY1016Z
Material: Iron, Copper
Surface Treatment: Spray Molding
Style: Modern
Color: Silver, Black
Mount Type: Free Standing
Power Source: Corded Electric
Motor Type: Brushed DC Motor
Output Power: 250W
Raterd Speed: 2750rpm
Rated Torque: 1N
Speed Adjustment Range: 0-300rpm
Power Cord Length: 40cm/15.75in

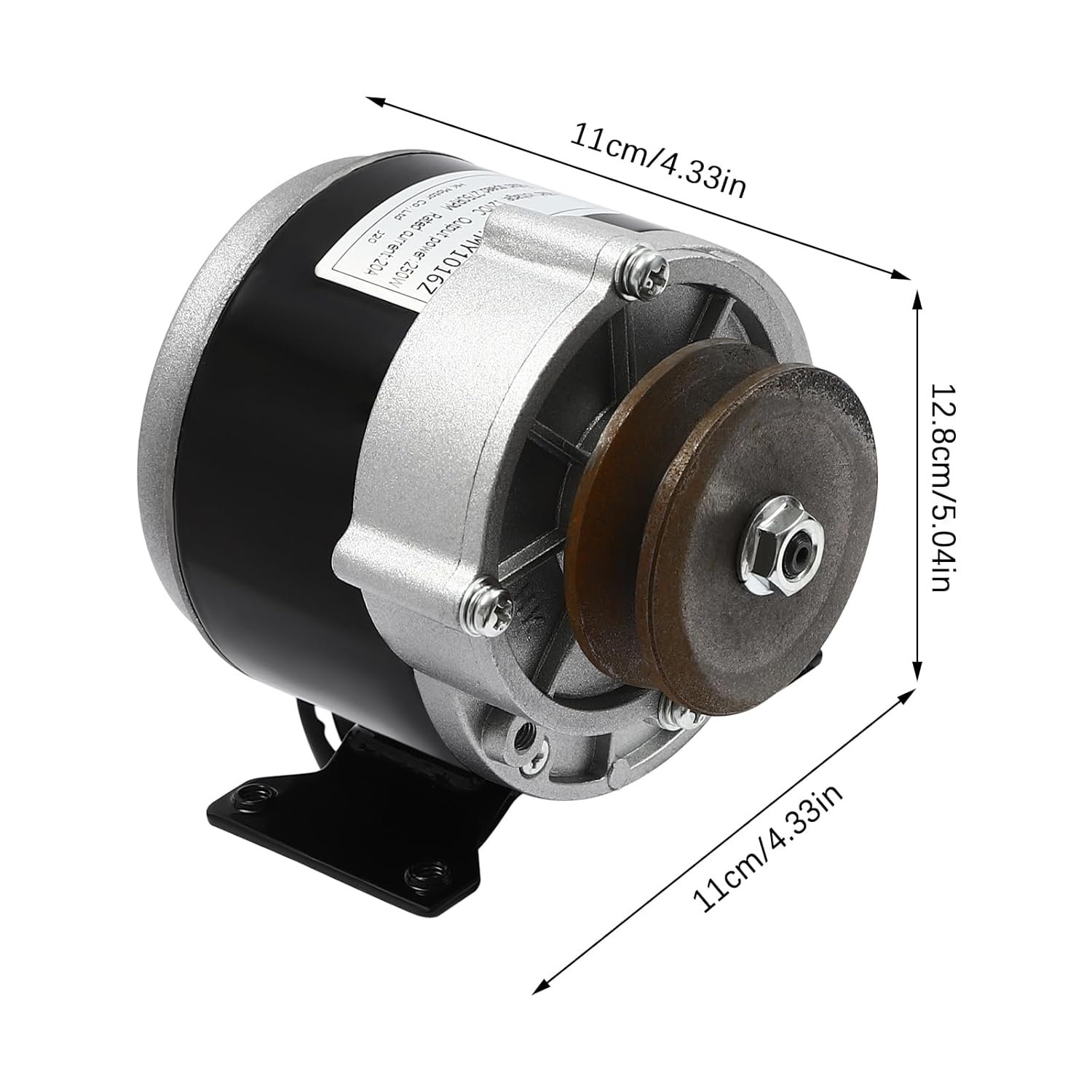

Product Size: 11*11*12.8cm/4.33*4.33*5.04inch
Mounting Hole Distance: 9.5*4.2cm/3.74*1.65inch
Gross Weight: 3kg/6.61lbs
Net Weight: 2.5kg/5.51lbs
Package Size: 30*20*20cm/11.81*7.87*7.87in
JZ8VVM-000500ND
Rated Voltage: 12VDC
Rated Current: 20A
JZ8VVM-000400ND
Rated Voltage: 24VDC
Rated Current: 14A
JZ8VVM-000600ND
Voltage: 36V
Rated Current: 10A
Package Included
1*Gear Motor
Item model number : YIYIBYUS
Date First Available : May 8, 2024
Manufacturer : YIYIBYUS
ASIN : B0D3LJH9YS
Country of Origin : China
【Sturdy and Durable】: Superb iron, copper, and spray molding process make the product have abrasion resistance, and oxidation resistance, which can ensure long service life.

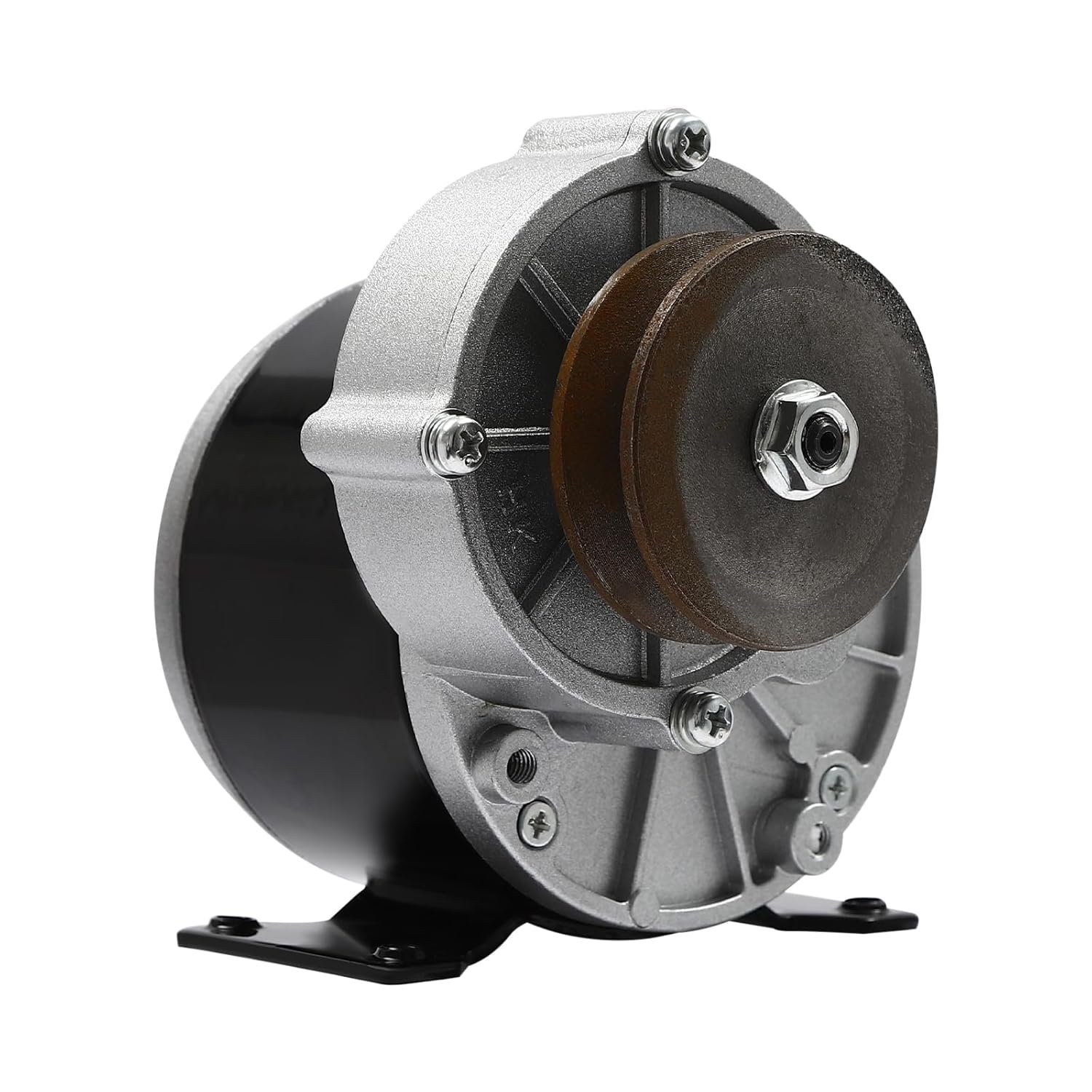

【Belt Pulley Design】: The design of the belt pulley cleverly applies the principle of friction transmission to transfer the strong power generated by the high-speed operation of the motor to the downstream equipment through the flexible belt medium, which realizes the optimal deployment of speed and torque.
【Good Performance】: Our brushed DC motor runs at up to 250W and 2750rpm, which minimizes energy consumption, makes the machine run smoothly, saves power, and improves efficiency.
【Easy to Move】: The small size ( 4.33*4.33*5.04inch) and lightweight (5.51lbs) of this geared motor make it very convenient to change the working position.
【Application】：It is suitable for scooters, e-bikes, electric cars, tricycles, scooters, seeders, etc.
